Check Open In Signal Circuit
- IG key OFF.
- Disconnect 'CRUISE REMOCON SWITCH' connector and Cluster connector.
- Measure resistance between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Signal (Cruise sw)' terminal of PCM connector.
Specification : Below 1.0Ω
For 2012

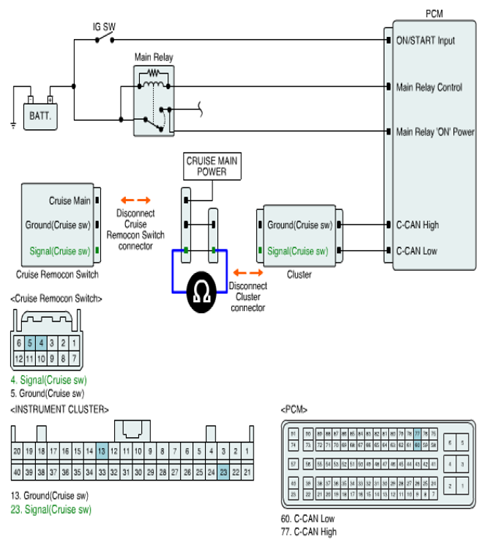

Fig 1: Measuring Resistance Between 'Signal (Cruise Sw)' Terminal Of 'Cruise Remocon Switch' Harness Connector & PCM ConnectorCourtesy of KIA MOTORS AMERICA, INC.
For 2013 refer to ETM
- Is the measured value within specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Repair open between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Signal (Cruise sw)' terminal of PCM connector, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
