Optima LX, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views (Main Harness) - 2.4L Except HEV
>>
Connector End Views
>>
A/C Control Module (Manual) Connector End View (M22-B)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
A/C Control Module (Manual) Connector End View (M22-B)

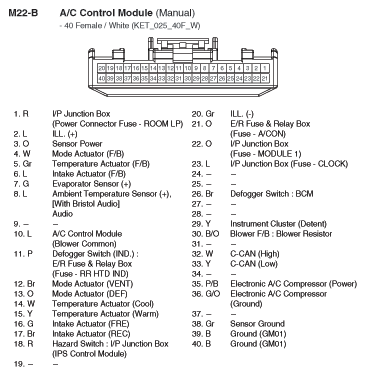

Fig 1: A/C Control Module (Manual) Connector End View (M22-B)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
