Glove Box Lamp Control

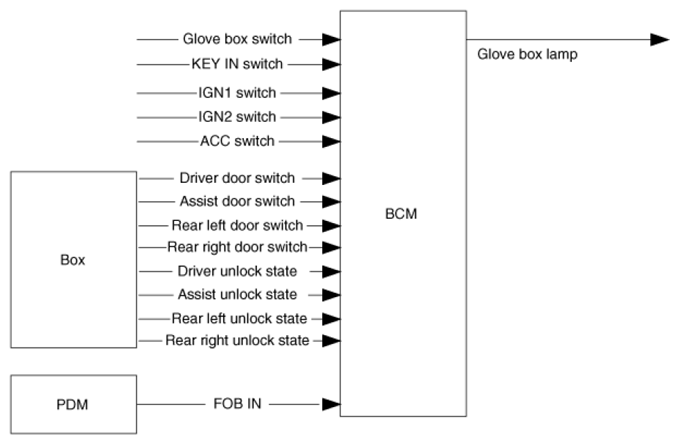

Fig 1: Glove Box Lamp Control Function Chart
G07380741Courtesy of KIA MOTORS AMERICA, INC.
  1. If GLOVE BOX is OPEN, LAMP is turned ON for 15 min.
    1. state behavior by the conditions during the KEY IN OFF->ON to timer Reset does not.
