Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the cluster fascia panel.
Refer to "CRASH PAD ".
Disconnect the connector (A).

Fig 1: Identifying Start/Stop Button
Courtesy of KIA MOTORS AMERICA, INC.
Remove the start/stop button (A) after loosening the mounting 3 screws.

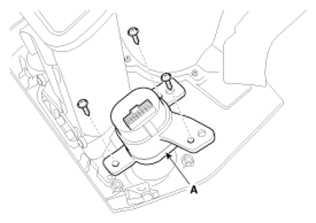

Fig 2: Identifying Start/Stop Button & Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
