Wiper & Washer Control: Notes
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

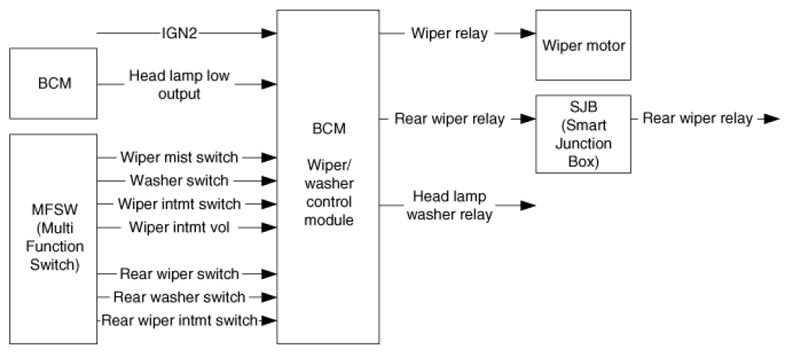

CHARACTERISTIC FUNCTION CHART
| Function | Characteristics | Name | |
|---|---|---|---|
| Hardware Label | Spec. Designation | ||
| Input | Logic | L_IGN2 | Ignition 2 Input |
| L_WiperMistSW | Front Wiper Mist Switch | ||
| L_WasherSW | Front Washer Switch | ||
| L_WiperIntmtSW | Front Wiper Intermittent Switch | ||
| L_RearWiperSW | Rear Wiper Switch | ||
| L_RearWasherSW | Rear Washer Switch | ||
| L_RearWiperIntmtSW | Rear Wiper Intermittent Switch | ||
| Internal | b_HeadLampLowOutput | Head Lamp Low On/Off State | |
| Analog | A_WiperIntmtVol | Front Wiper Intermittent Interval Time Value | |
| Output | Logic | O_WiperRly | Front Wiper Output |
| O_HeadLampWasherRly | Head Lamp Washer Output | ||
| CAN Communication | C_RearWiperRly | Rear Wiper Output | |
