WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

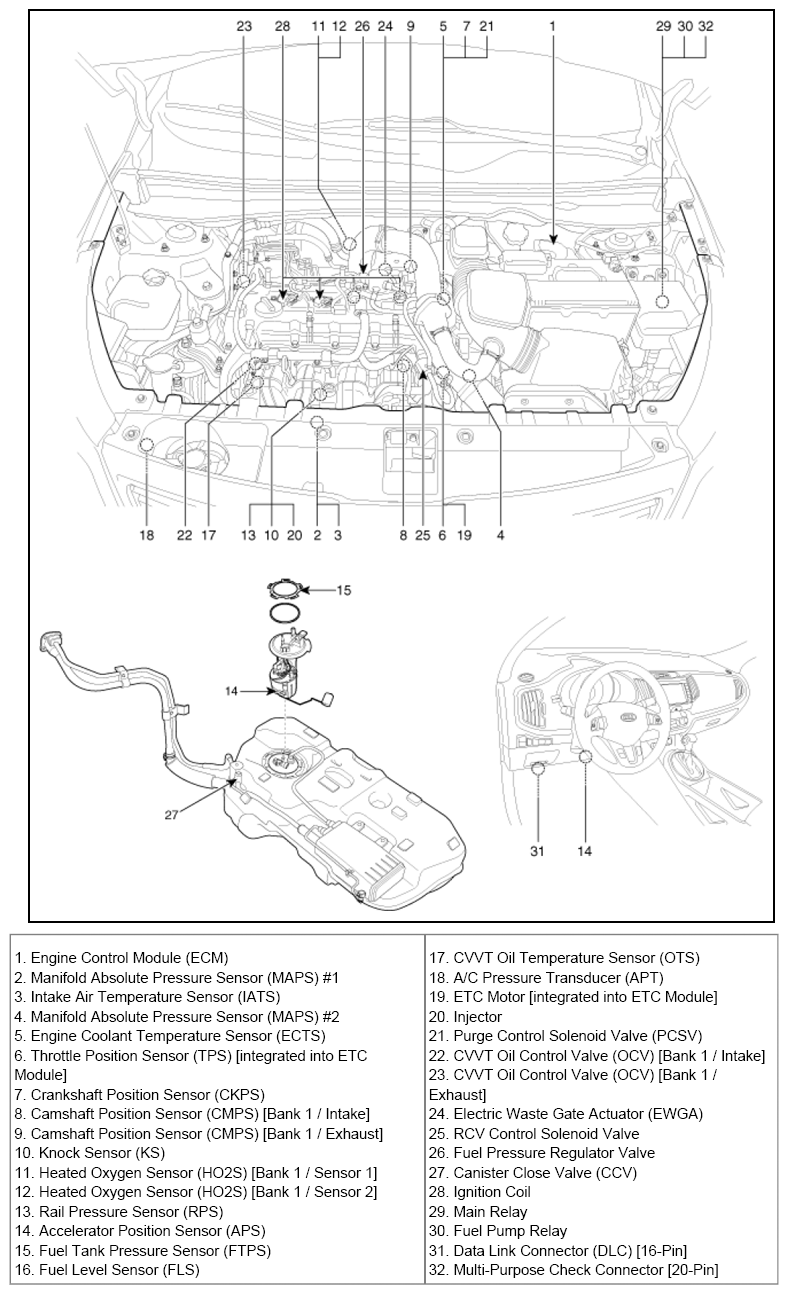

Fig 1: Identifying Engine Control System Components Location (1 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

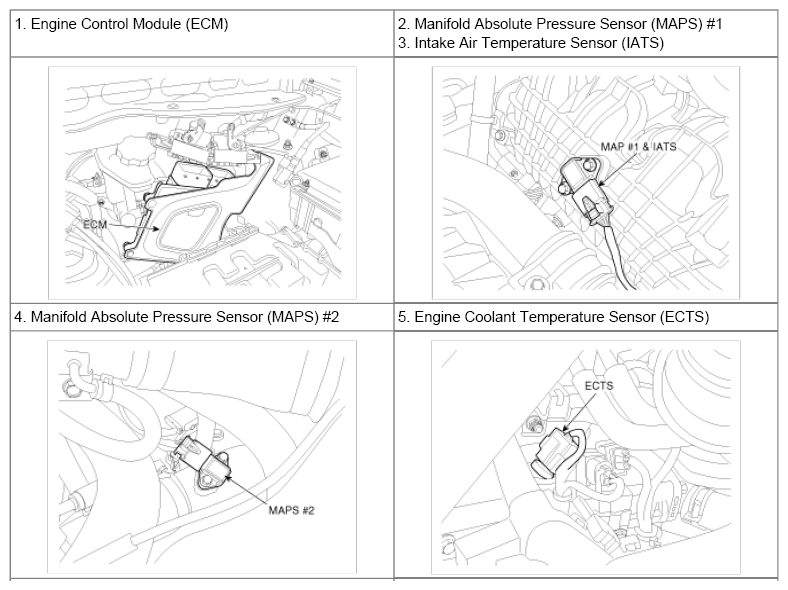

Fig 2: Identifying Engine Control System Components Location (2 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

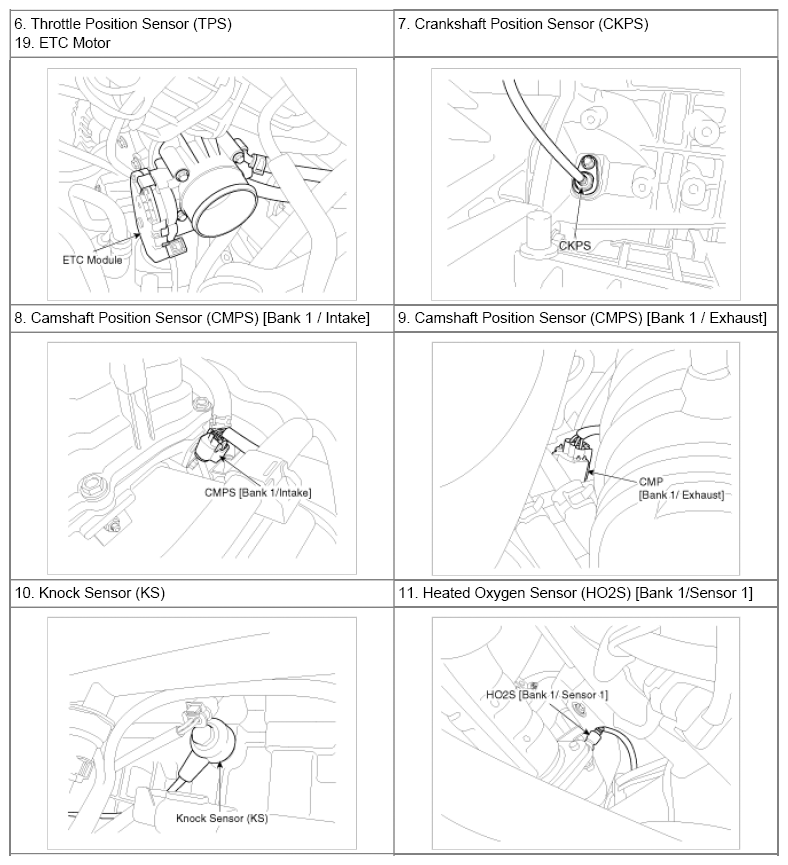

Fig 3: Identifying Engine Control System Components Location (3 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

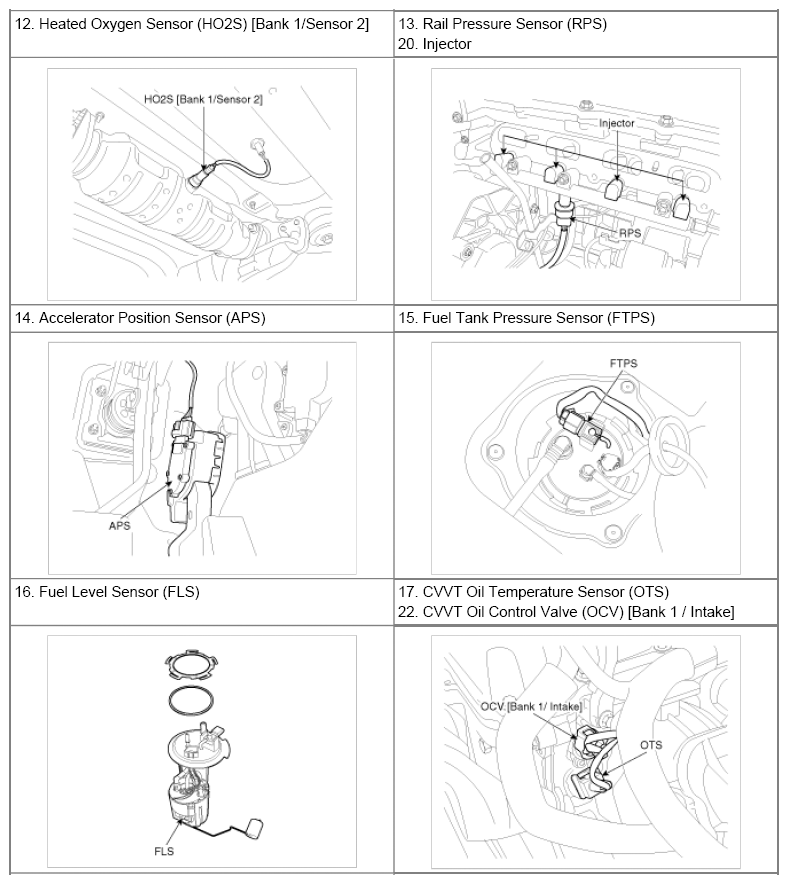

Fig 4: Identifying Engine Control System Components Location (4 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

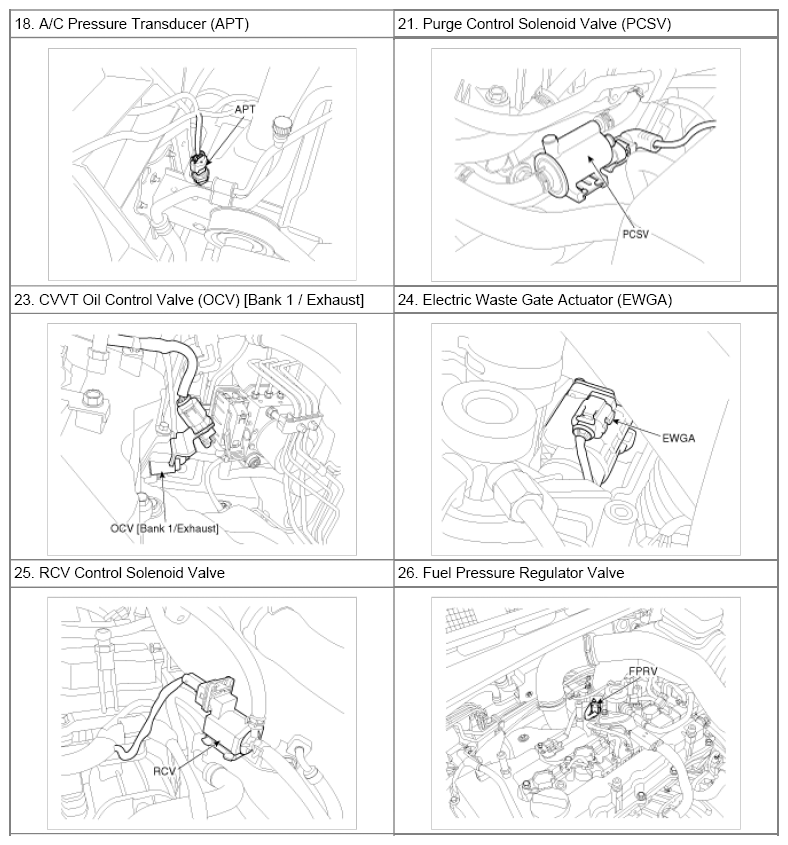

Fig 5: Identifying Engine Control System Components Location (5 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

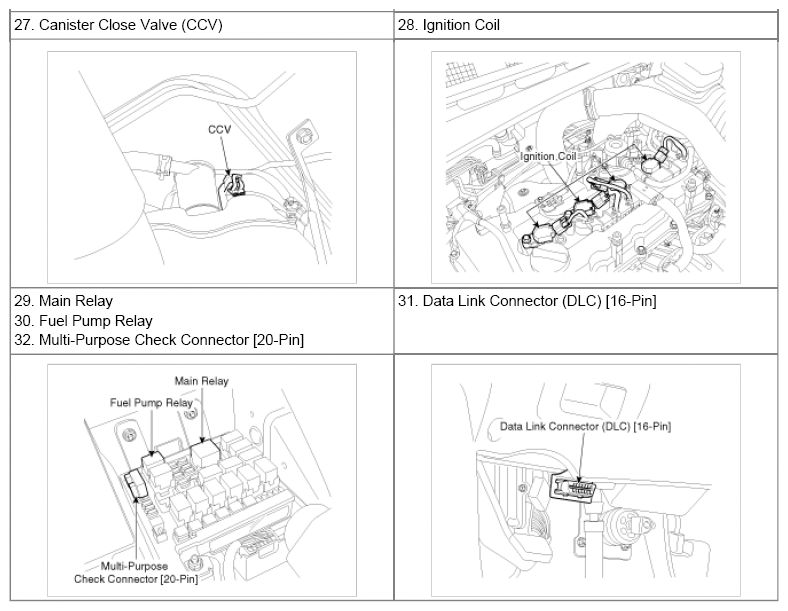

Fig 6: Identifying Engine Control System Components Location (6 Of 6)
