Components Location: Notes

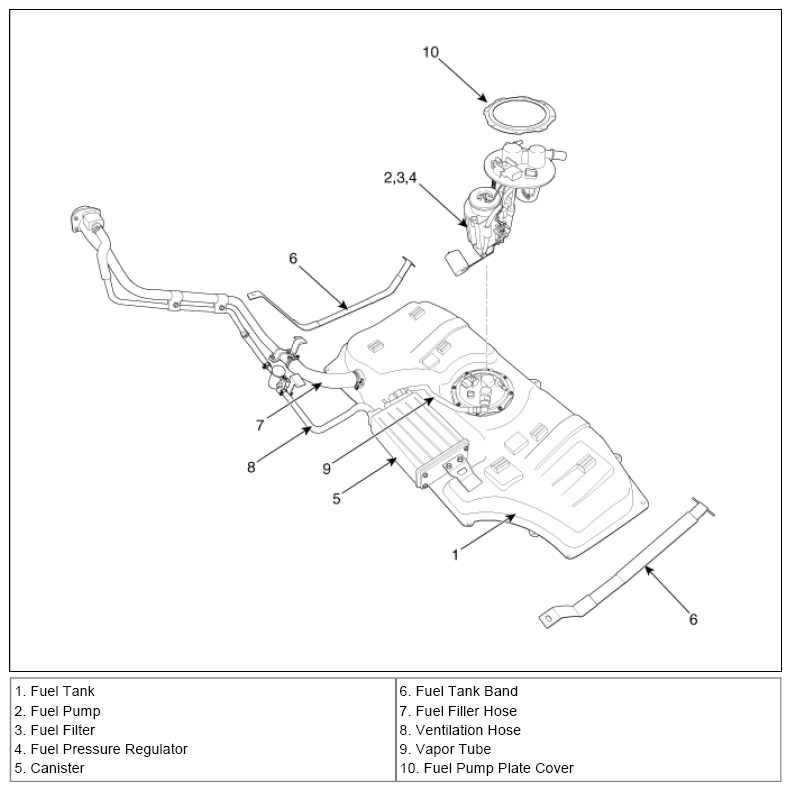

Fig 1: Fuel Delivery System Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
