Diagnostic Circuit Diagram

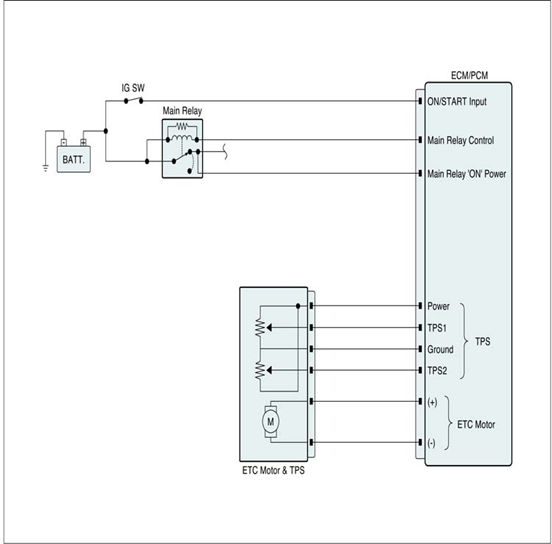

Fig 1: ETC Motor And TPS - Circuit Diagram
G08324556Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Identifying ETC Motor And TPS Connector Terminals
G08324557Courtesy of KIA MOTORS AMERICA, INC.
