M32-B Smart Key Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

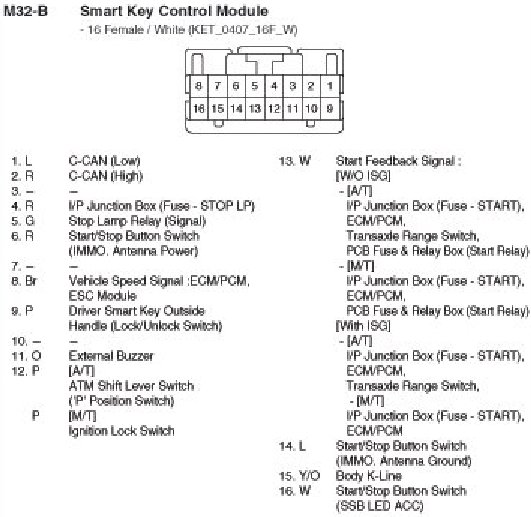

M32-B Smart Key Control Module
M32-B Smart Key Control Module:
