Fogging Sensor: Service and Repair

Inspection

1. Press the MODE switch more then 4 times within 2 seconds while pressing the OFF switch.

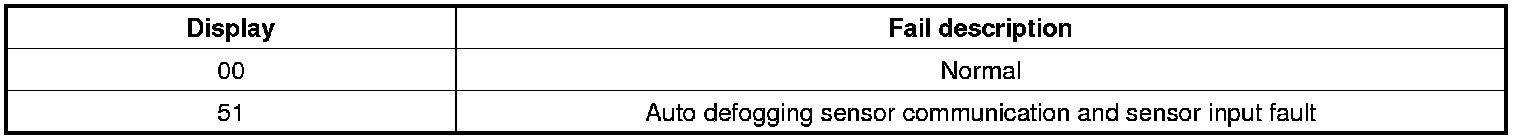

* For diagnostic procedure, refer to DTC guide.

Replacement

1. Remove the auto defogging sensor cover (A).
2. Disconnect the connector (B) and then remove the auto defogging sensor (C).




3. Install in the reverse order of removal.
