Engine Control Module





ECM Terminal And Input/Output signal

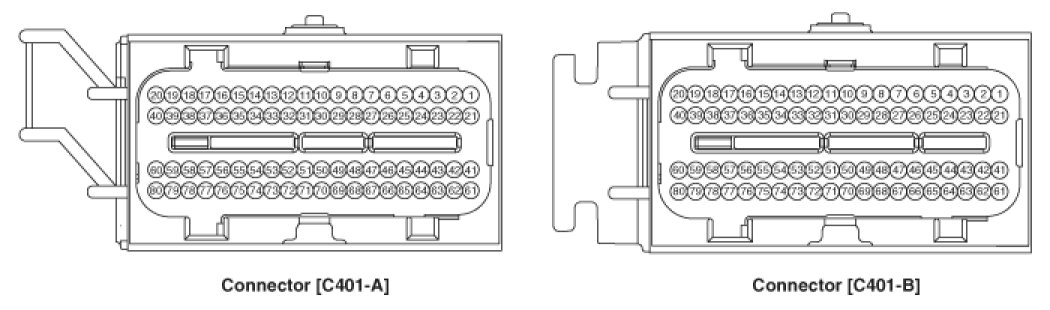

ECM Harness Connector

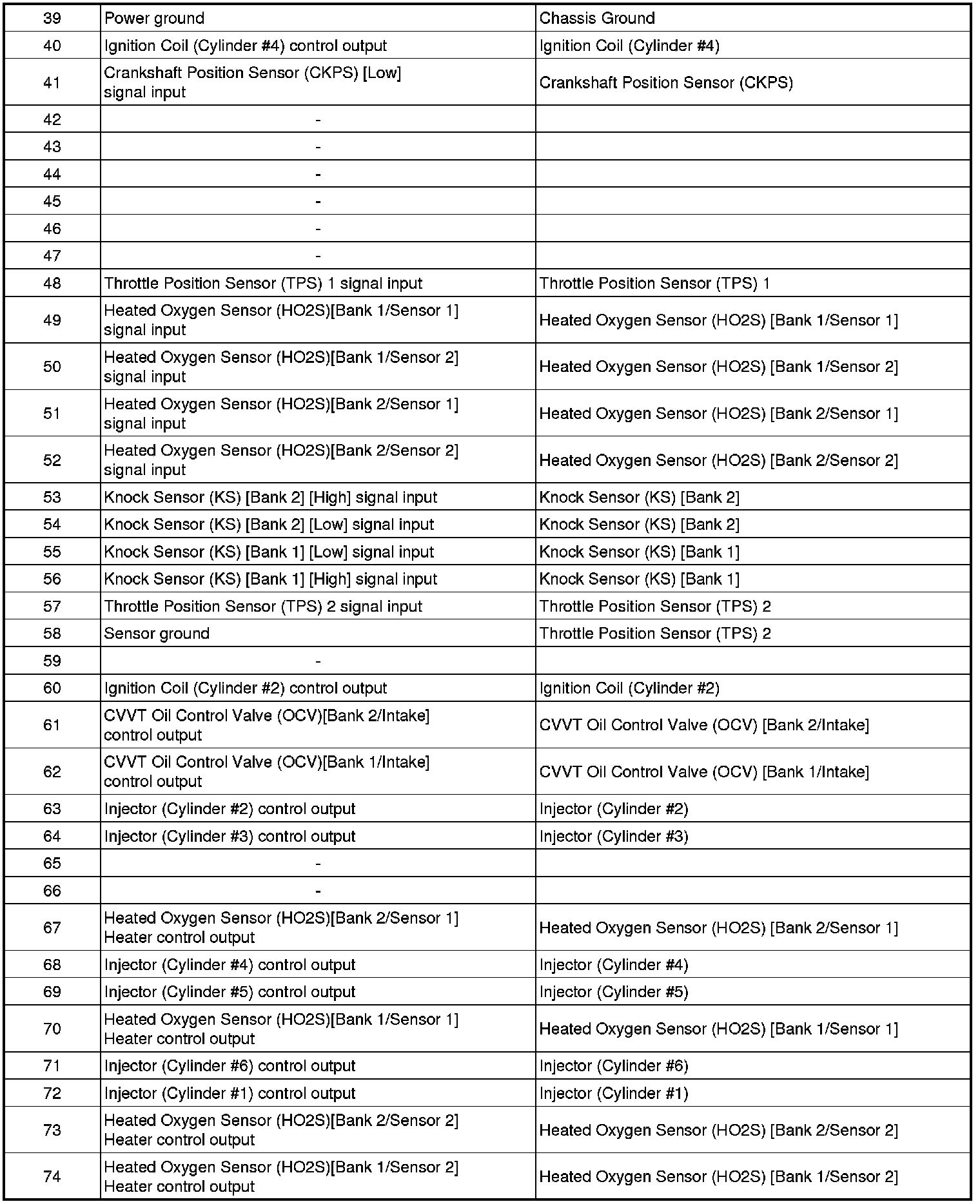

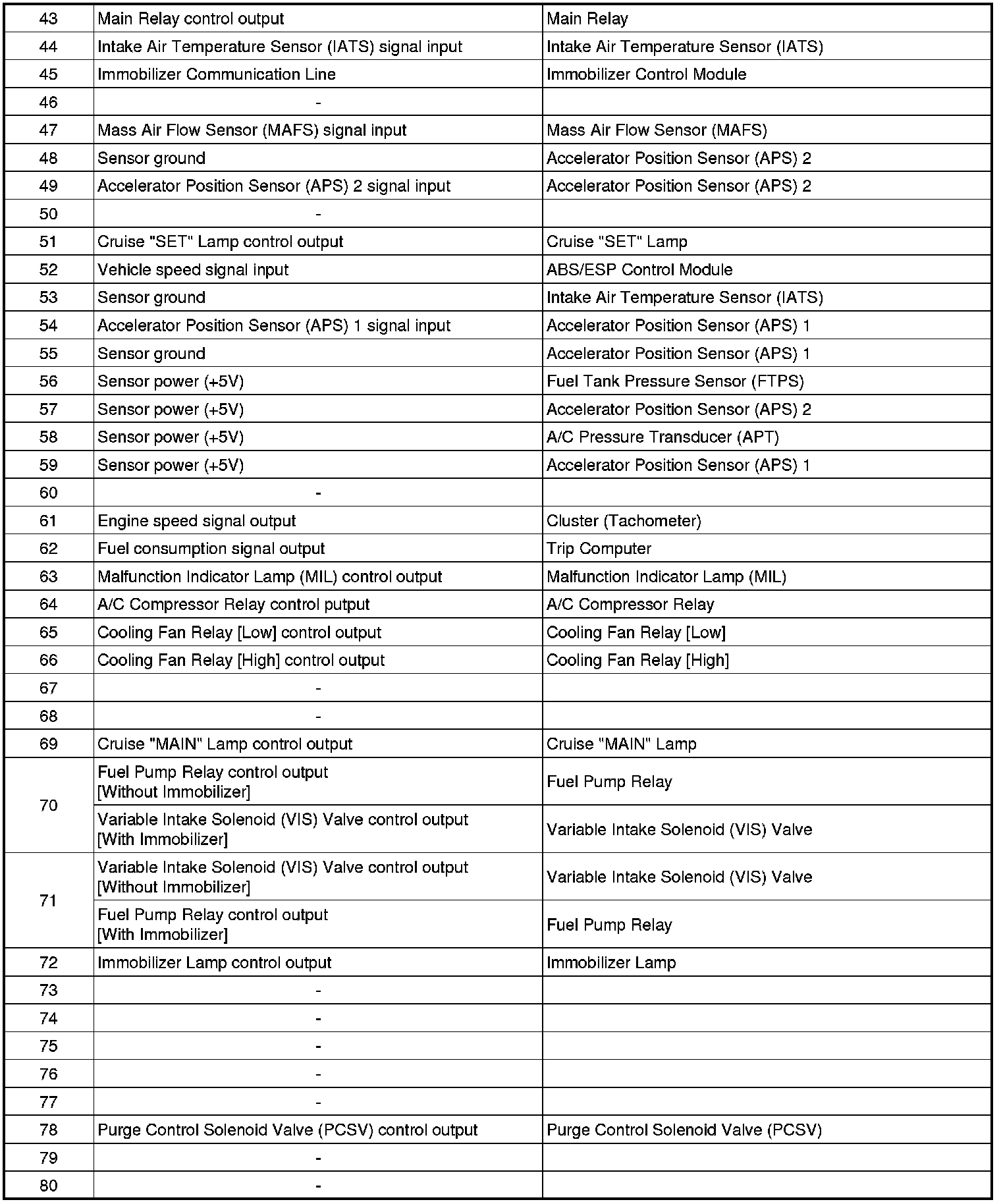

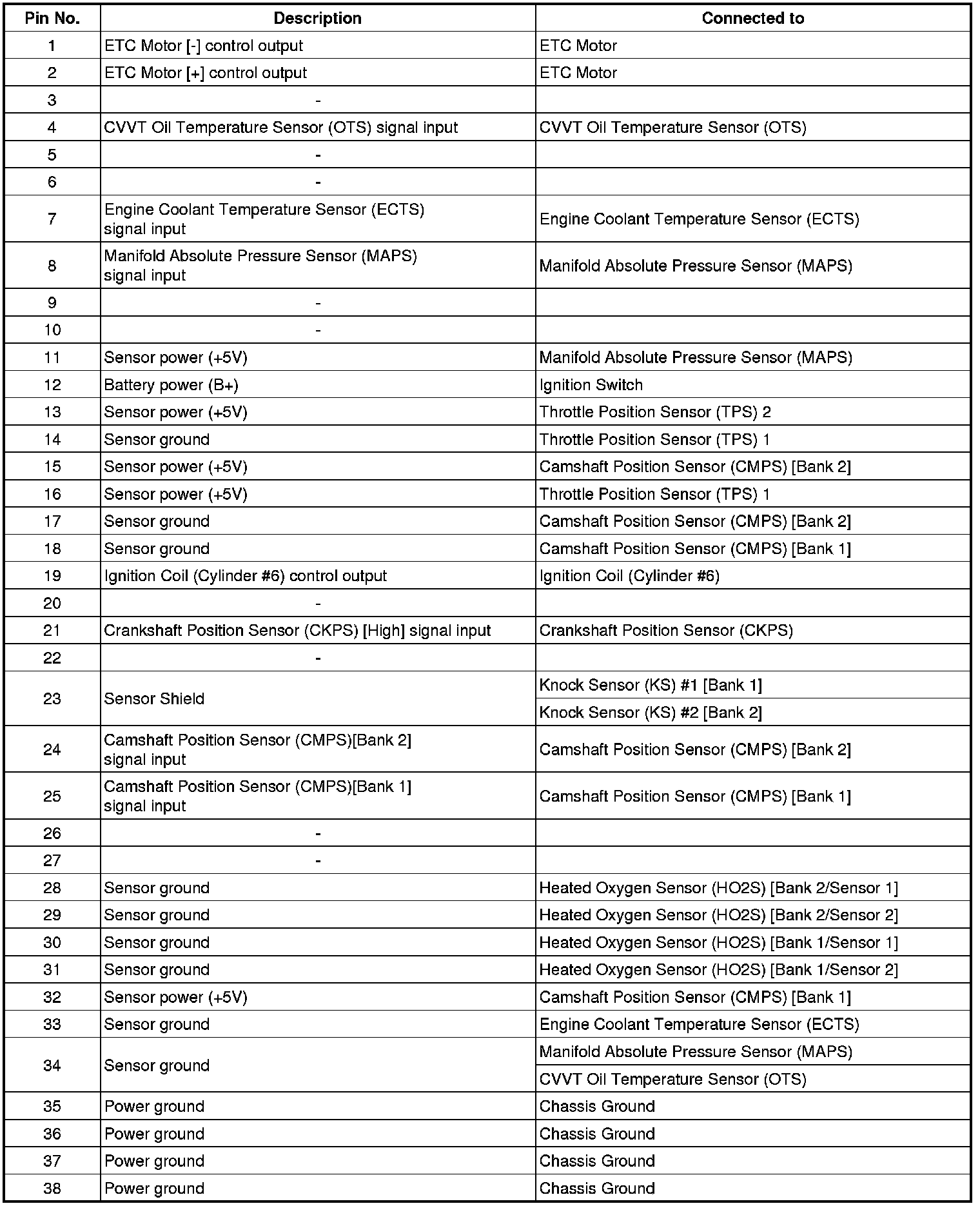

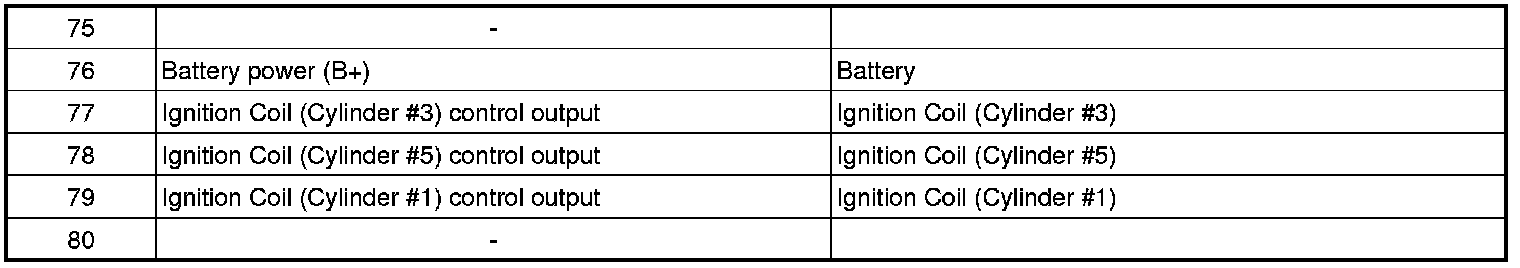

ECM Terminal Function
Connector [C401-A]









Connector [C401-B]

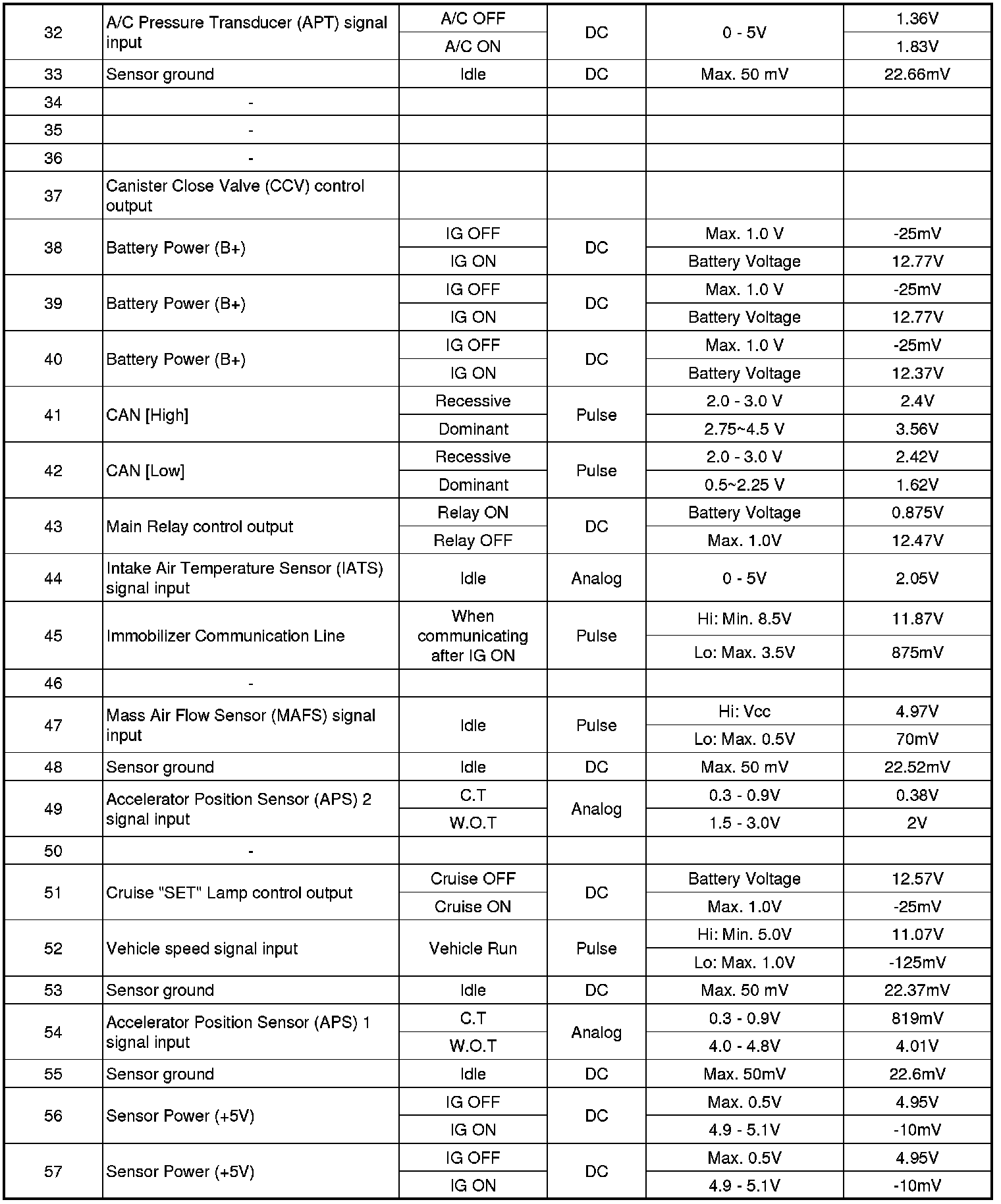

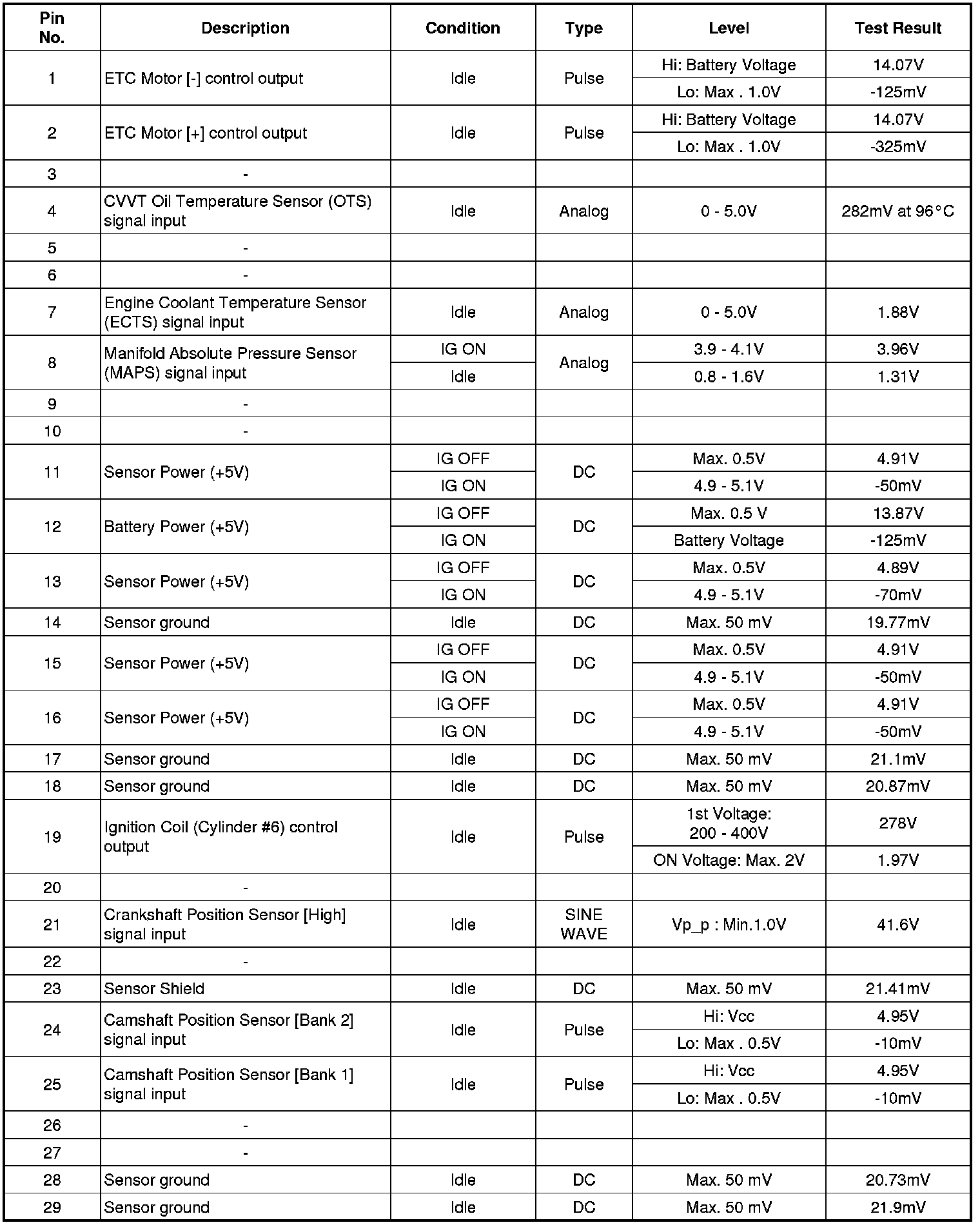

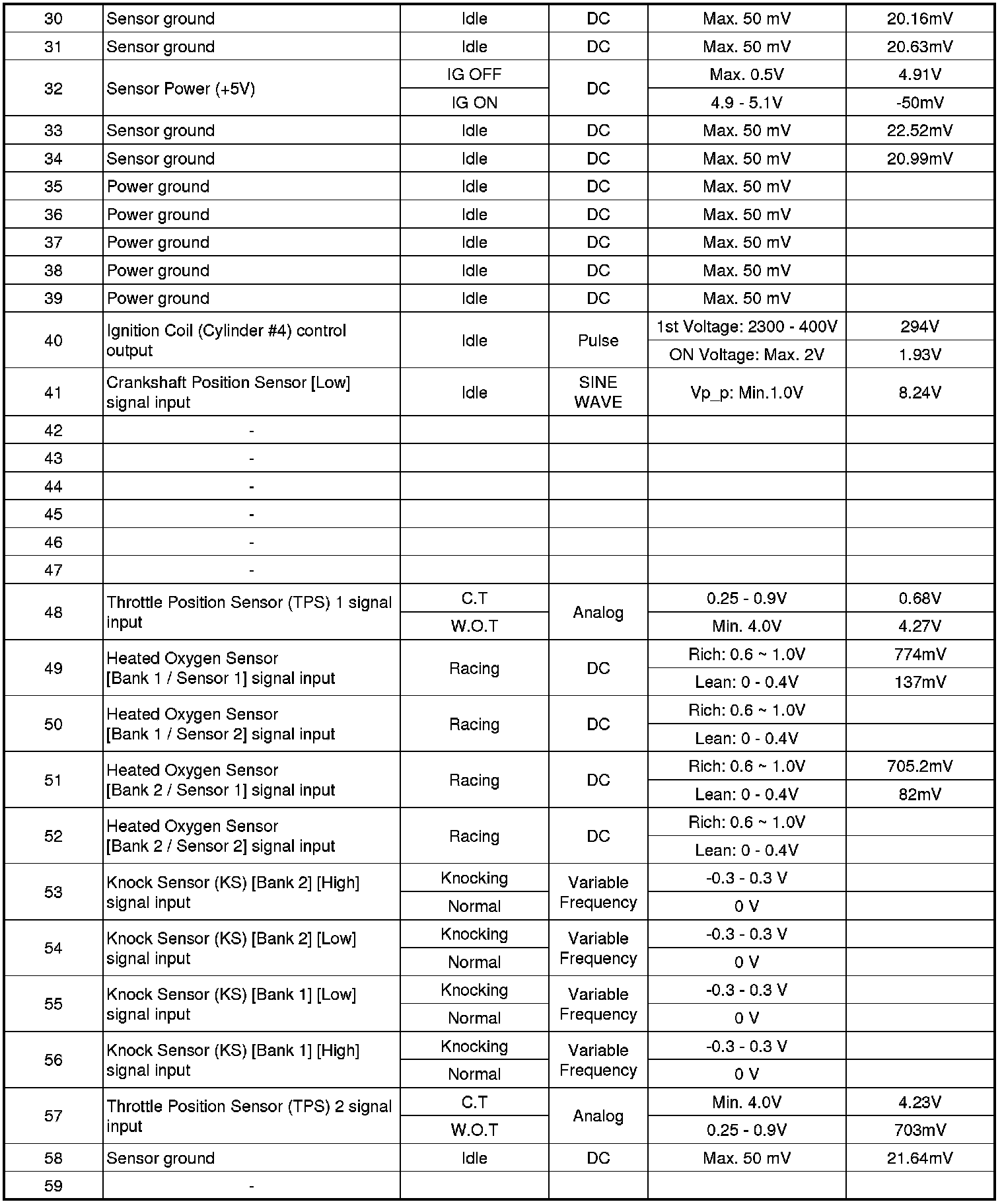

ECM Terminal Input/Output Signal

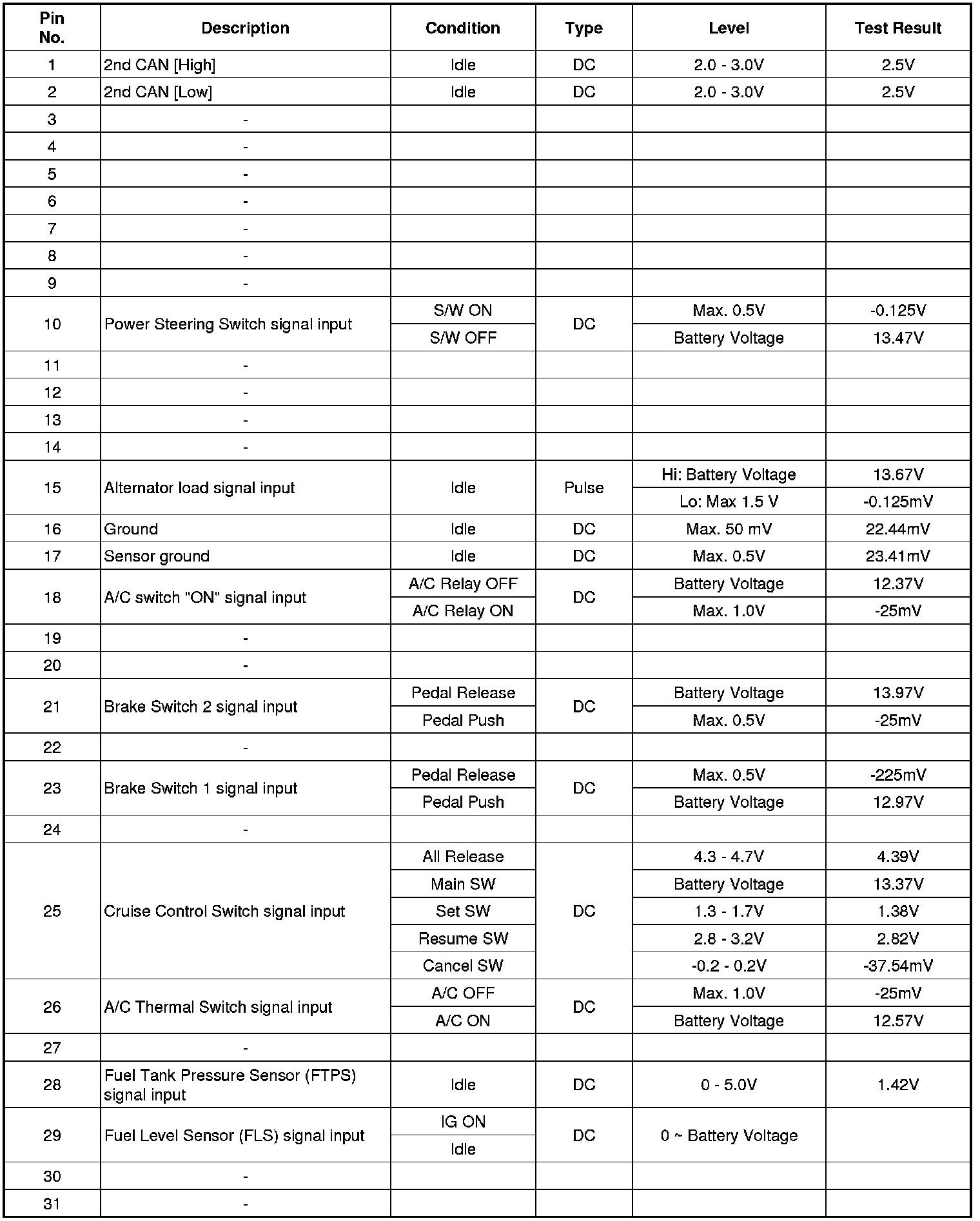

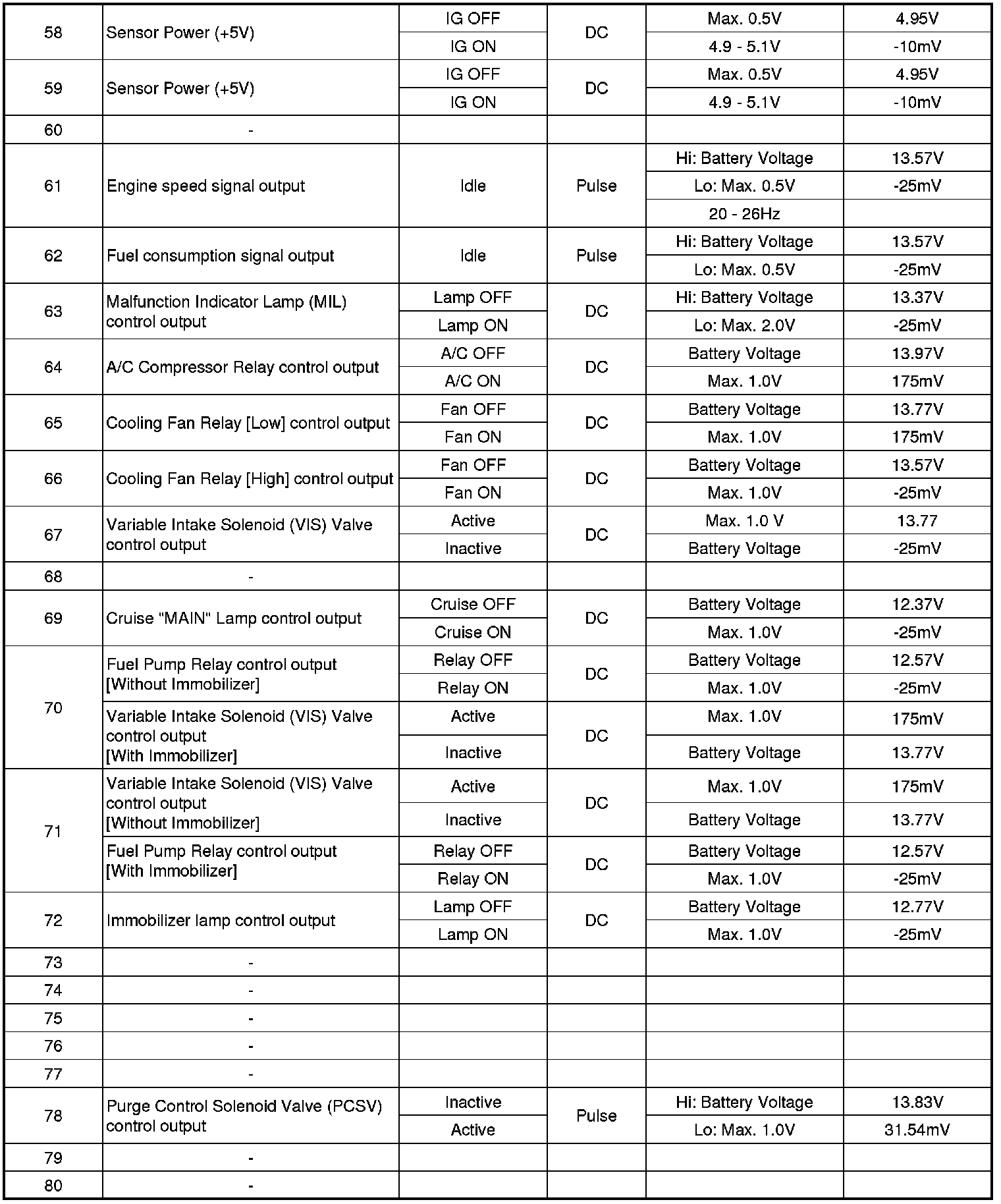

Connector [C401-A]

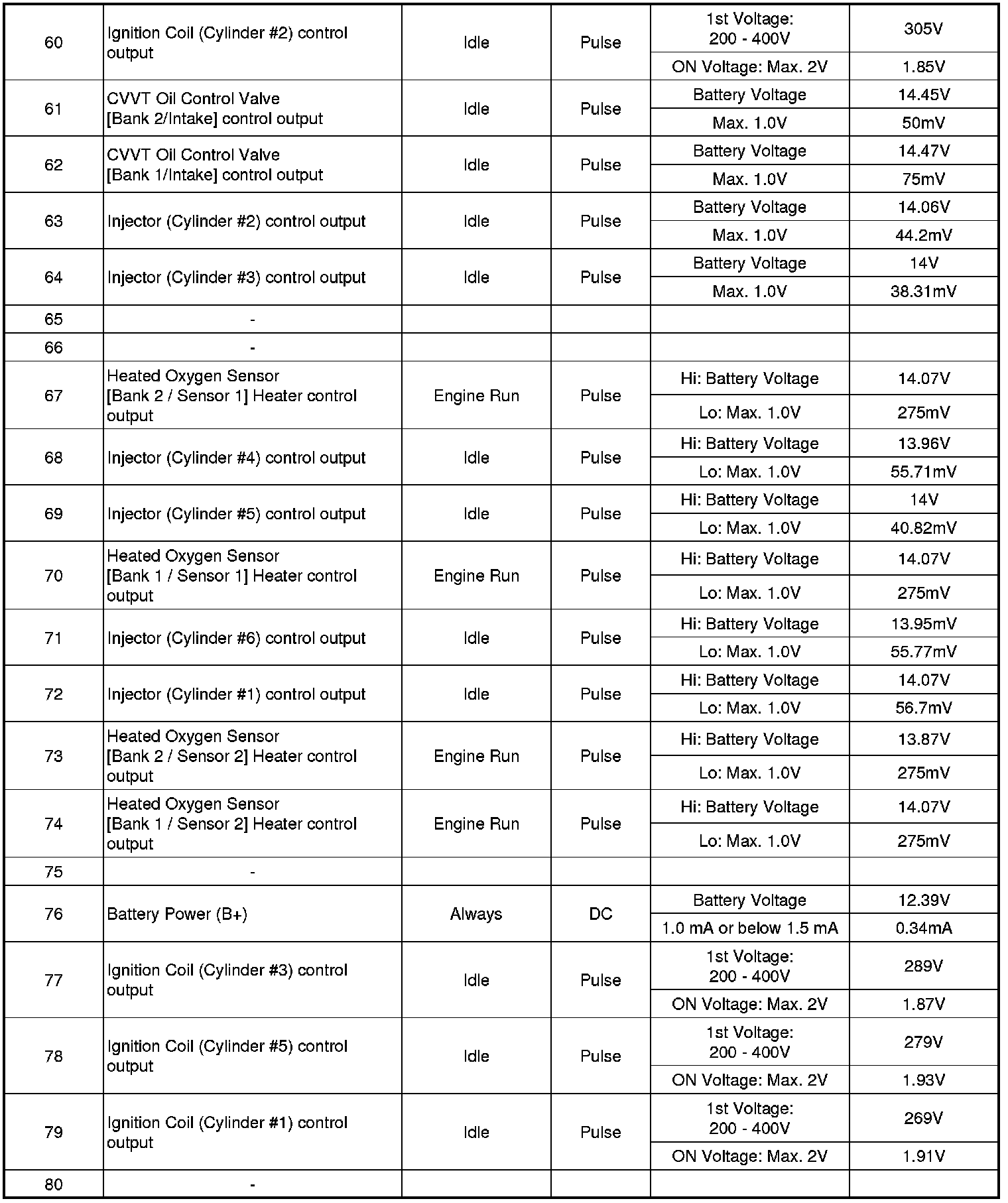

Connector [C401-B]
