Components And Components Location: Components

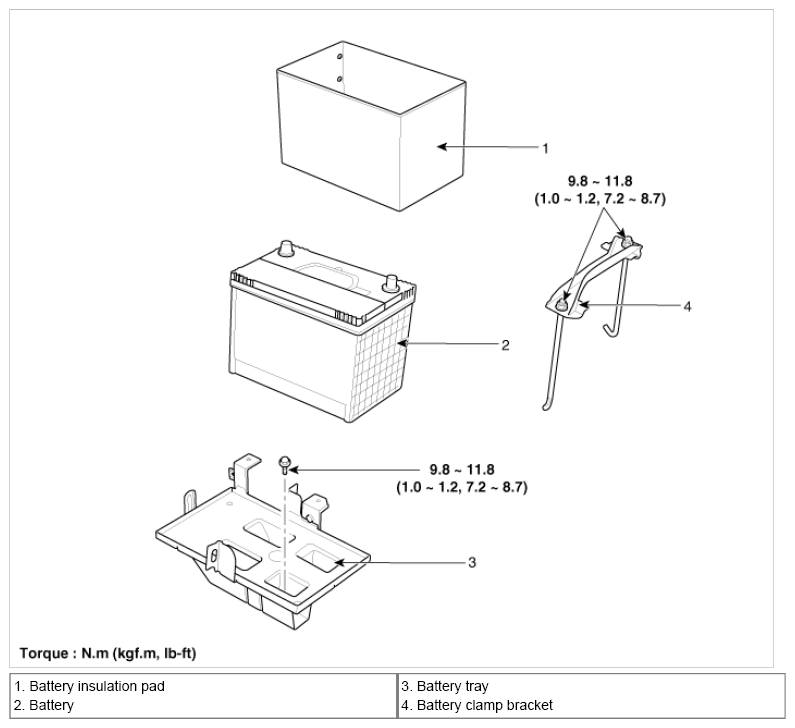

Fig 1: Battery Replacement Components With Torque Specifications
G07388897Courtesy of KIA MOTORS AMERICA, INC.
