Engine Control Module





ECM Terminal And Input/Output signal

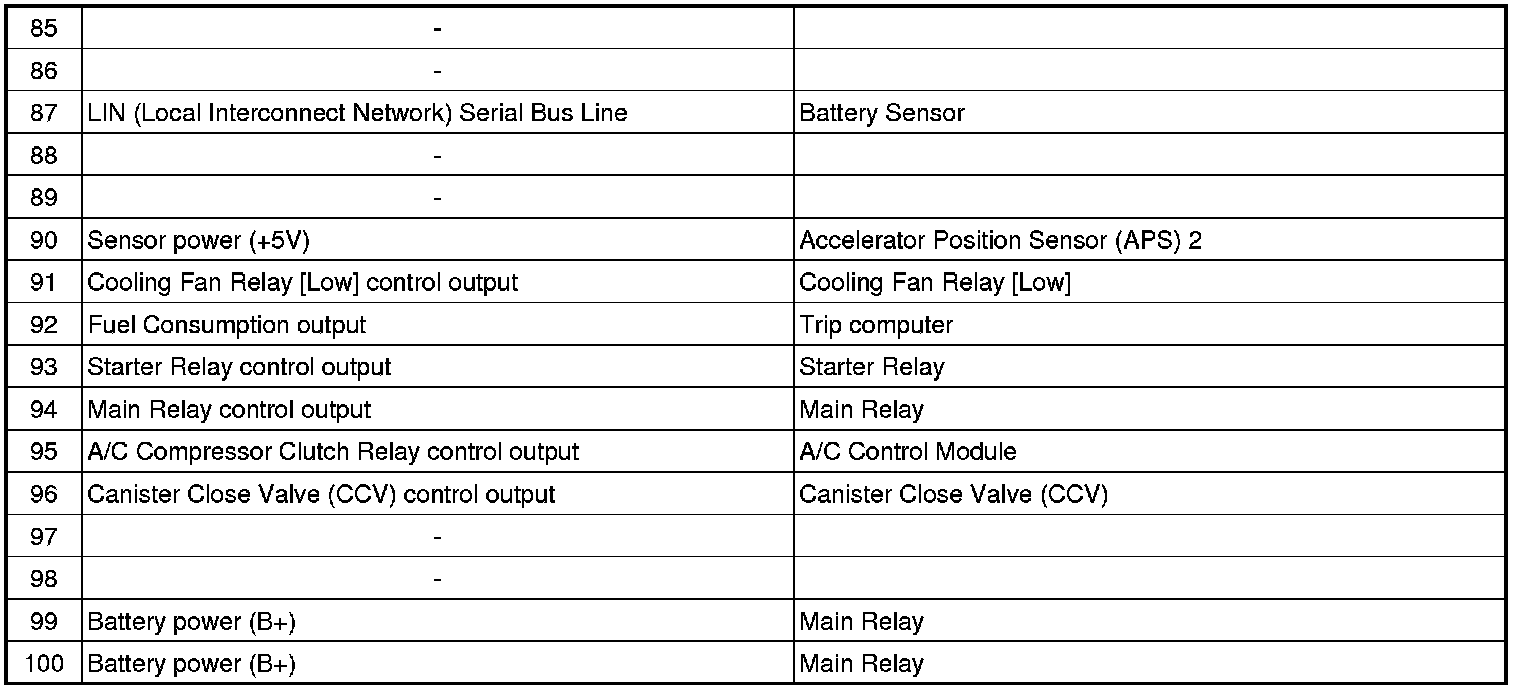

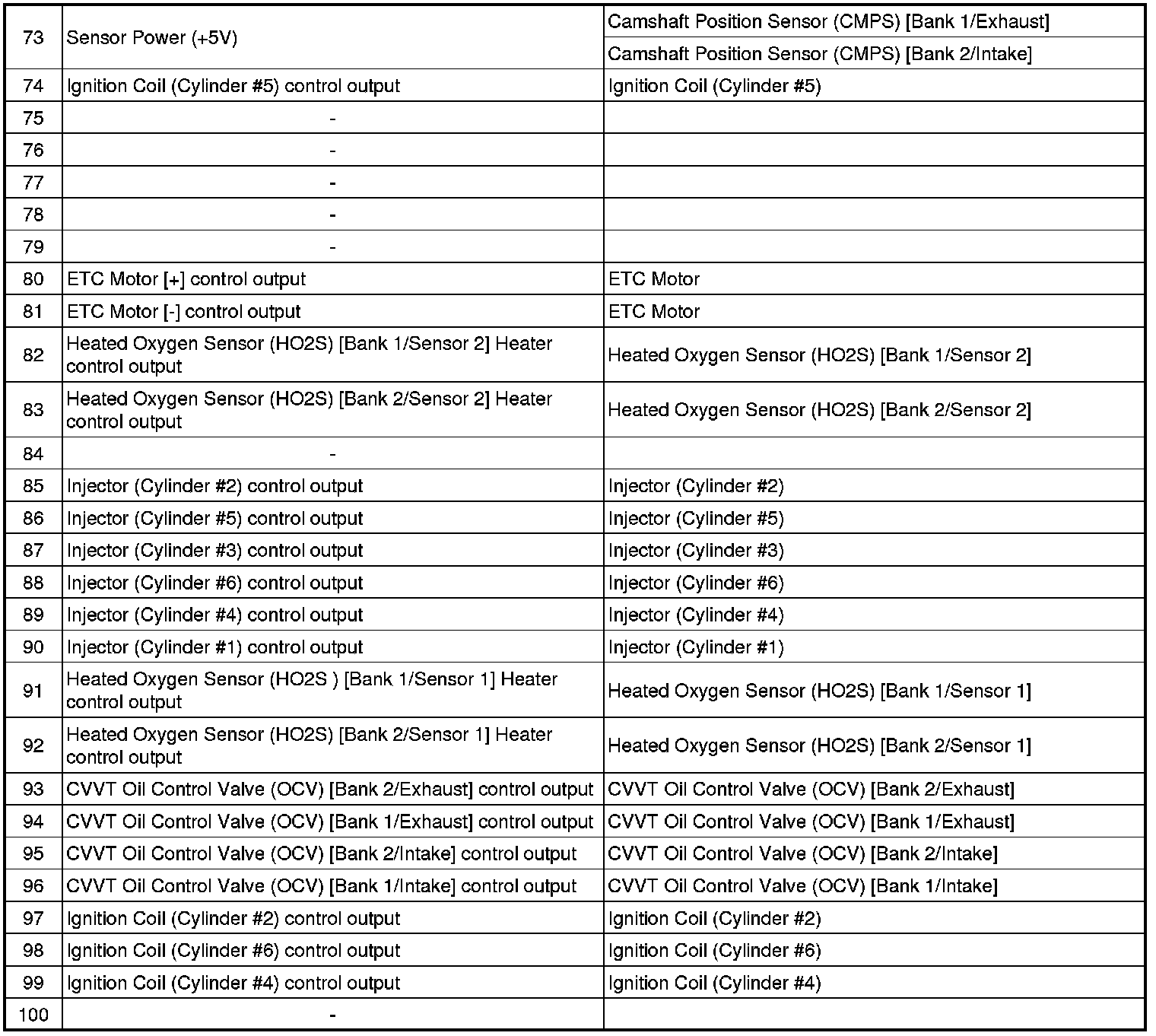

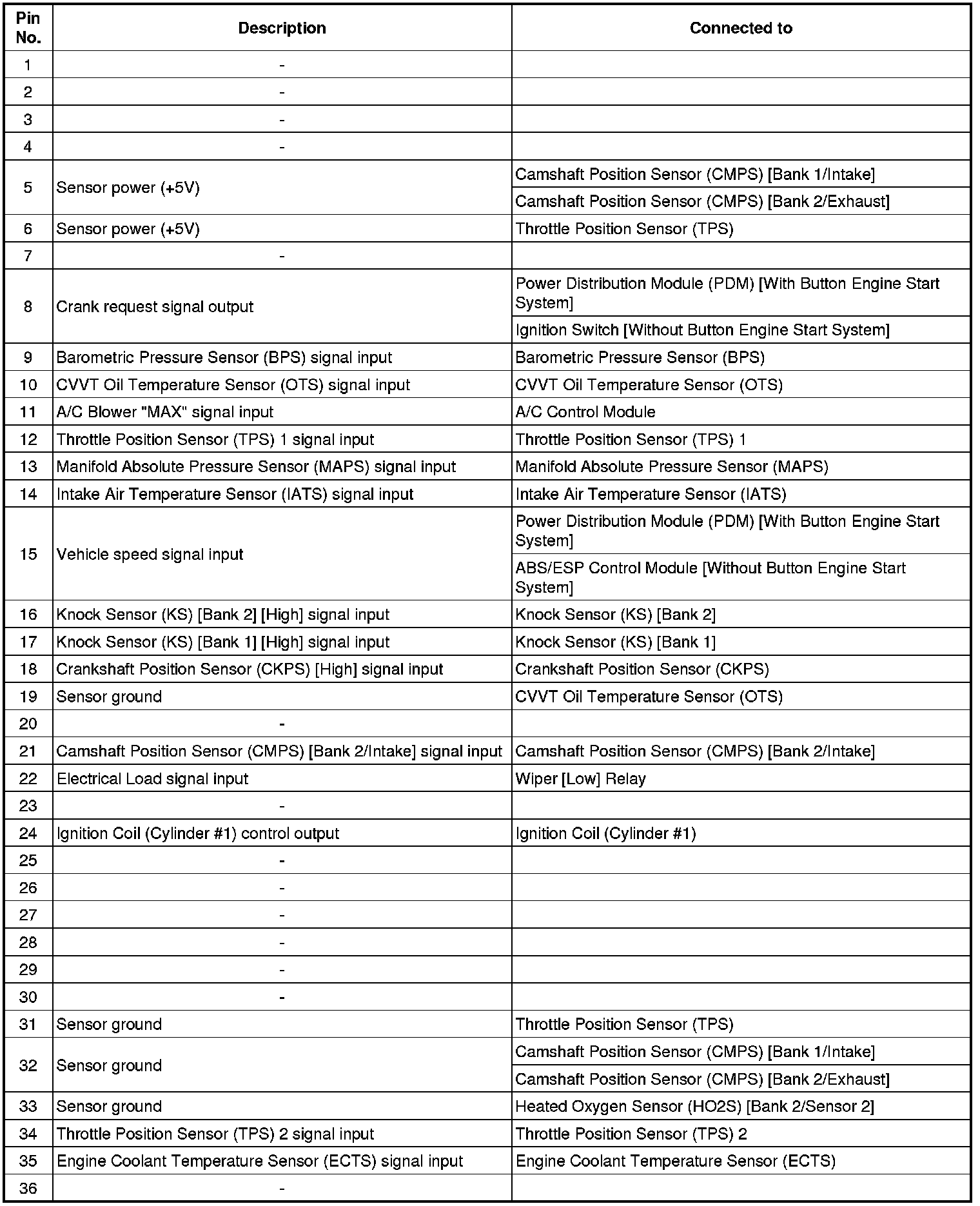

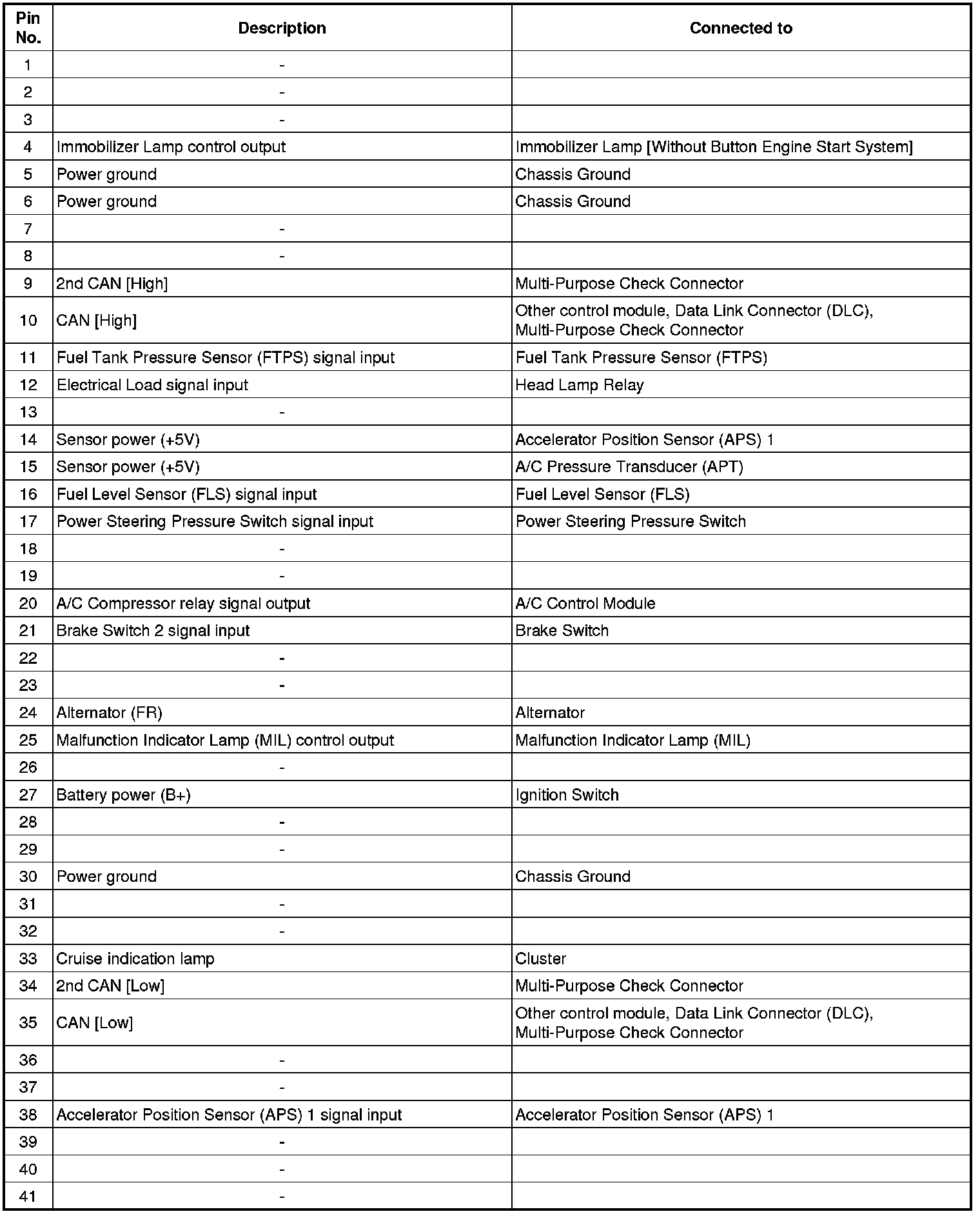

ECM Terminal Function

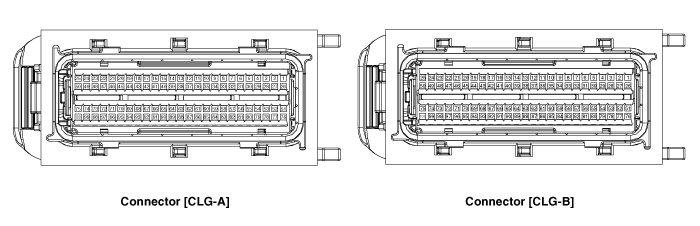

Connector [CLG-A]













Connector [CLG-B]

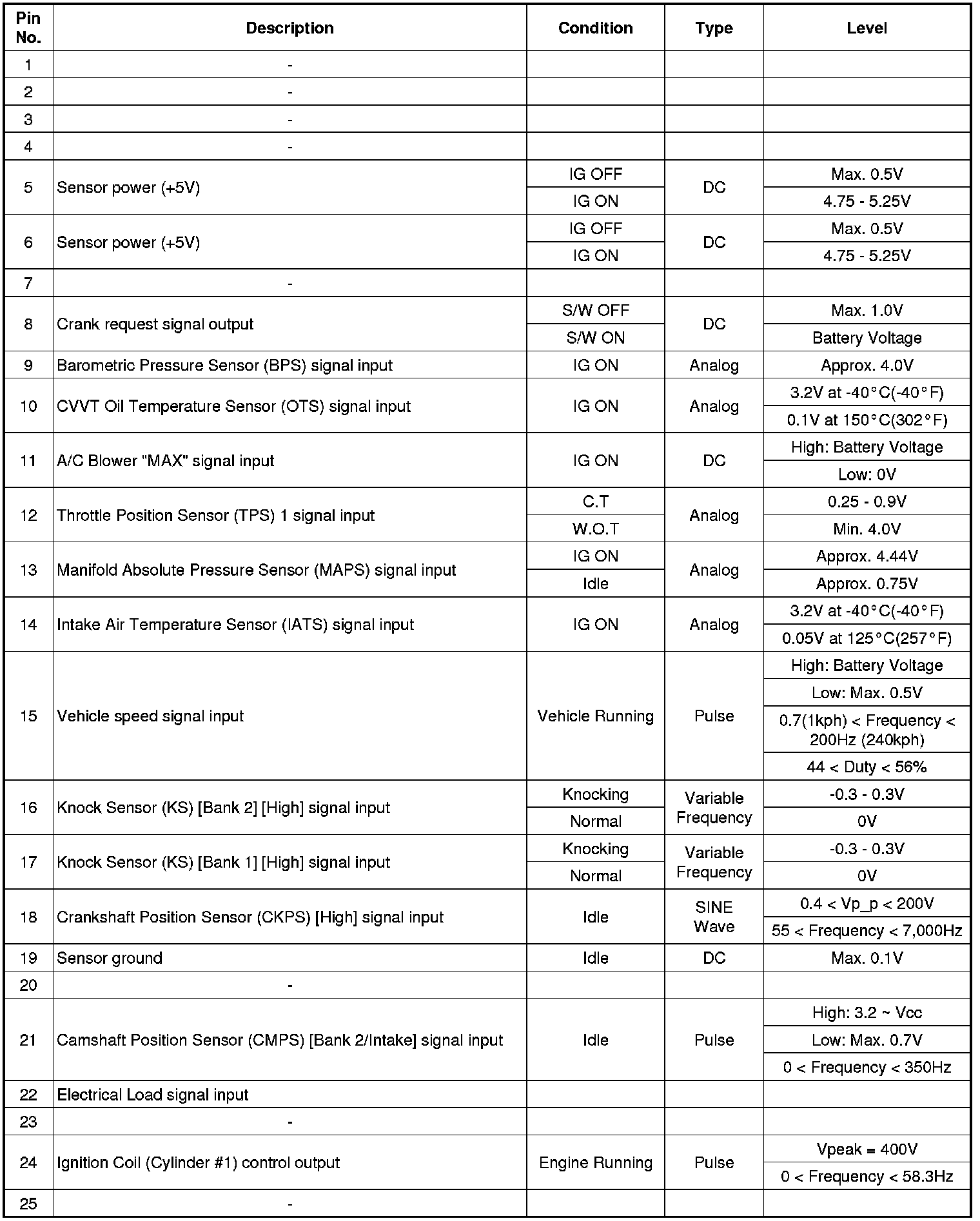

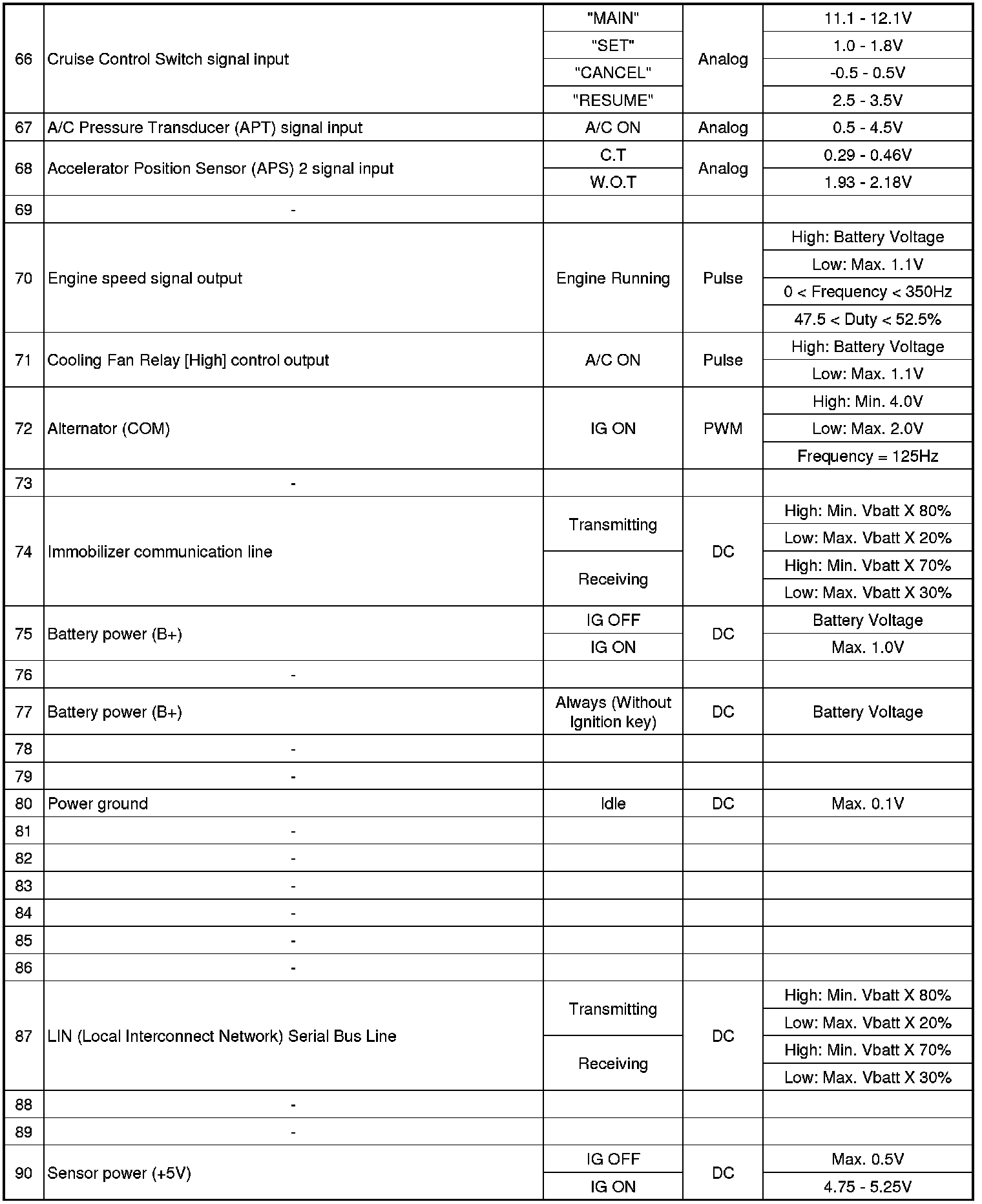

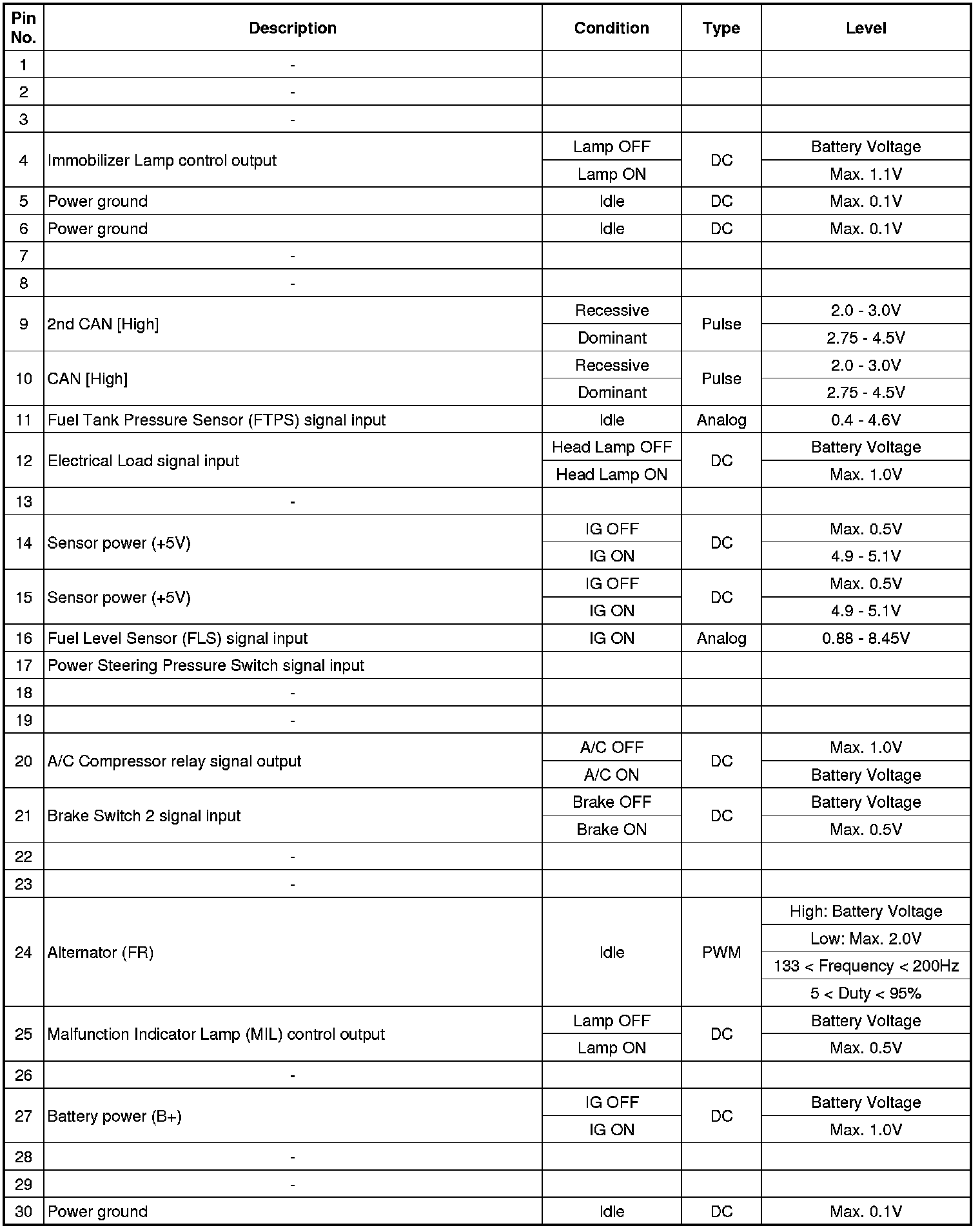

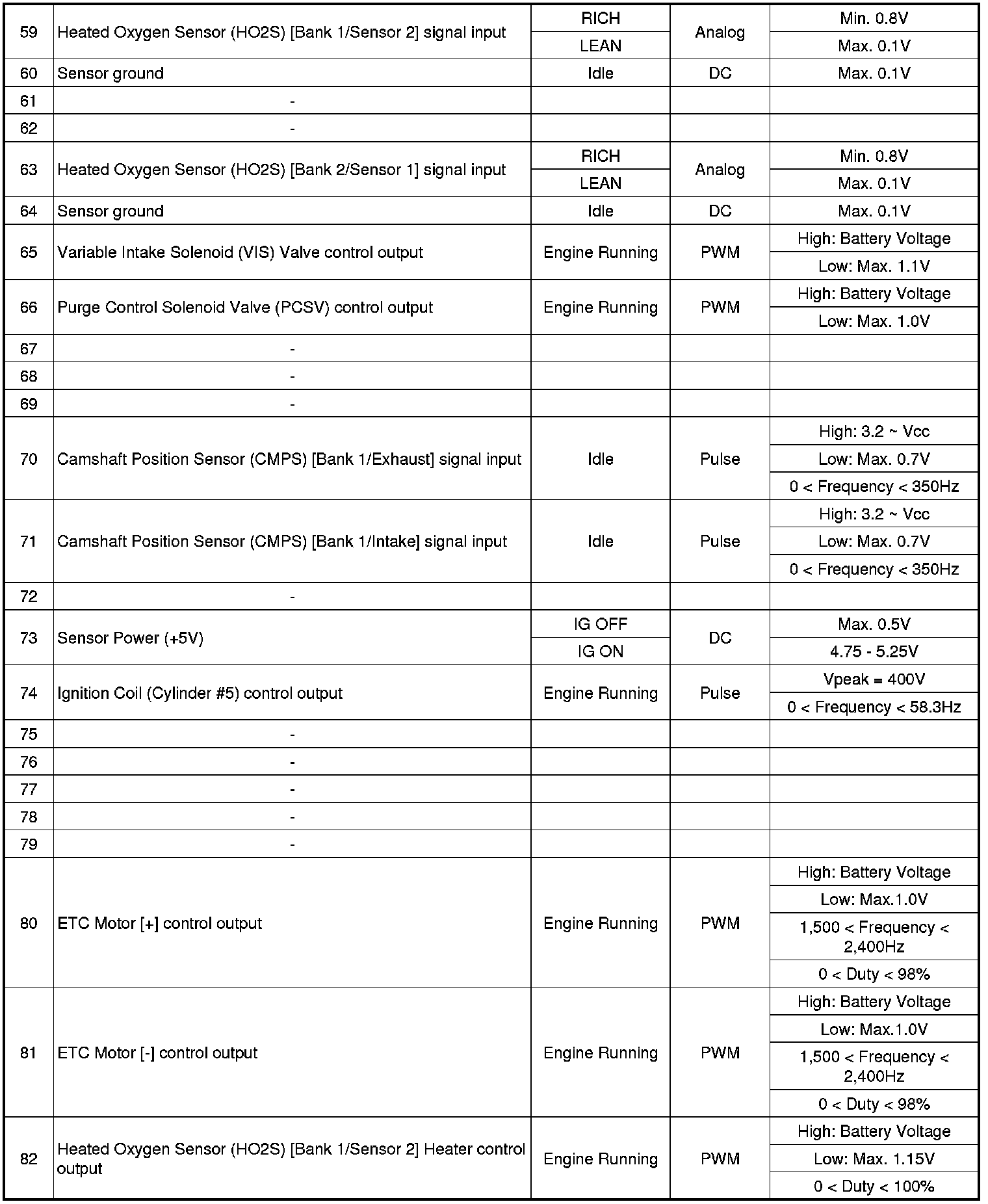

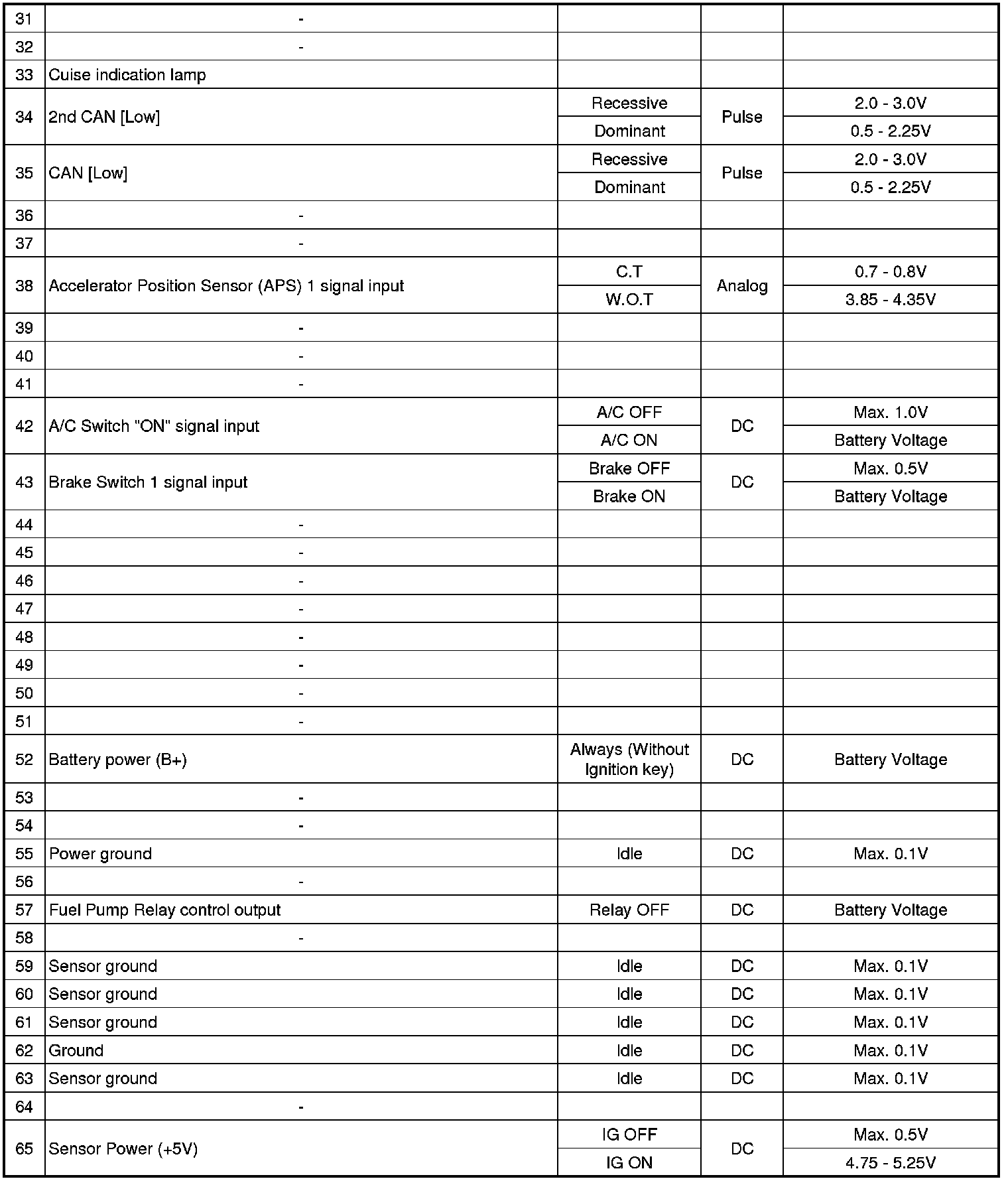

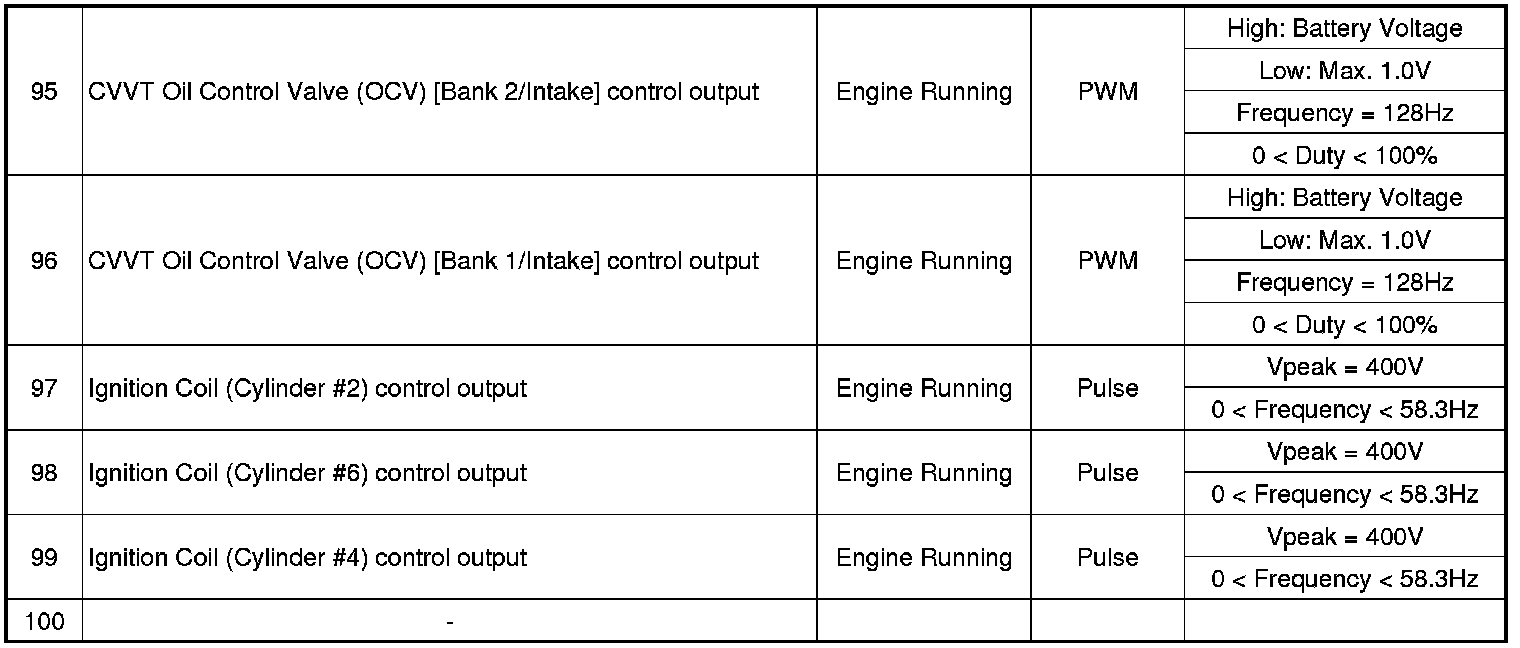

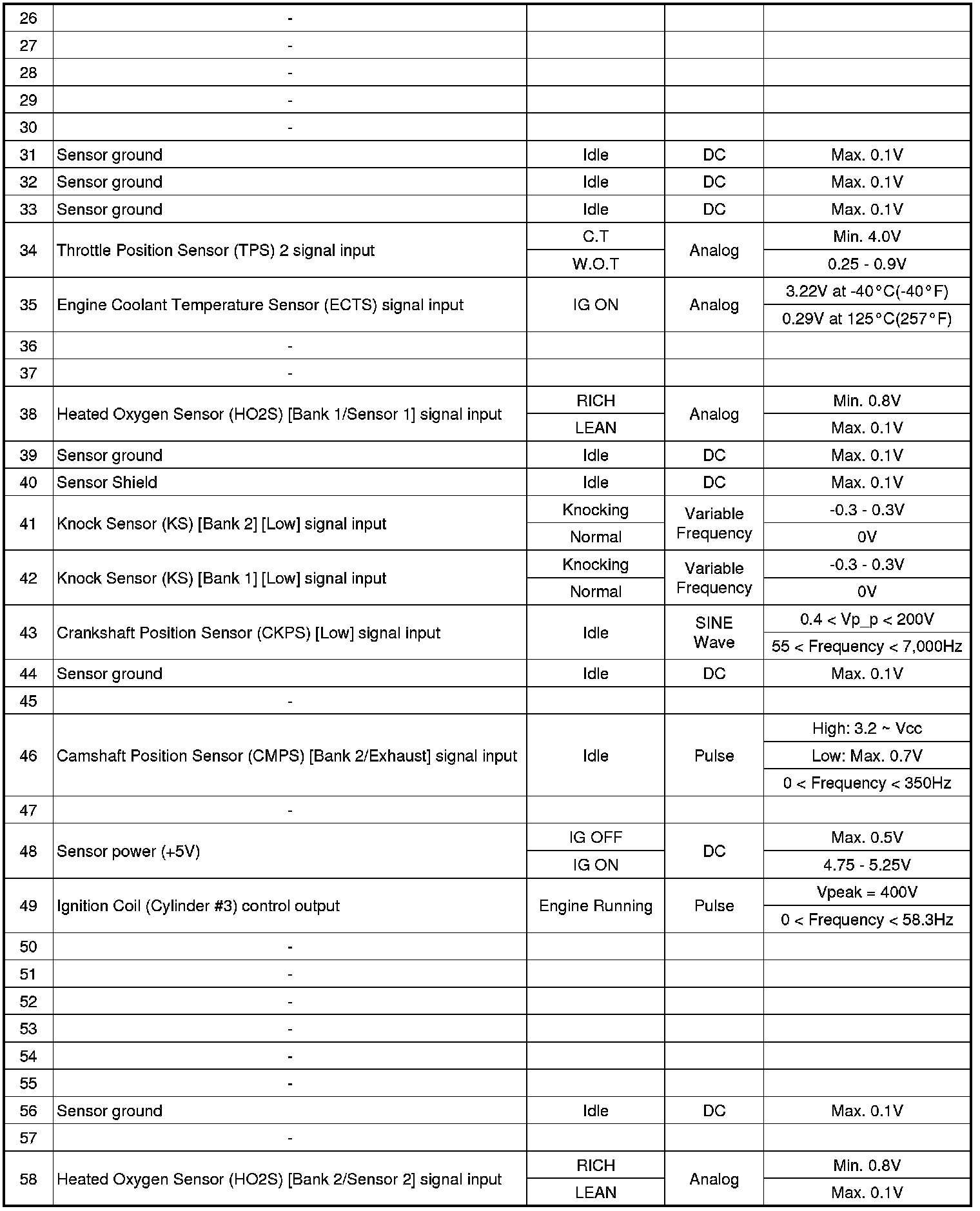

ECM Terminal Input/Output Signal

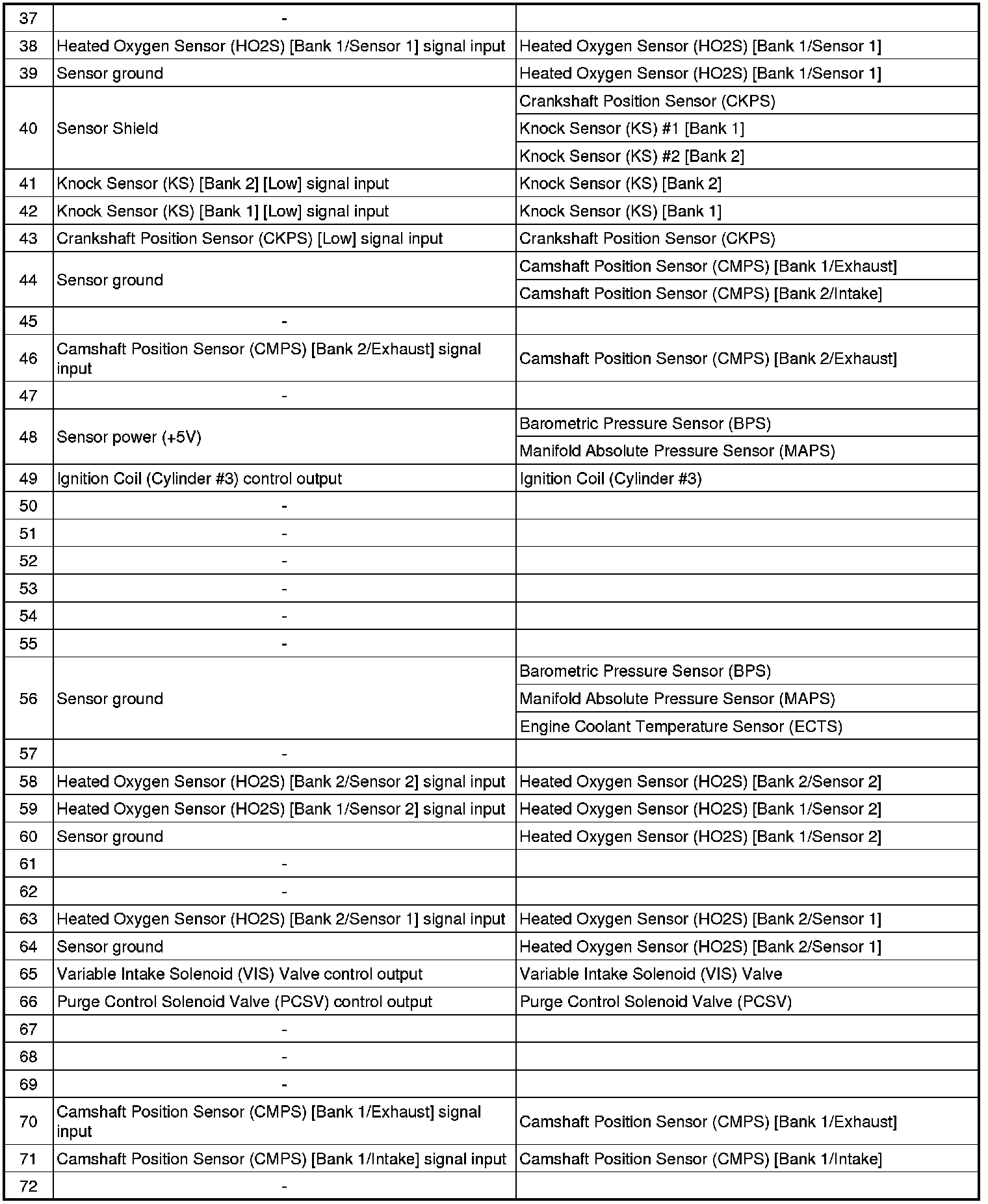

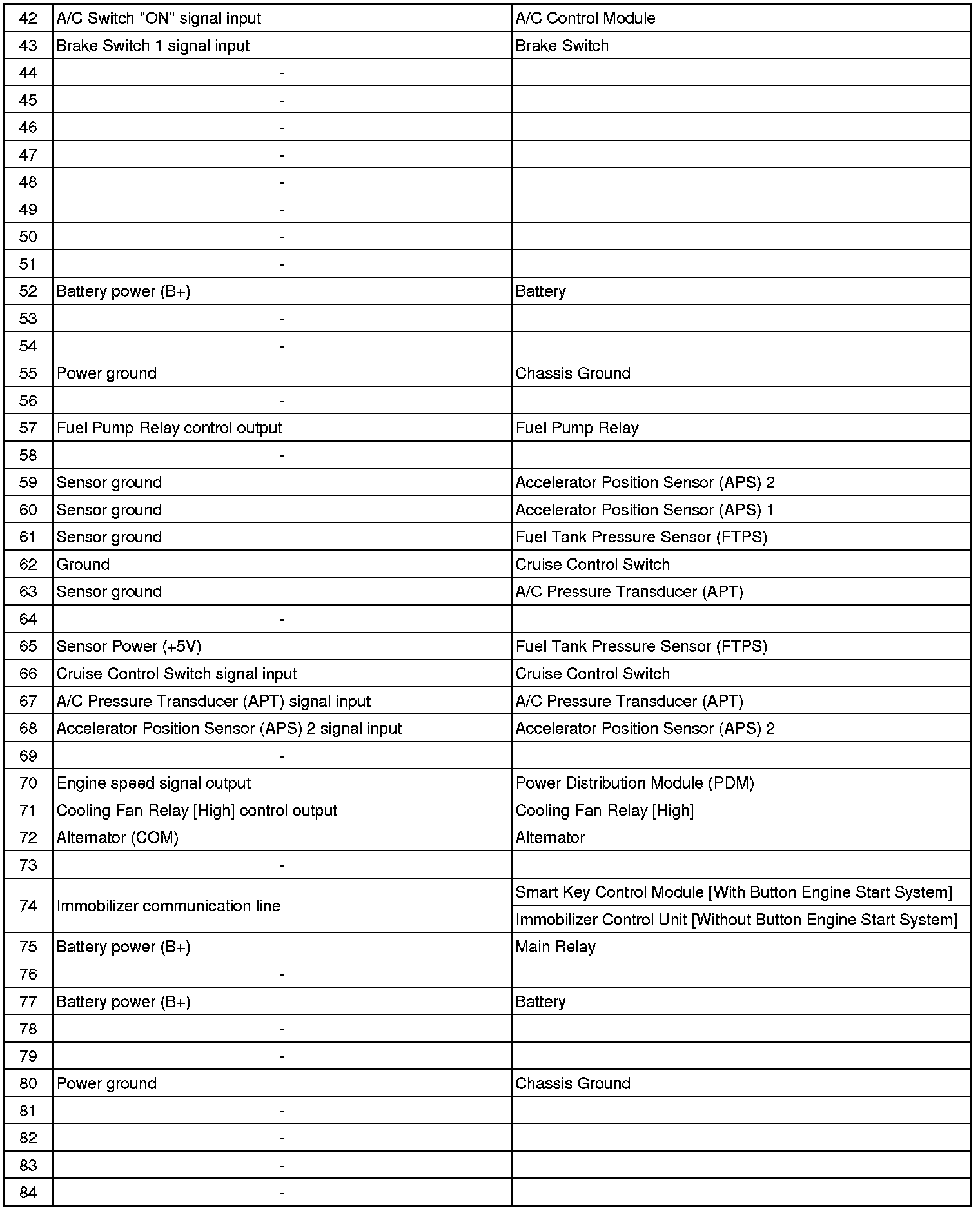

Connector [CLG-A]

















Connector [CLG-B]

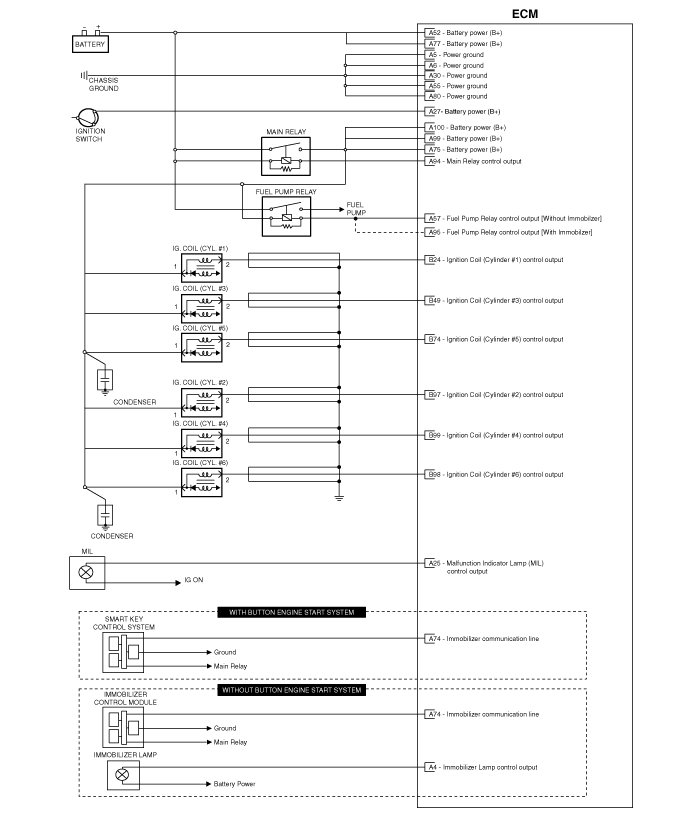

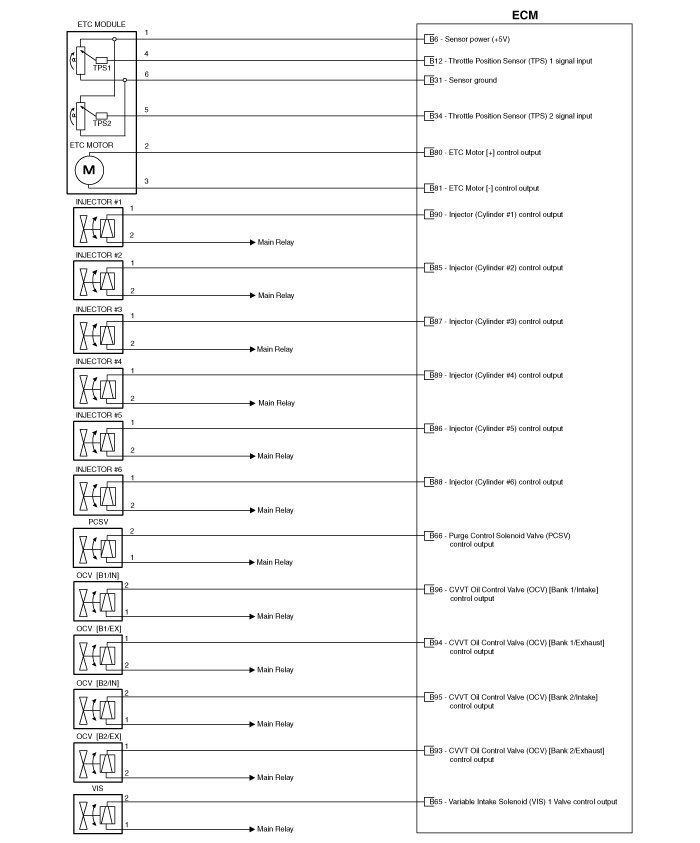

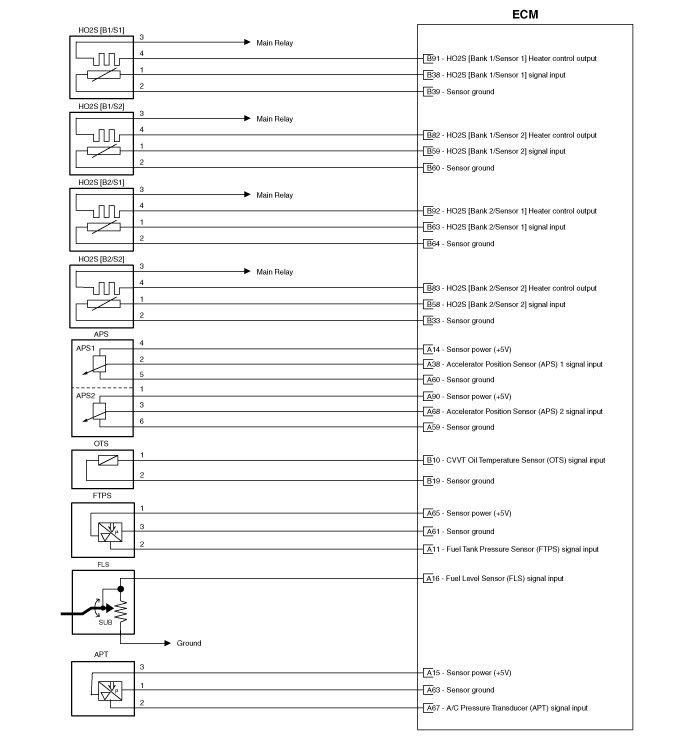

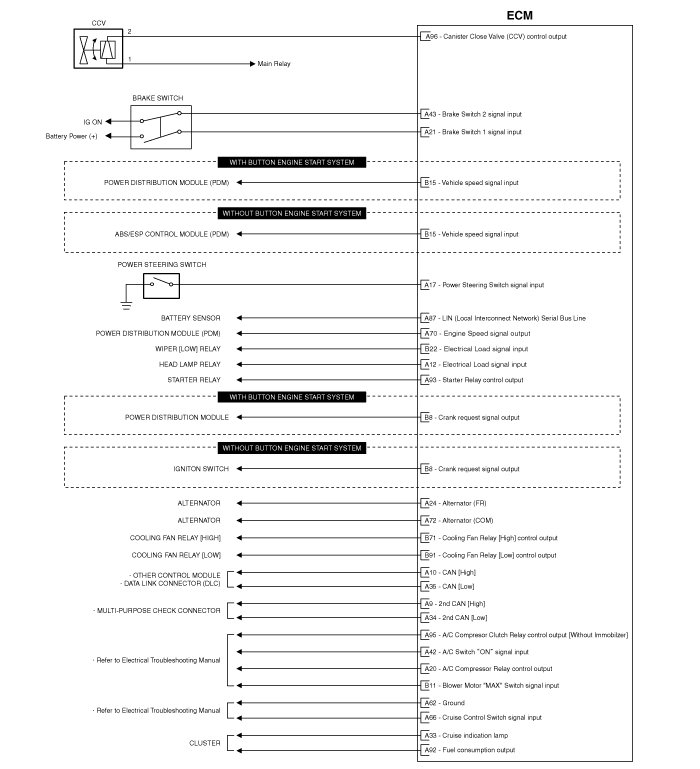

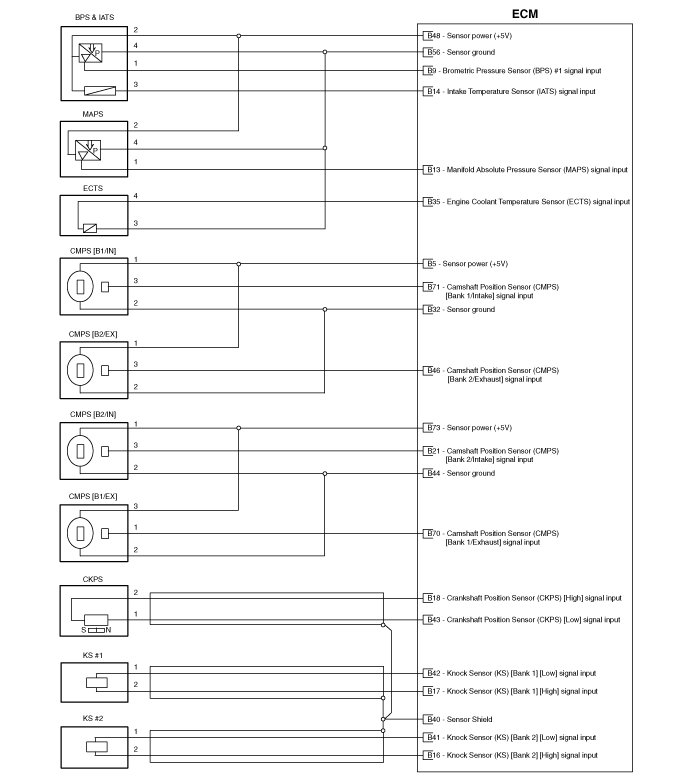

Circuit Diagram
