Repair Procedures

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the center air vent.

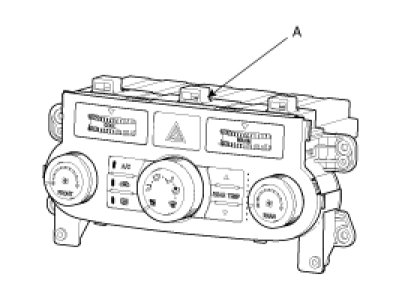

3. Remove the heater & A/C controller (A) after loosening 4 screws.

4. Remove the heater & A/C controller (A).

5. Installation is the reverse order of removal.
