Repair Procedures

INSPECTION

1. Ignition "ON"
2. Using the scan tool.

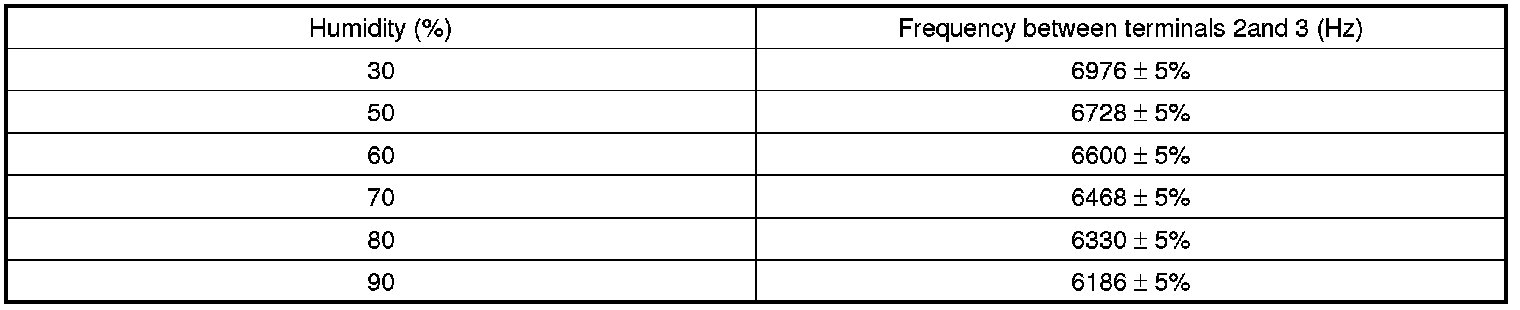

3. Check the frequency of humidity sensor between terminals 2 and 3.





4. If the measured resistance is not specification, substitute with a known-good humidity sensor and check for proper operation.
5. If the problem is corrected, replace the Humidity sensor.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the center facia lower panel.

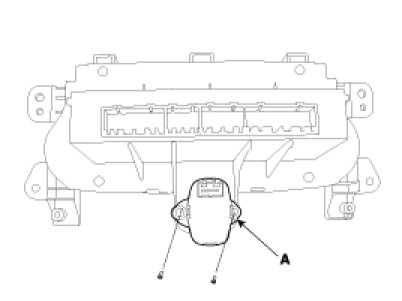

3. Disconnect the humidity sensor connector (A).
4. Loosen 2 screws and then remove the humidity sensor (B).




5. Installation is the reverse order of removal.
