G6DC

Fuse & Relay Information

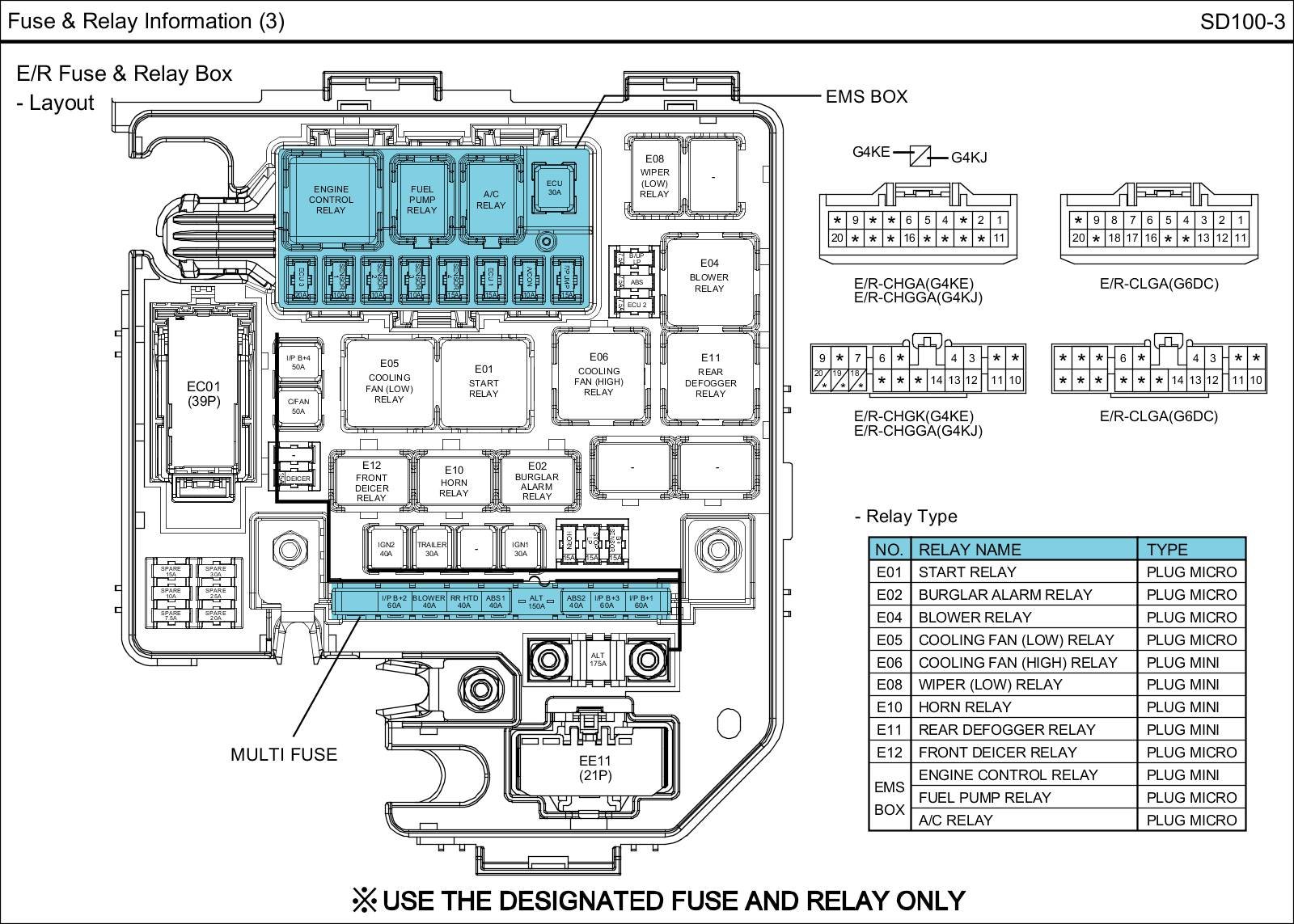

E/R Fuse & Relay Box View:

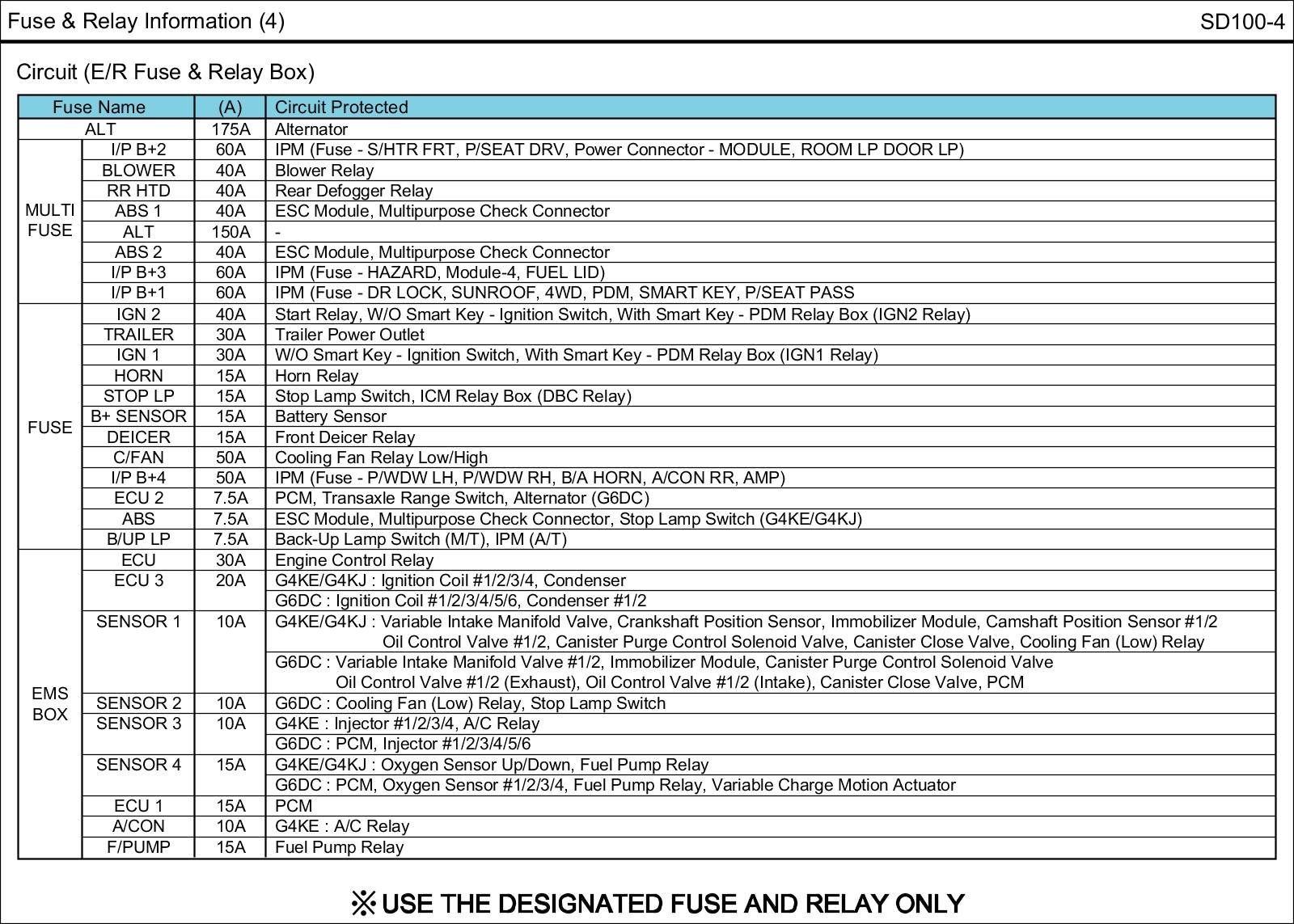

E/R Fuse & Relay Box Circuit Details:




EMS Box (Circuit Diagram) View:
