Repair Procedures (VIN 1): Adjustment

After replacing ETC module or ECM, the ETC adaptive value must be reset / relearned according to the following procedure.

1. Check DTC(s) and clear if exist.
2. Select "Data Treatment", to reset the ETC adaptive value.

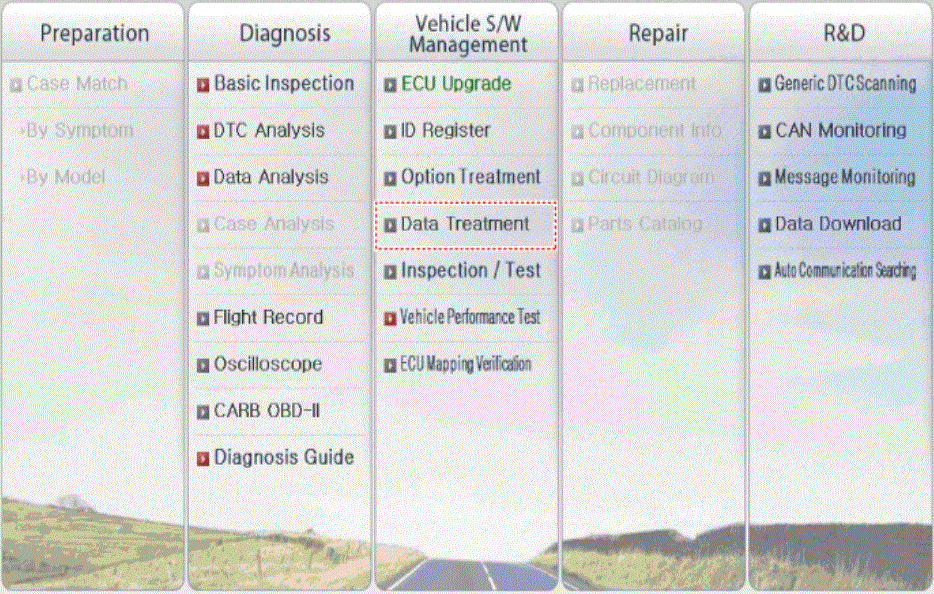

   Fig 1: Identifying GDS Screen - "Data Treatment" (VIN 1)

   Courtesy of KIA MOTORS AMERICA, INC.
3. Select "Resetting adaptive values".

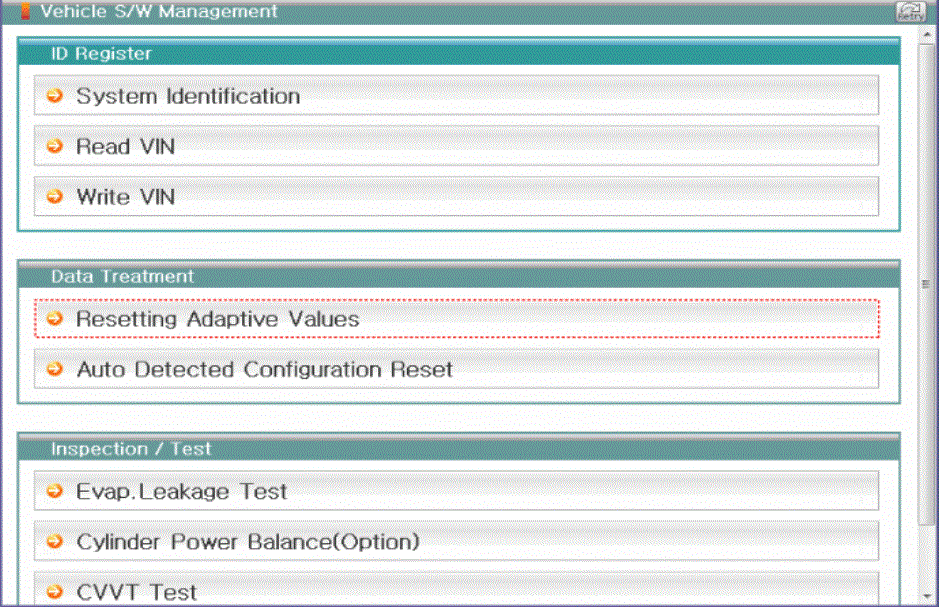

   Fig 2: Identifying GDS Screen - "Resetting adaptive values" (VIN 1)

   Courtesy of KIA MOTORS AMERICA, INC.
4. Select "Reset", then wait 10 seconds after turning ignition key off (Relay OFF).

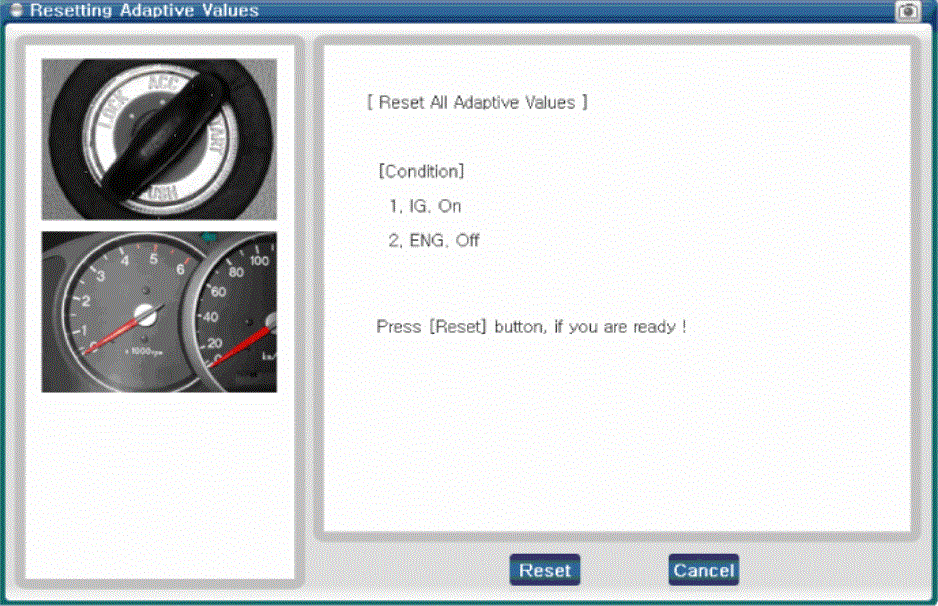

   Fig 3: Identifying GDS Screen - "Reset" (VIN 1)

   Courtesy of KIA MOTORS AMERICA, INC.

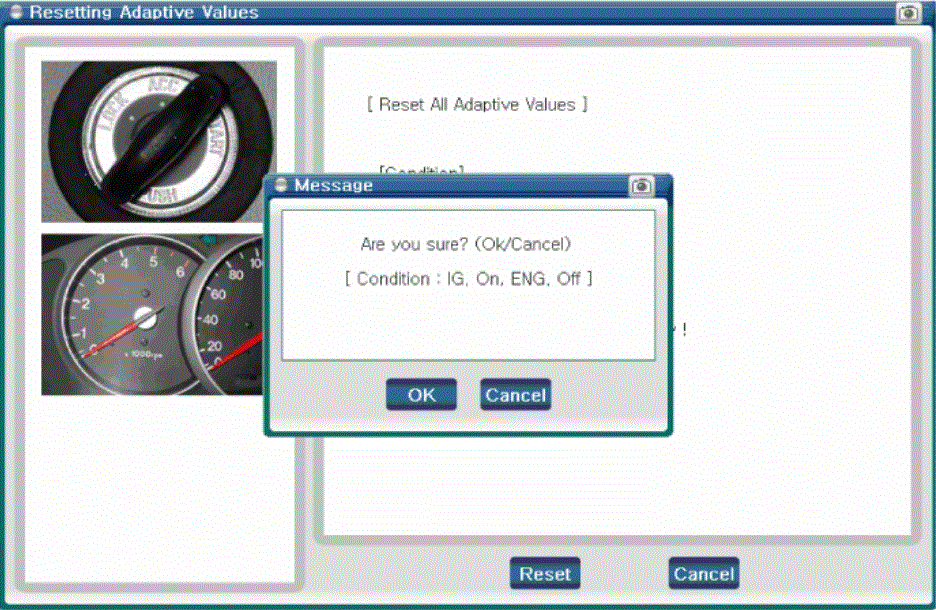

   Fig 4: Identifying GDS Screen - "Reset" Confirmation (VIN 1)

   Courtesy of KIA MOTORS AMERICA, INC.

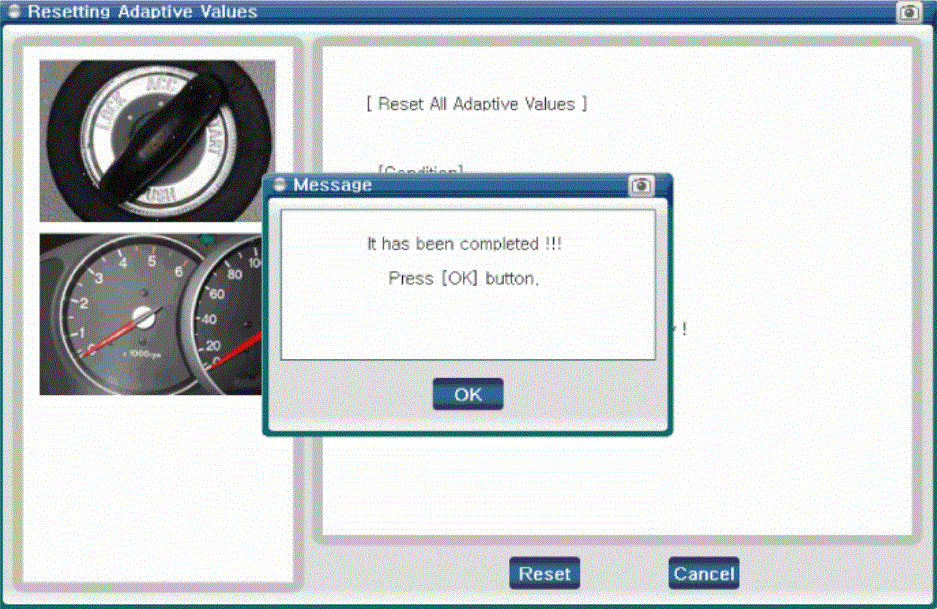

   Fig 5: Identifying GDS Screen - "Reset" Complete (VIN 1)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Wait for 5 seconds after turning the ignition ON (ETC adaptive value relearn).

   If equipped with Button Engine Start System, push the engine start/stop button 2 times without depressing the brake pedal. This will allow the ECM to automatically learn the throttle valve position; then wait for approximately 5 seconds.

   Enable conditions : Battery > 10V, Intake Air Temp. > 5.3°C (41.5°F), 5.3°C (41.5°F) < Engine Coolant Temp. < 99.8°C (211.6°F)

6. Start engine.
7. Recheck DTC(s).
