Signal Waveform & Data

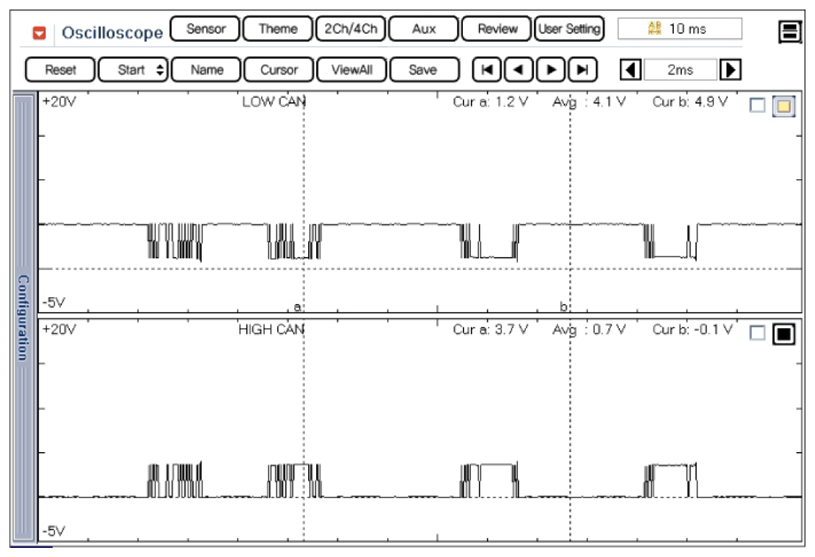

Fig 1: Screen Display - Signal Waveform Of CAN Low And High
G07417287Courtesy of KIA MOTORS AMERICA, INC.

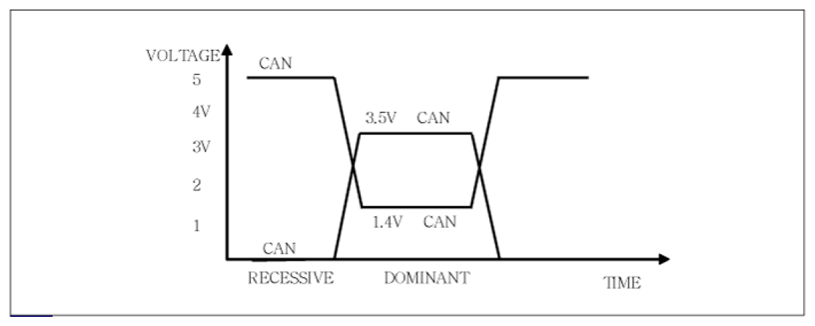

Fig 2: Screen Display - CAN Bus Voltage Level (Low Speed CAN)
G07417288Courtesy of KIA MOTORS AMERICA, INC.
