Circuit Diagram

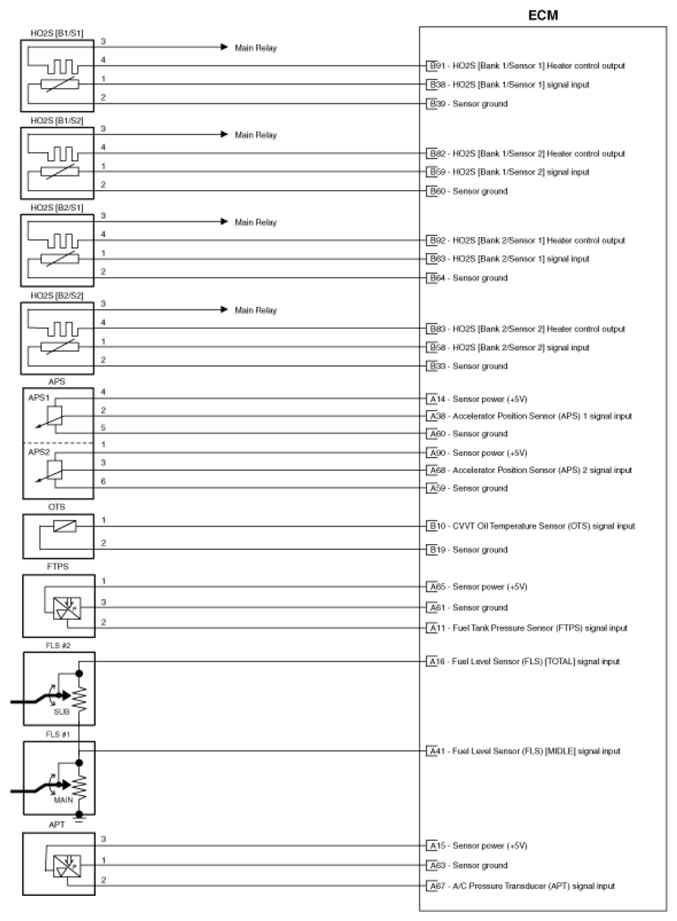

Fig 1: Engine Control Module - Circuit Diagram (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

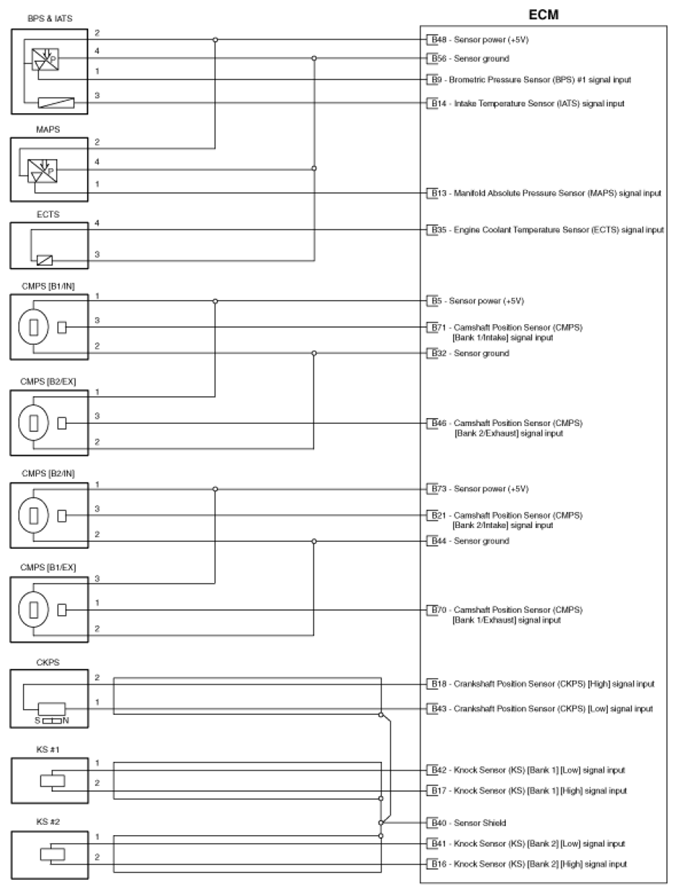

Fig 2: Engine Control Module - Circuit Diagram (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

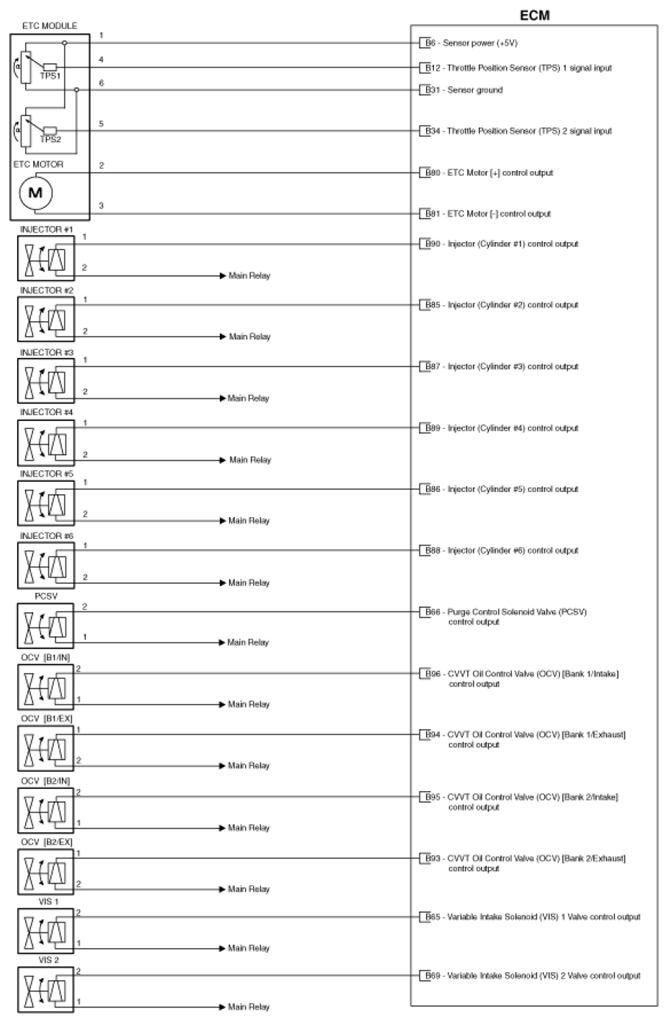

Fig 3: Engine Control Module - Circuit Diagram (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

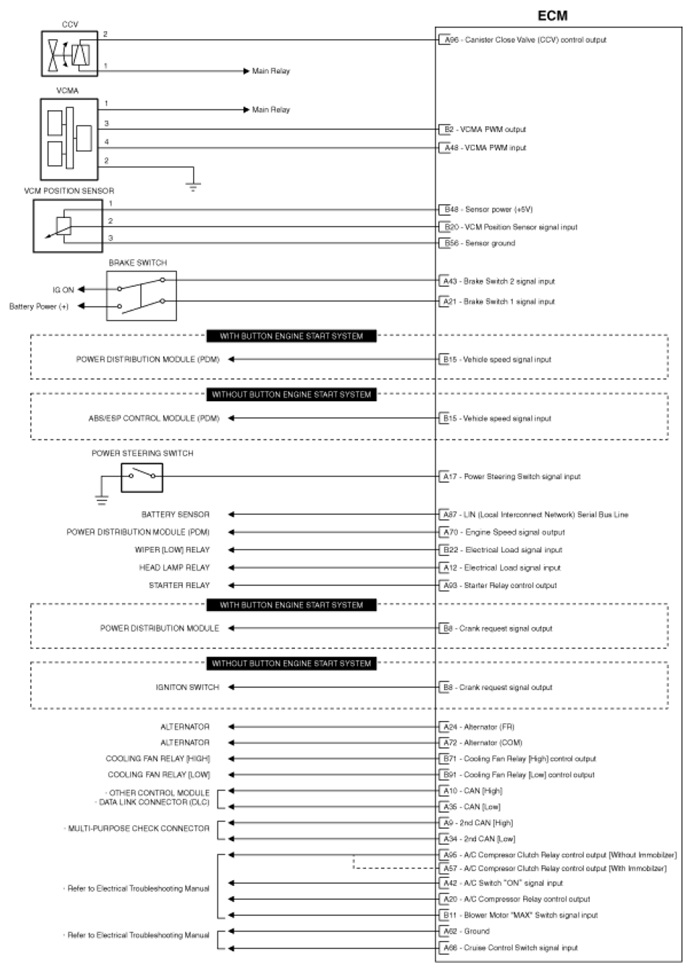

Fig 4: Engine Control Module - Circuit Diagram (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

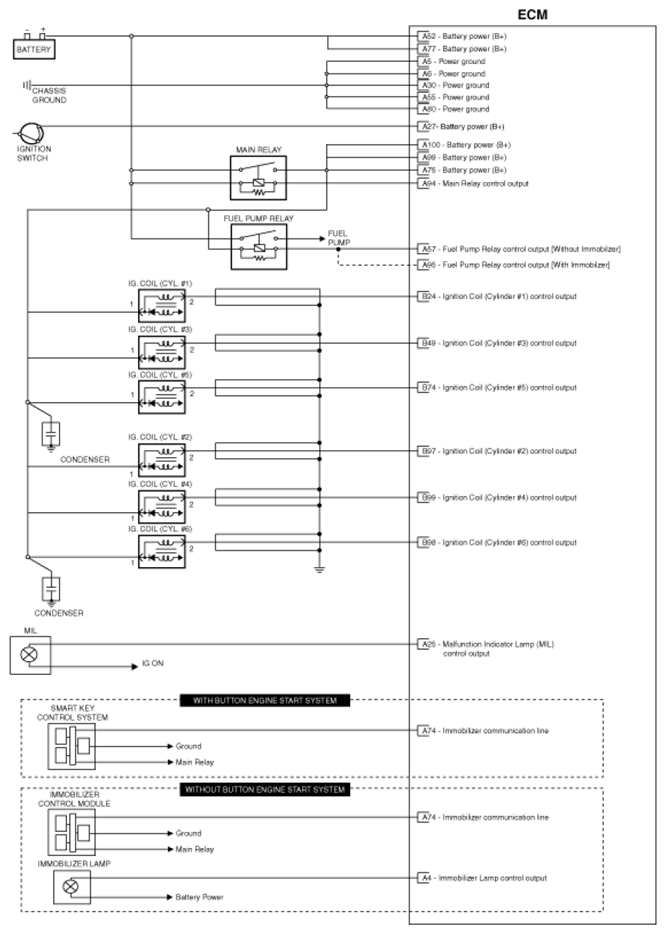

Fig 5: Engine Control Module - Circuit Diagram (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
