Repair Procedures: Adjustment

  1. After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up or down, or right or left.
  2. Adjust the hood height by turning the hood overslam bumpers (C).
  3. After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up or down, or right or left.

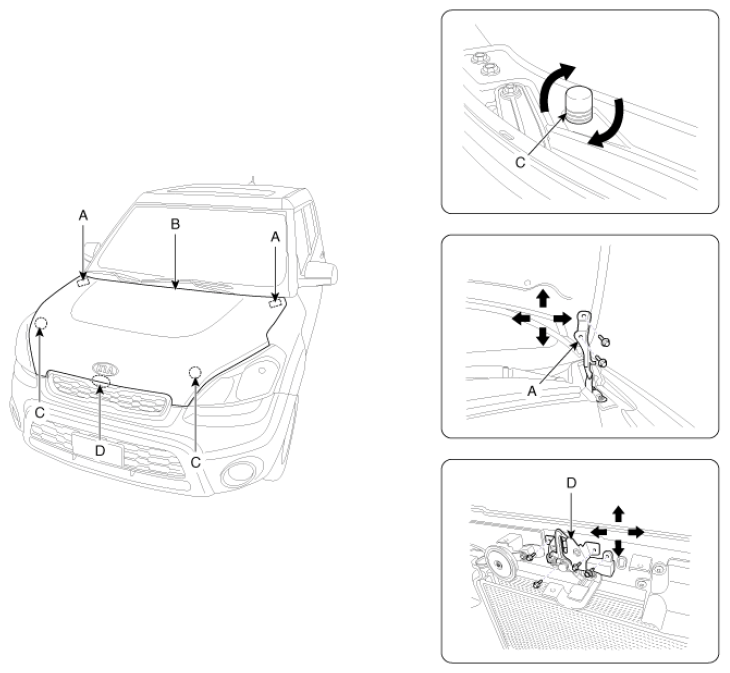

Fig 1: Adjusting Hood Latch
G08328666Courtesy of KIA MOTORS AMERICA, INC.
