Component Inspection

Check auto cruise switch

IG key OFF.
Disconnect 'CRUISE REMOCON SWITCH' connector.
Measure resistance between 'Signal (Cruise sw)' terminal and 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector with each switch depressed. (Component side)

Measure resistance between 'Signal (Cruise sw)' terminal and 'Ground(Cruise sw)' terminals of 'CRUISE REMOCON SWITCH' harness connector. (Component side)

RESISTANCE SPECIFICATION

Item	Resistance(Ω)
CRUISE MAIN switch	3.9 kΩ ± 5%
CANCEL switch	0 Ω ± 5%
COAST SET switch	220 Ω ± 5%
RESUME/ACCEL switch	910 Ω ± 5%

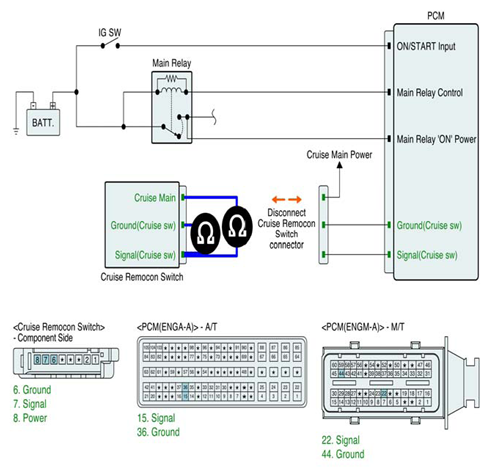

Fig 1: Measuring Resistance Between Signal (Cruise Sw) And Ground(Cruise Sw) Terminals Of Cruise Remocon

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured value within specification?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace 'CRUISE REMOCON SWITCH' and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NOTE: There is a memory reset function on GDS that can erase optional parts automatically detected and memorized by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others.
