Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

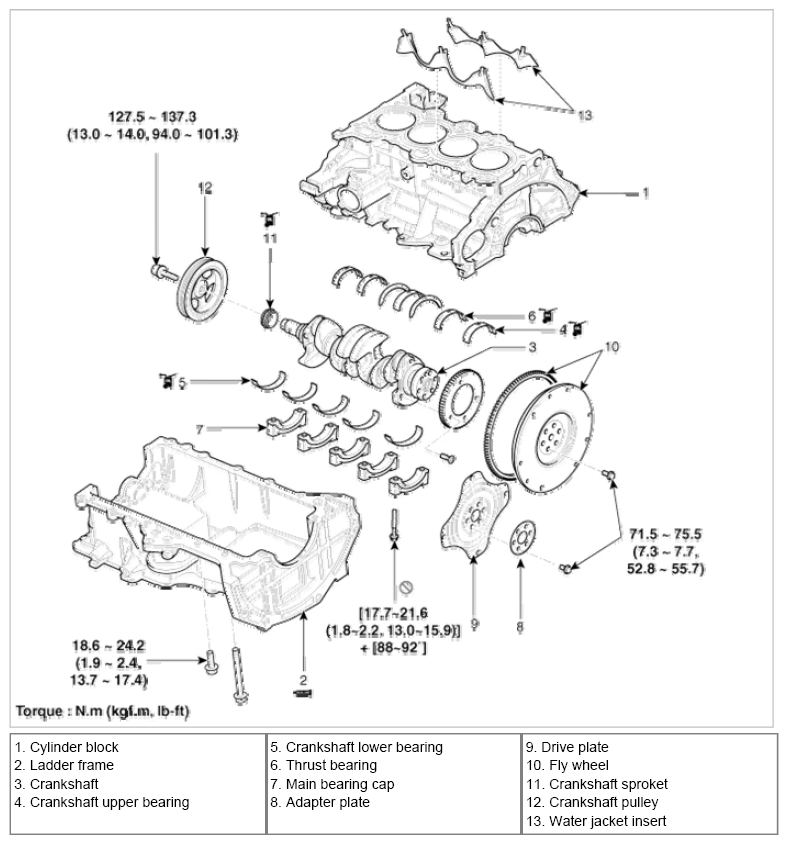

Fig 1: Cylinder Block Replacement Components With Torque Specifications (1 Of 2)
G08330781Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Cylinder Block Replacement Components With Torque Specifications (2 Of 2)
G08330782Courtesy of KIA MOTORS AMERICA, INC.
