Repair procedures: Installation

Installation is the reverse of removal.
CAUTION: If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit. When installing the new oil seal, use the specialized tool (oil seal installer, 09453-3L241).
NOTE:
After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
- Adding automatic transaxle fluid. (Refer to OIL LEVEL CHECK .
- After servicing the automatic transaxle or TCM, clear the diagnostic trouble codes (DTC) using the GDS tool. Diagnostic trouble codes (DTC) cannot be cleared by disconnecting the battery.
- When deleting diagnostic trouble code, use the GDS as possible.
- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.

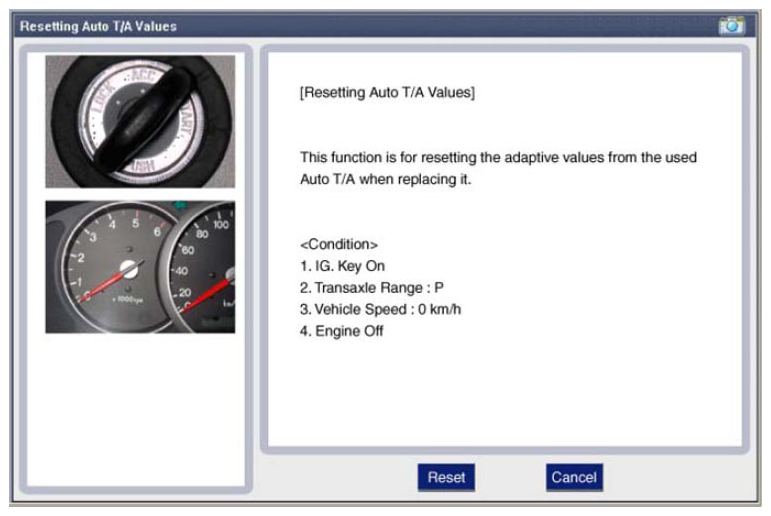

  Fig 1: Display - Resetting Auto T/A Values Screen
  Courtesy of KIA MOTORS AMERICA, INC.

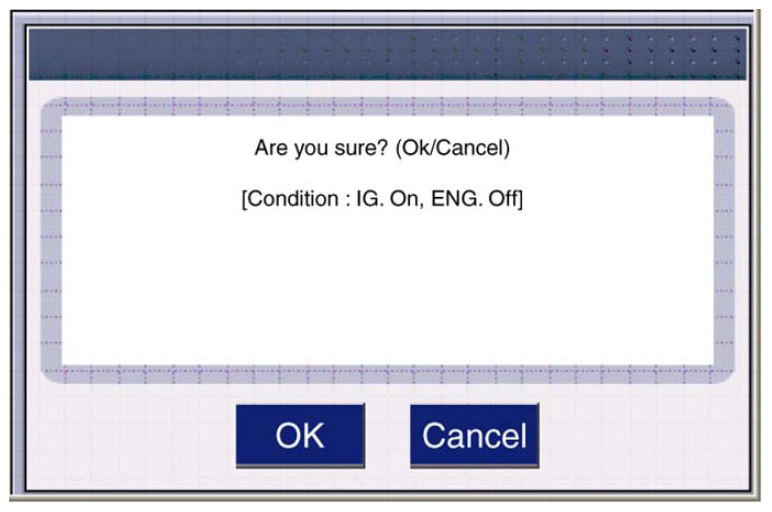

  Fig 2: Display - Confirmation Message Resetting Auto T/A Values
  Courtesy of KIA MOTORS AMERICA, INC.

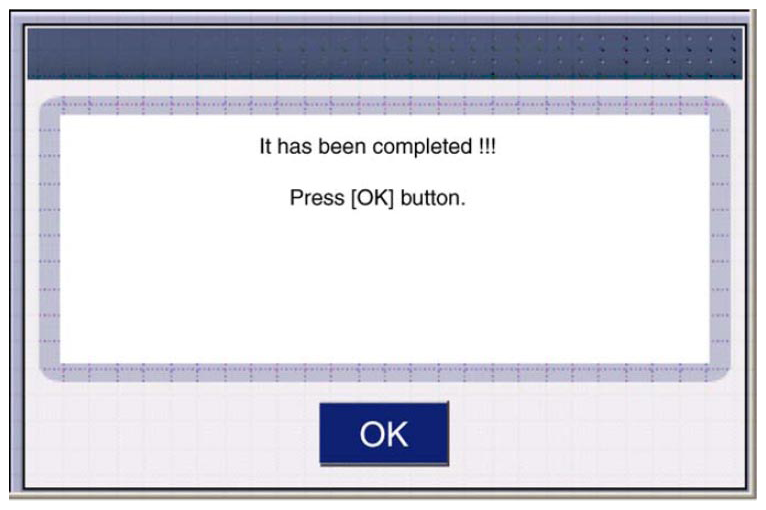

  Fig 3: Display - Resetting Auto T/A Values Completed
  Courtesy of KIA MOTORS AMERICA, INC.
- Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup. (Refer to TCM LEARNING .
