Engine Control System Diagnosis (3 Of 3) - 1.6L
>>
DTC P2251: O2 Sensor Reference Ground Circuit/Open (Bank 1 Sensor 1)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

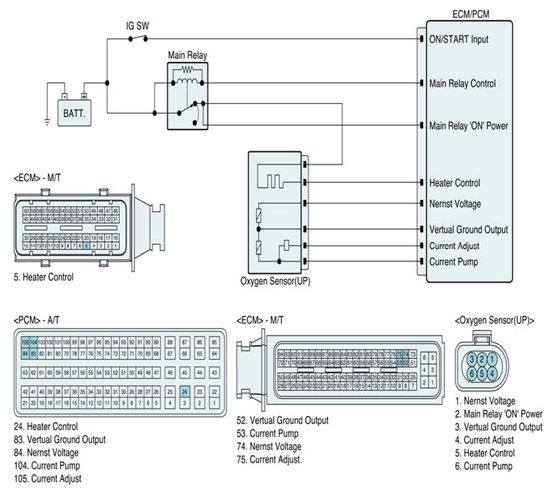

Fig 1: Oxygen Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
