Floor Console Replacement

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the knob (A).

Fig 1: Identifying Knob
Courtesy of HYUNDAI MOTOR CO.
Remove the under cover (A).

Fig 2: Identifying Under Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 3: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 4: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.

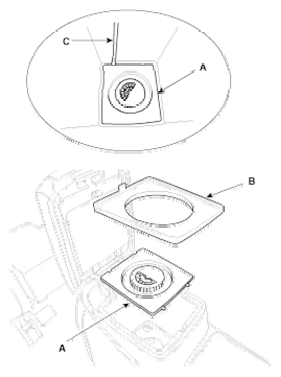

Remove the mat (B).
Using the screwdriver, remove the cool box cover (A).

Fig 5: Identifying Cool Box Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the console extensor cover.

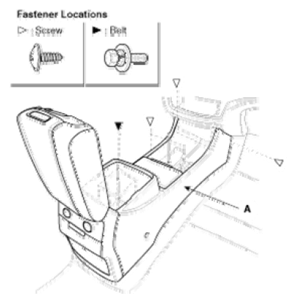

After loosening the console mounting screws, remove the floor console assembly (A).

Fig 6: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
