Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Remove the airbag module mounting bolts (2 EA).

Fig 1: Identifying Airbag Module Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring fixing clip (C), and then release the connector locking pin to disconnect the driver airbag module connector (B).

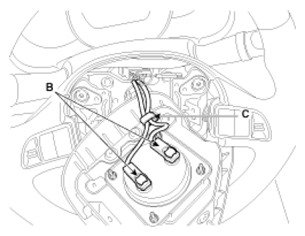

Fig 2: Identifying Wiring Fixing Clip & Driver Airbag Module Connectors
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
Remove the steering wheel and steering wheel column cover. Refer to STEERING COLUMN AND SHAFT .

Fig 3: Identifying Steering Wheel Column Cover Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the clock spring and horn connector, then remove the clock spring.

Fig 4: Identifying Clock Spring & Horn Connector
Courtesy of KIA MOTORS AMERICA, INC.
