Repair Procedures: Installation

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse of removal.

NOTE:

Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
Smear and cover splines (B) with molybdenum type high pressure grease.
TECHLUBE MEGAMAX - ALPHA OR EQUIVALENT

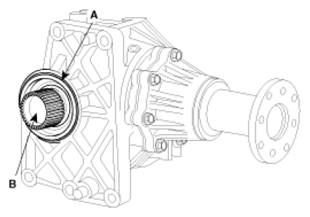

Fig 1: Identifying O-Ring & Splines
Courtesy of KIA MOTORS AMERICA, INC.
Install the propeller shaft near runout marking (Transfer assembly 1 ea (A), propeller shaft 1 ea (B).

Fig 2: Identifying Propeller Shaft Runout Markings

Courtesy of KIA MOTORS AMERICA, INC.
