Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad passenger's garnish (A).
Refer to "CRASH PAD ".

Fig 1: Identifying Crash Pad Passenger's Garnish
Courtesy of KIA MOTORS AMERICA, INC.

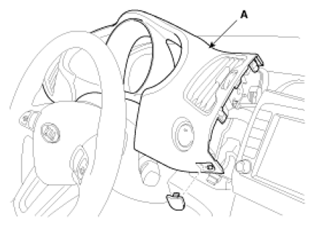

Disconnect the connectors and remove the cluster fascia panel (A).
Refer to "CRASH PAD ".

Fig 2: Identifying Cluster Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

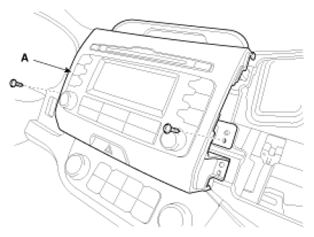

Remove the center fascia panel (A) after loosening the mounting screw (2 EA).

Fig 3: Identifying Center Fascia Panel & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A) installed on the center fascia panel.

Fig 4: Identifying Center Fascia Panel Connector
Courtesy of KIA MOTORS AMERICA, INC.

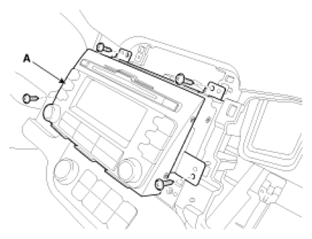

Remove the audio assembly (A) after loosening the mounting screw (4 EA).

Fig 5: Identifying Audio Assembly & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

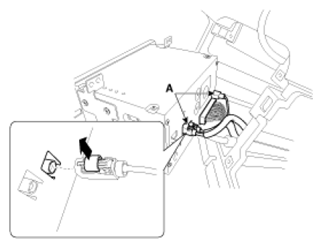

Disconnect the audio connectors and cable (A), then remove the audio unit completely.

Fig 6: Disconnecting Audio Connectors & Cable

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Lift the connector locking clip to the arrow direction, disconnect the connector.

When assembling, install the connector and connector locking clip.

CAUTION:

If CD does not eject, don't try to remove it.
The player may be damaged.
Therefore, contact a service shop for repairs.
