Chart 1
WARNING:
This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

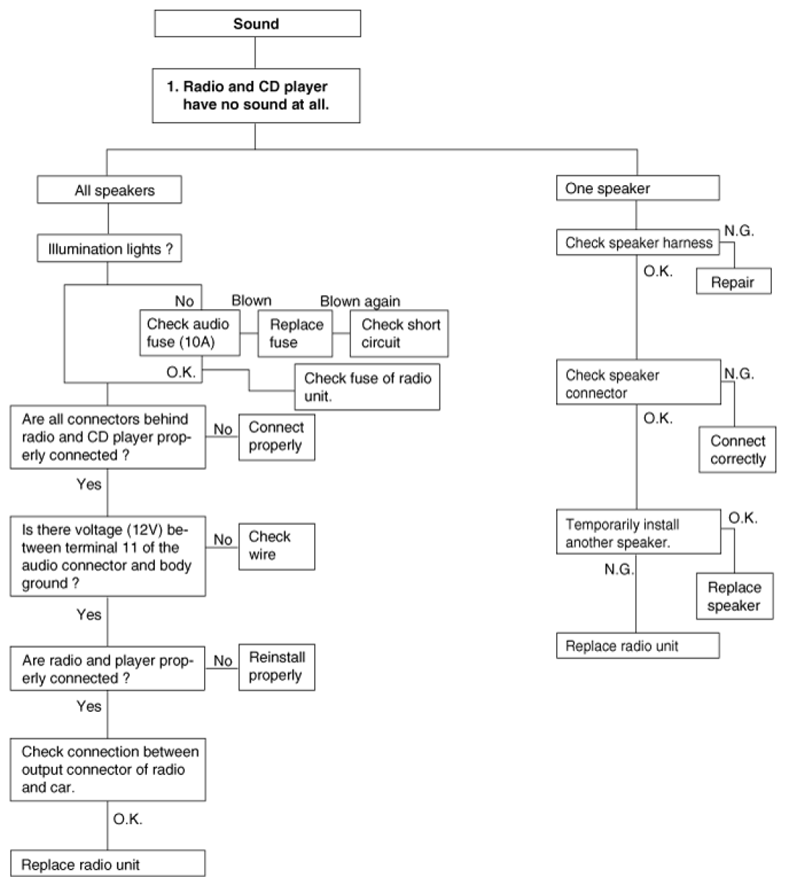

Fig 1: Customer Complaint Troubleshooting Flow Chart 1 (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

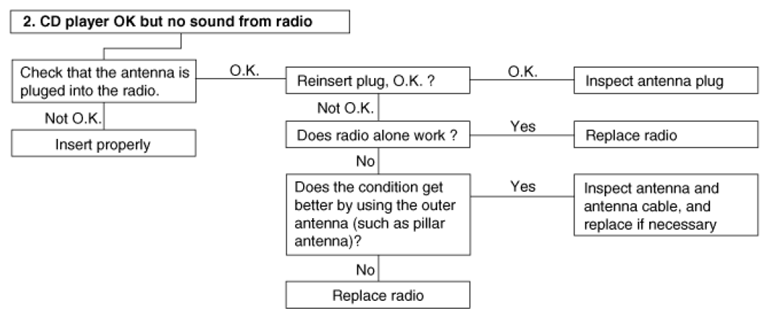

Fig 2: Customer Complaint Troubleshooting Flow Chart 1 (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
