Initial Inspection and Diagnostic Overview

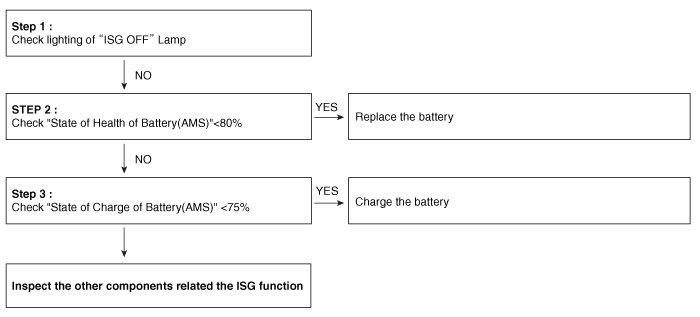

Troubleshooting

If ISG function is not operated, check the related DTC codes.

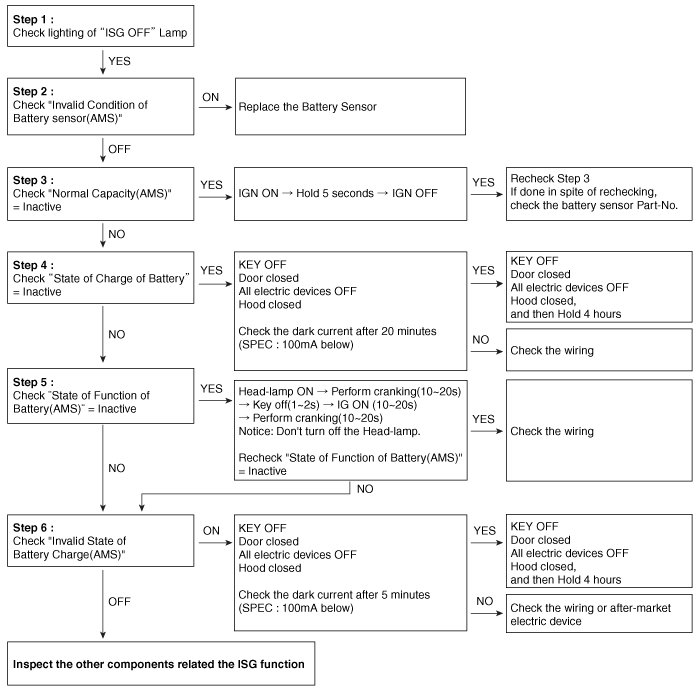

If the ISG function is not operated in spite of no DTC, inspect the ISG system as below.The GDS tool shows the current data about the ISG function for inspection.

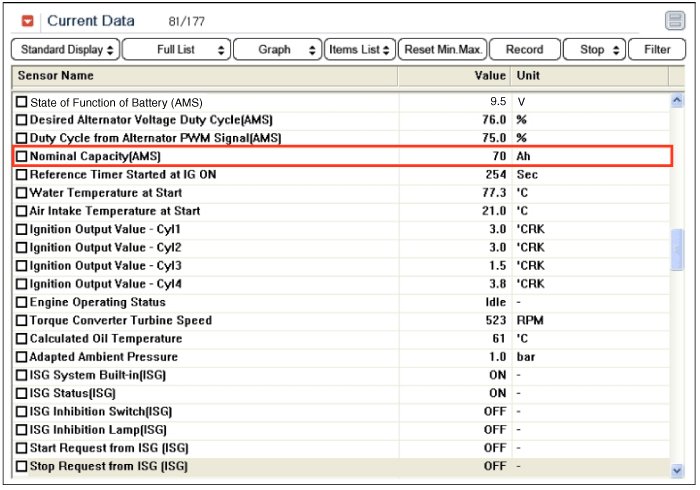

[Battery sensor and calibration value inspection]

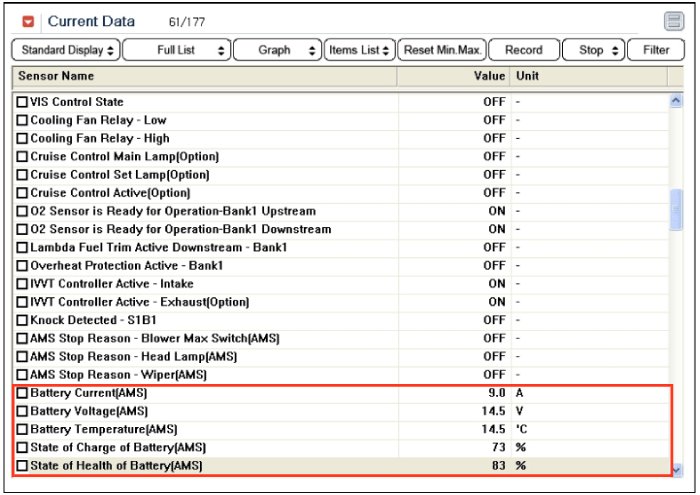

[Battery status inspection]

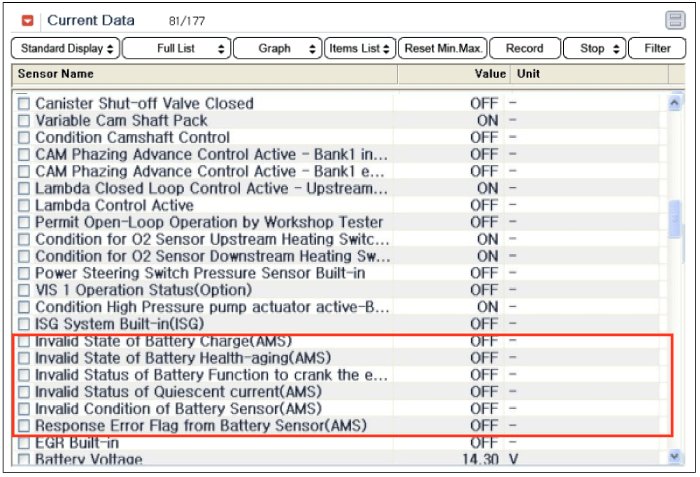

Current Data
