Fuse: Locations

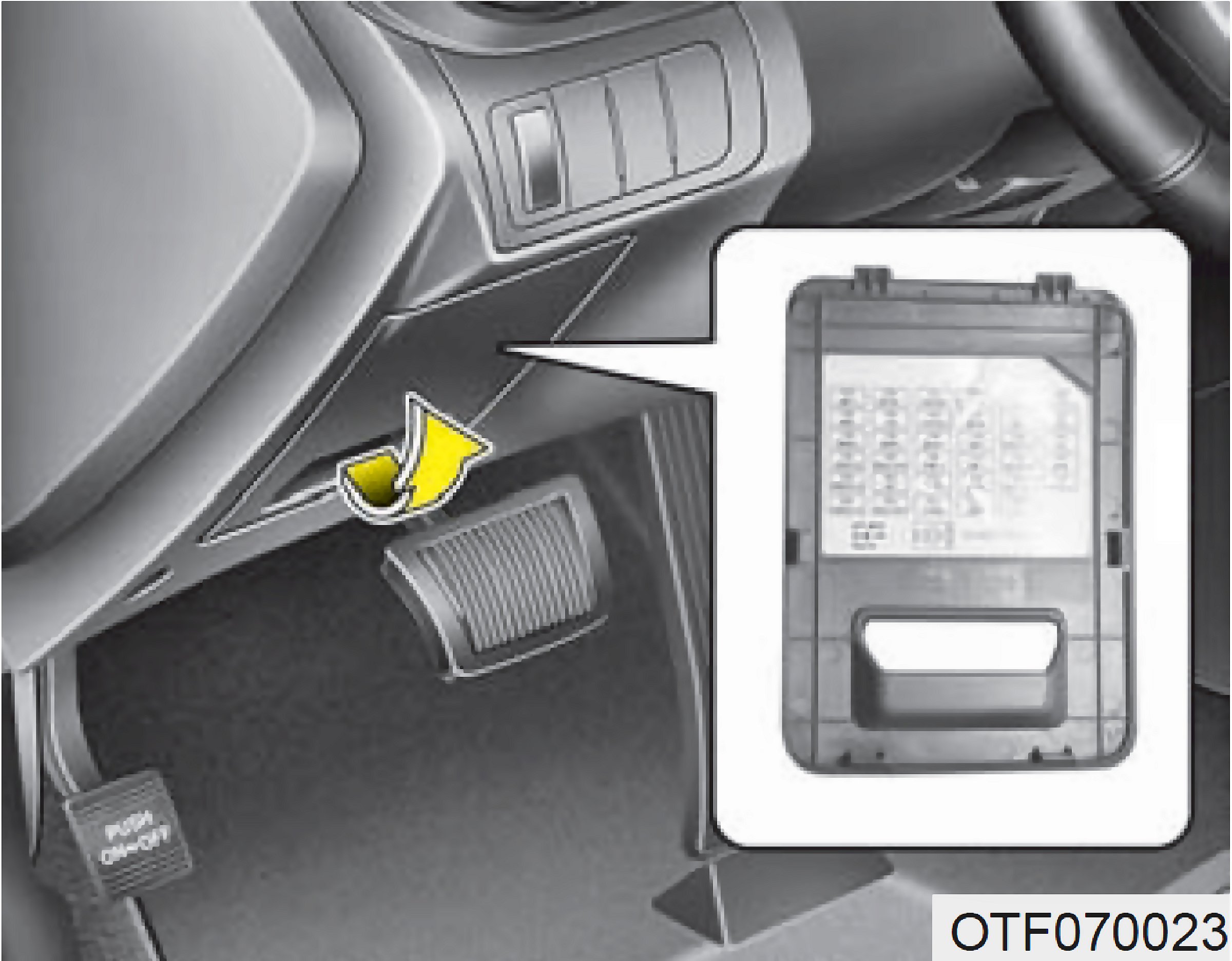

Instrument Panel Fuse Panel:

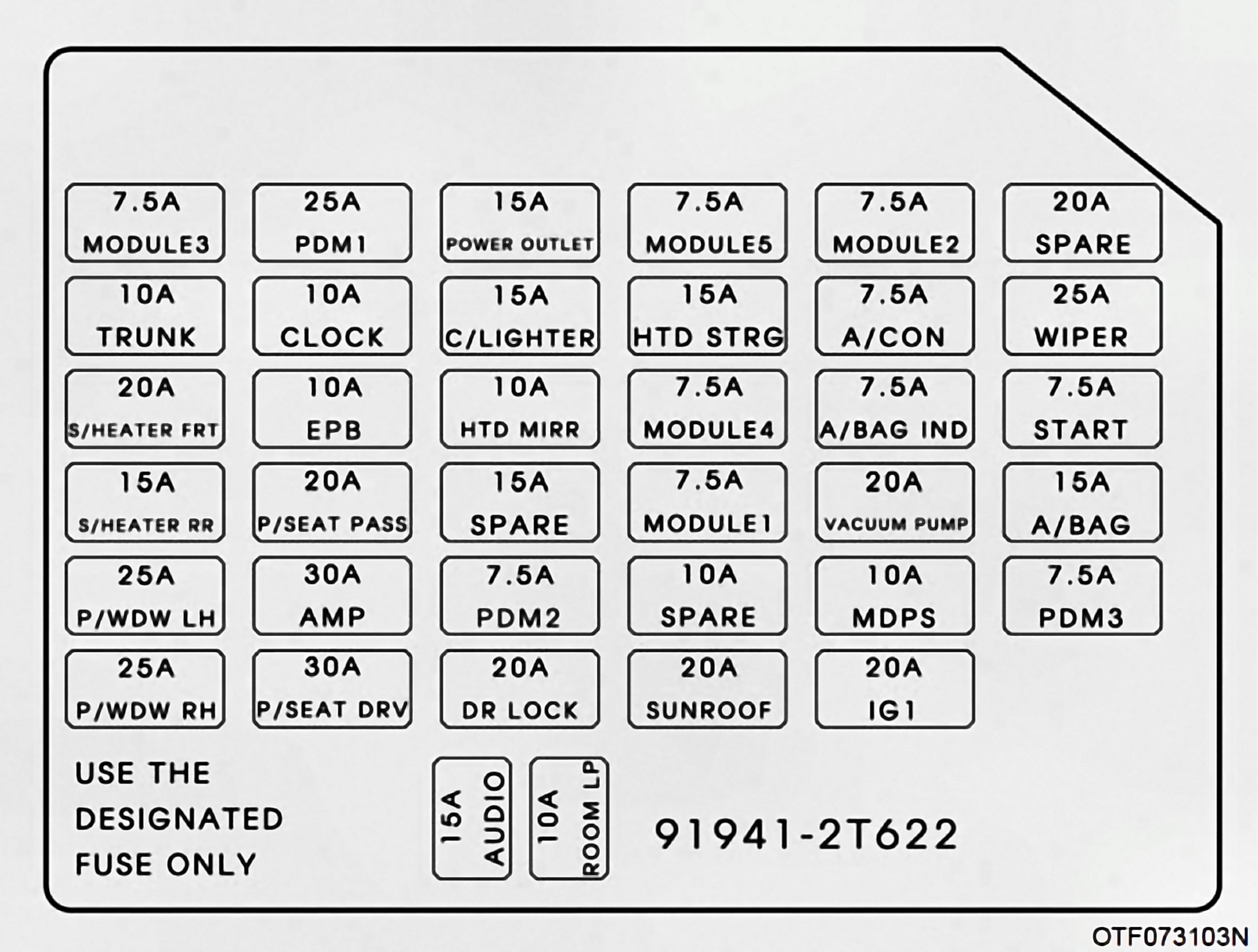

Instrument Panel Fuse Locations:

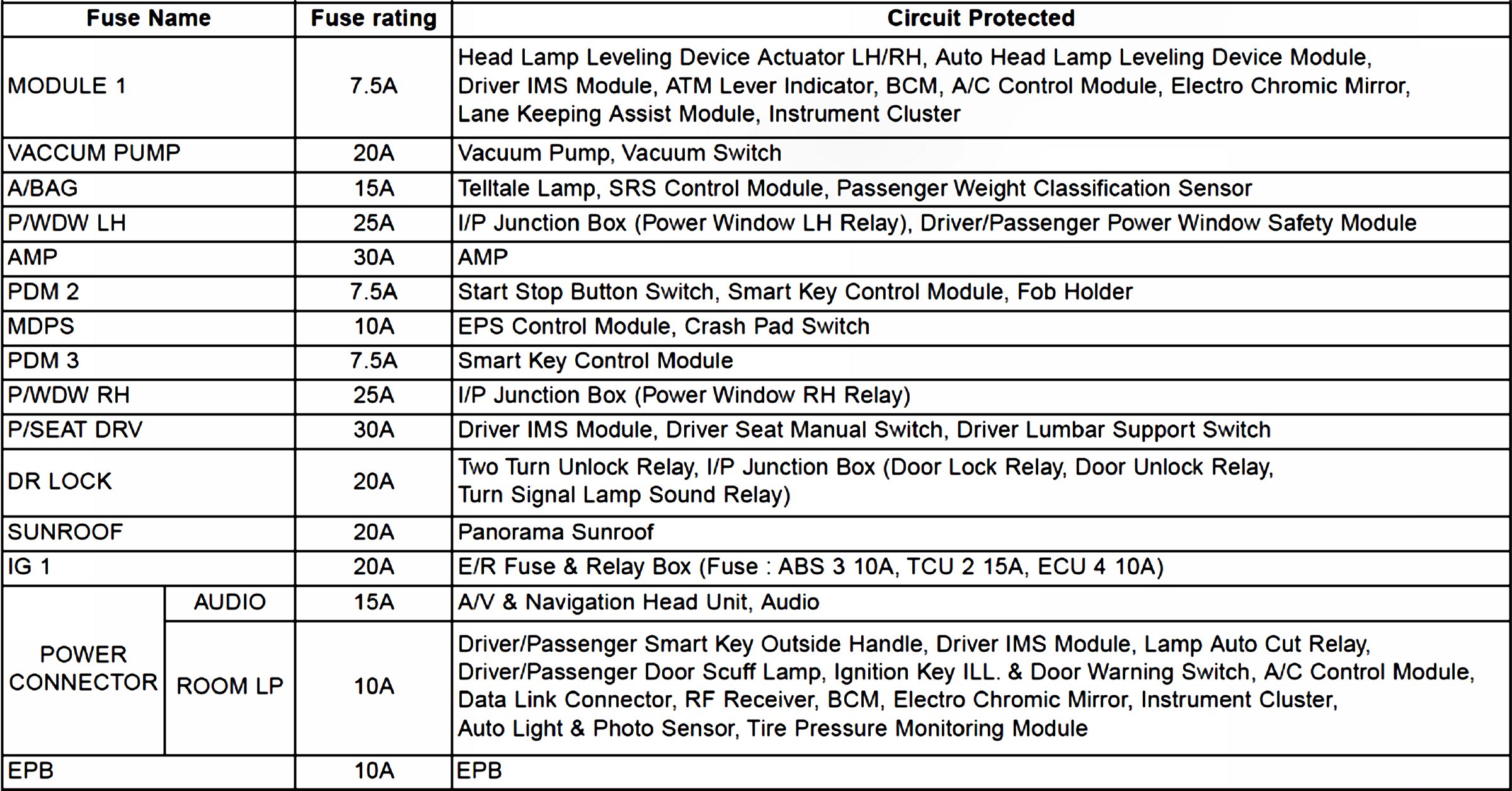

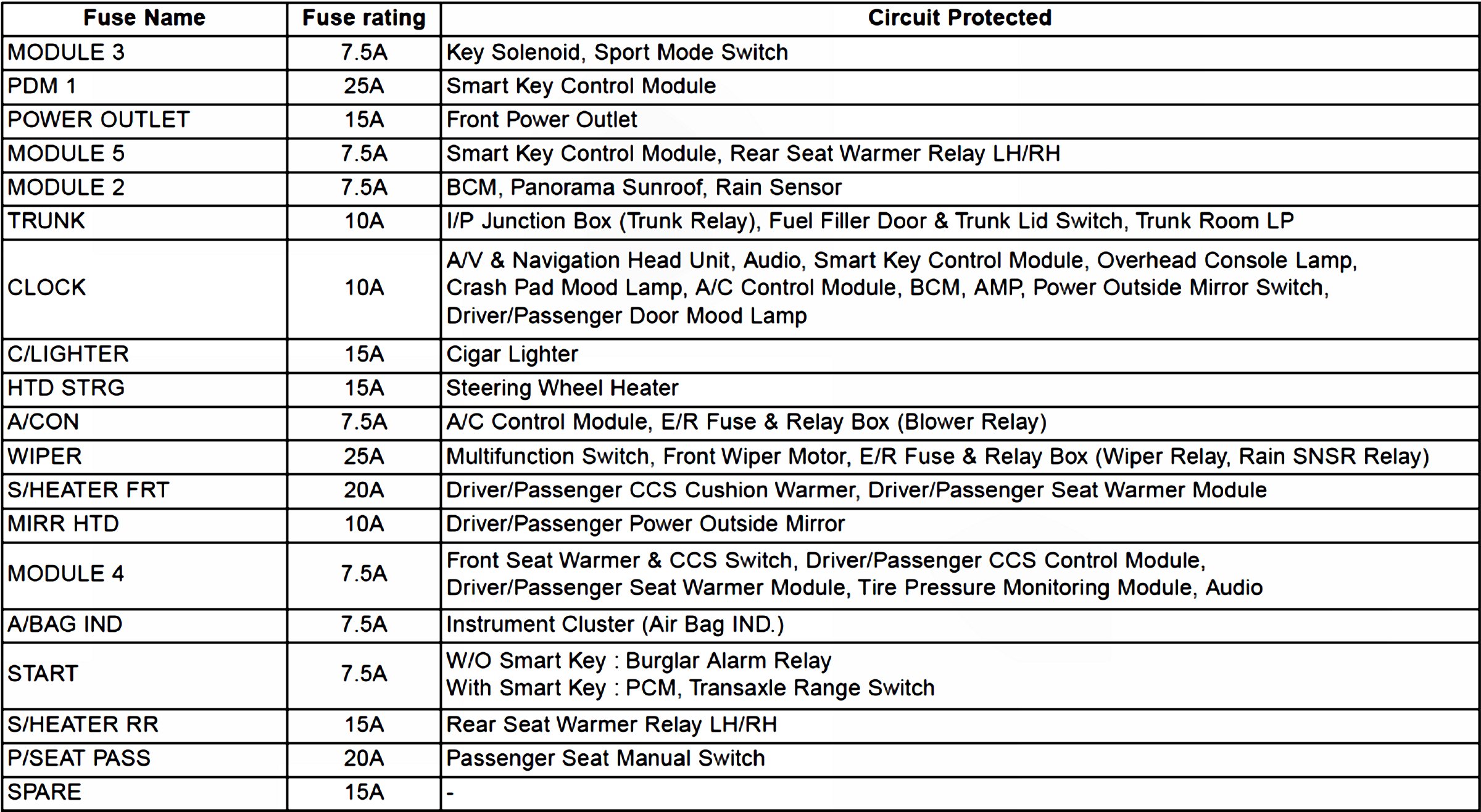

Instrument Fuse Panel Part 1:

Instrument Fuse Panel Part 2:

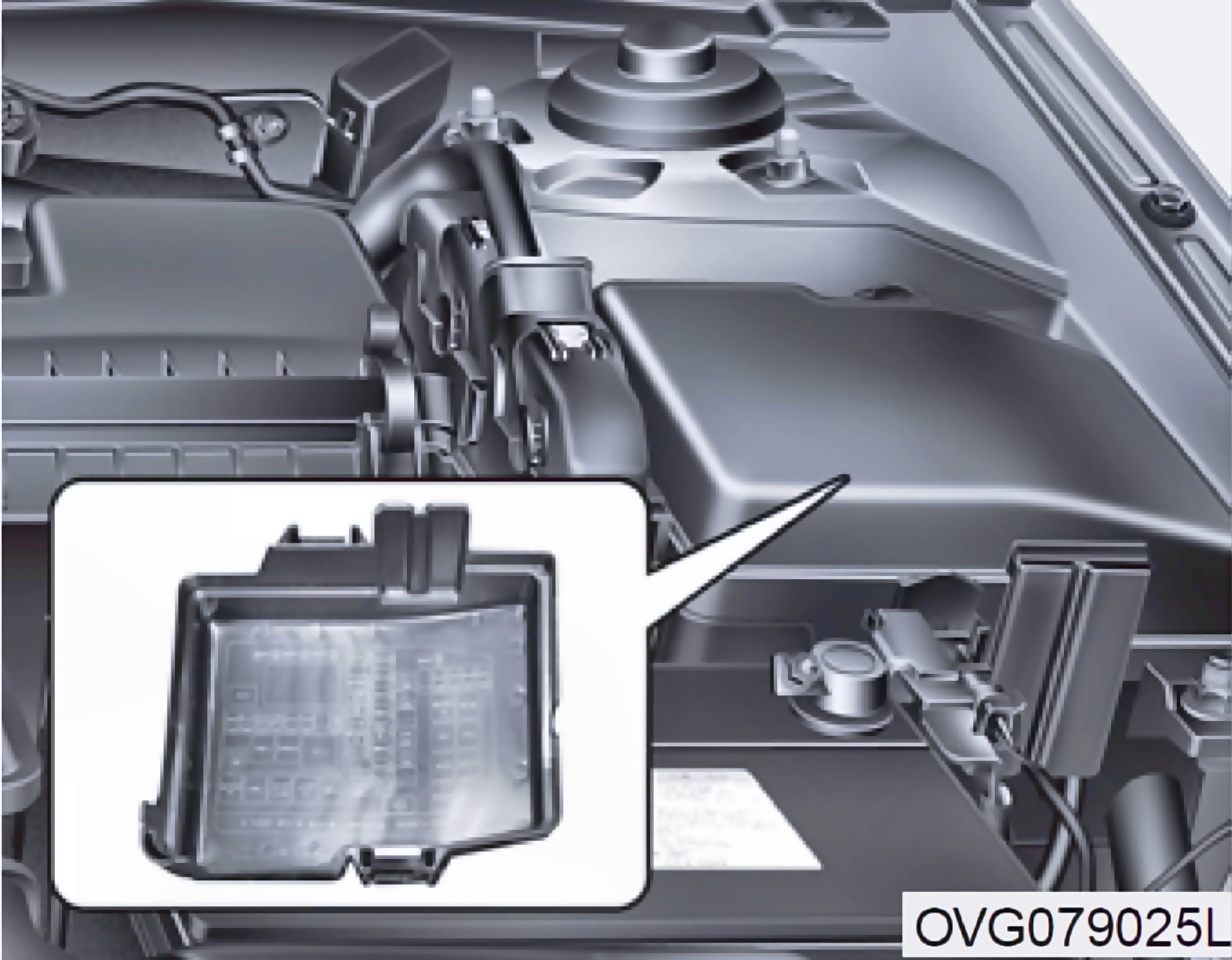

Engine Compartment Fuse Panel:

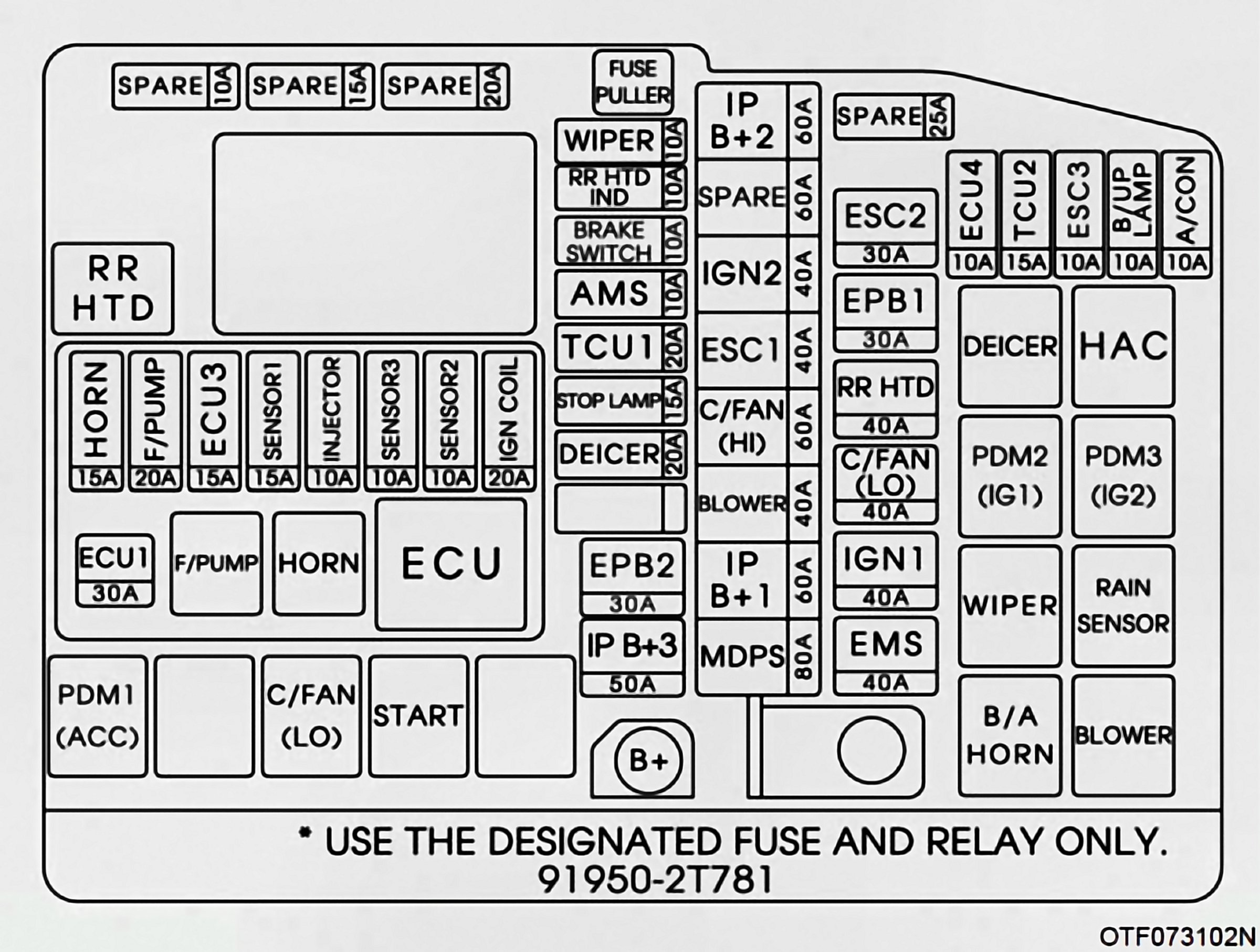

Engine Compartment Fuse And Relay Locations:

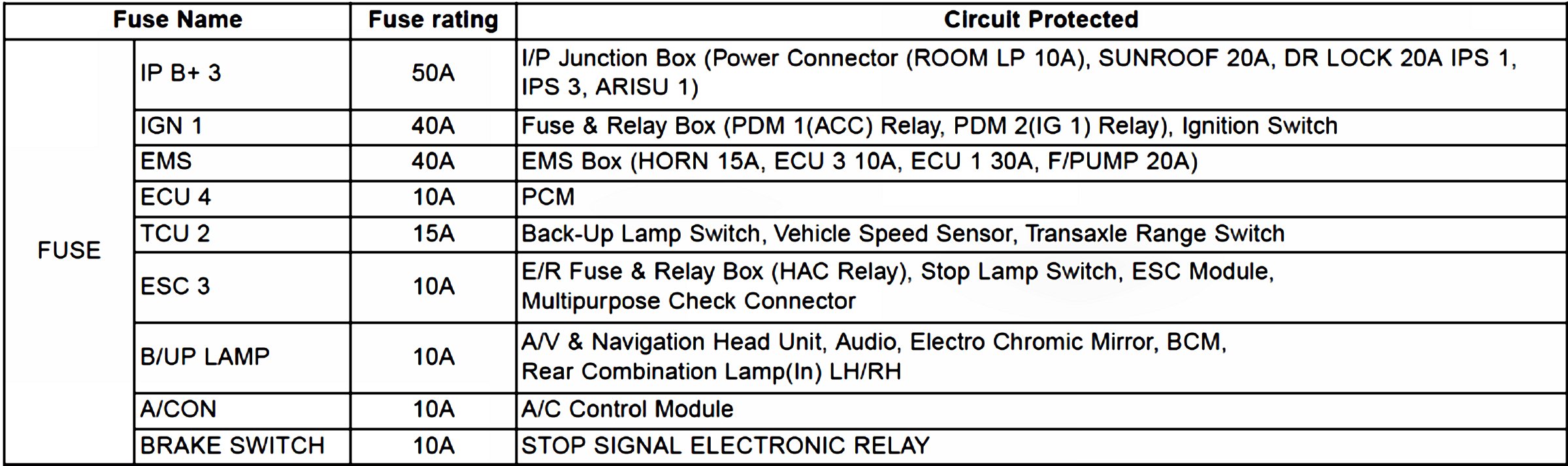

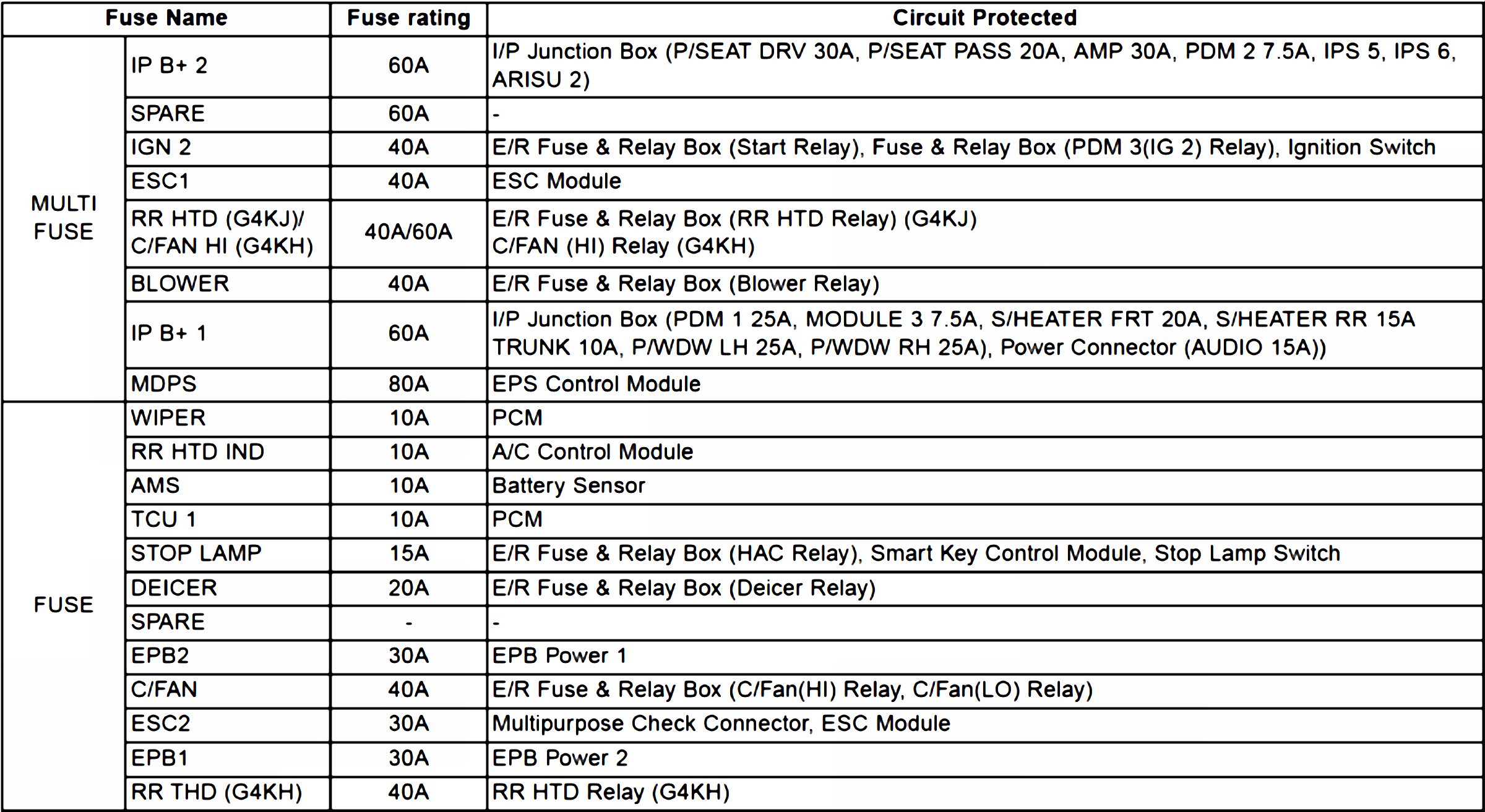

Engine Compartment Fuse Panel Part 1:

Engine Compartment Fuse Panel Part 2:

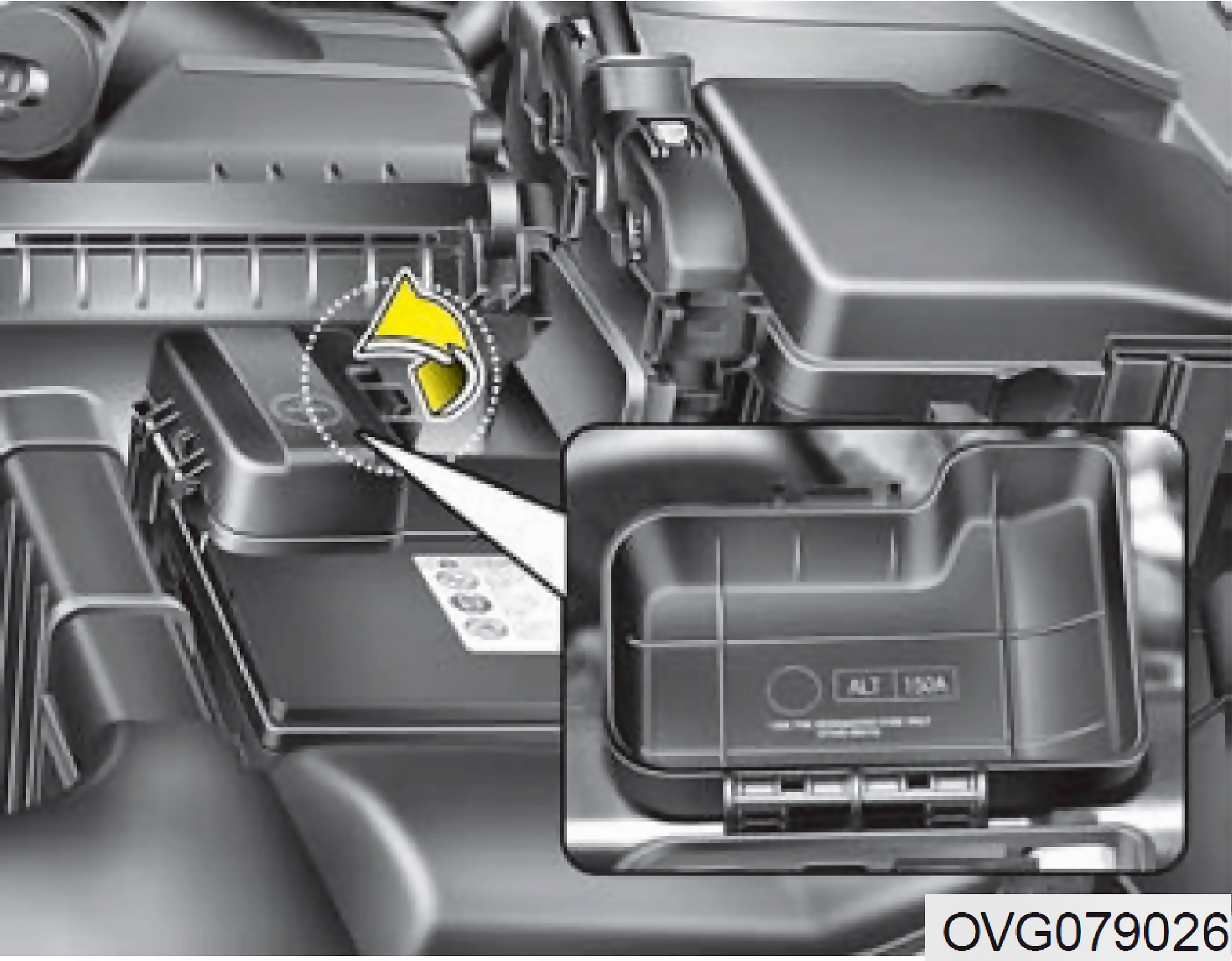

Engine Room (Battery Terminal Cover):

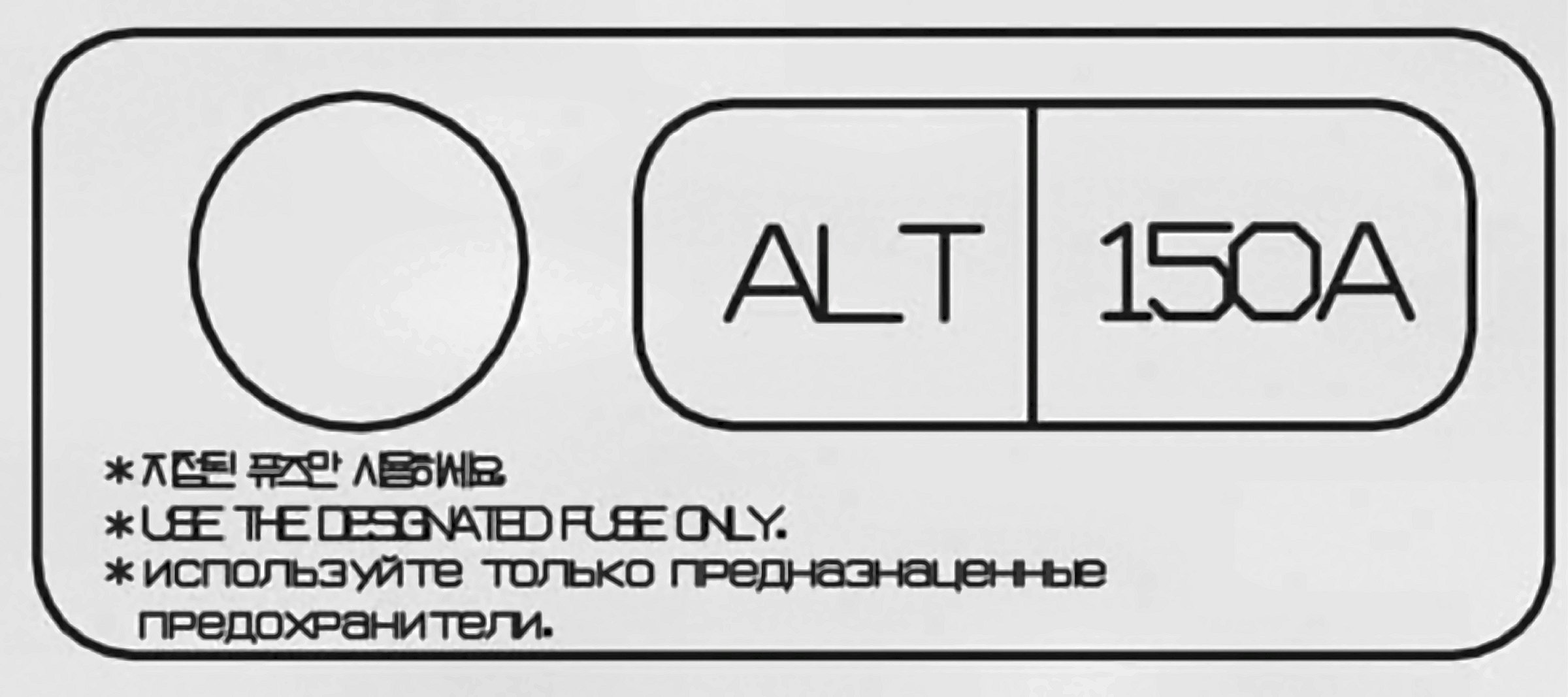

Battery Terminal:

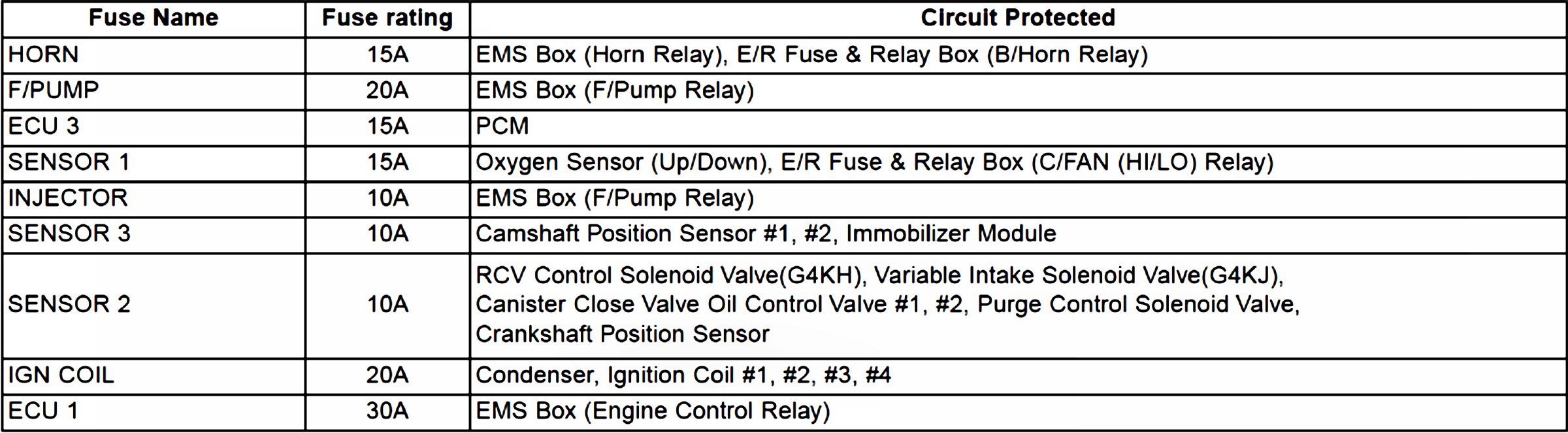

Engine Compartment Fuse Panel (EMS BOX):
