Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

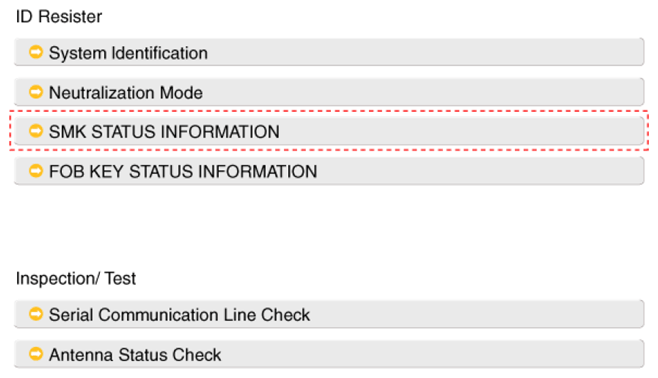

Fig 1: Scantool Display - SMK Status Information
G07380664Courtesy of KIA MOTORS AMERICA, INC.

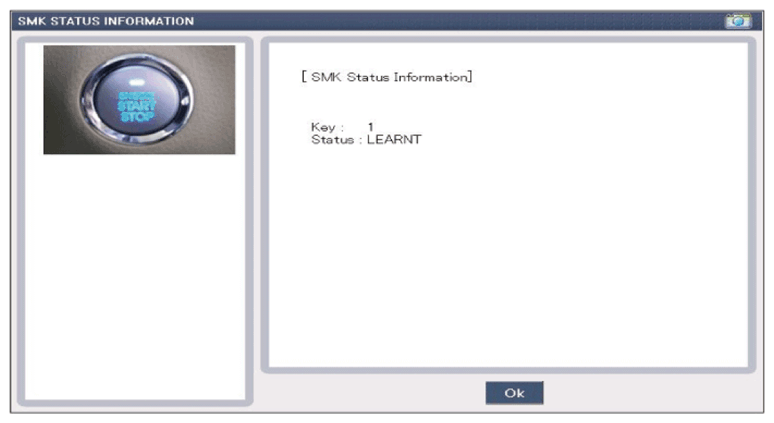

Fig 2: Scantool Display - SMK Status 1 Key Learnt
G07380665Courtesy of KIA MOTORS AMERICA, INC.
