Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Power Inspection
1. IG "ON" & ENG "OFF".
2. Measure the power voltage of "Rear left side sensor" at SJB(Smart Junction Box).
  Specification: Approx. 8.4V

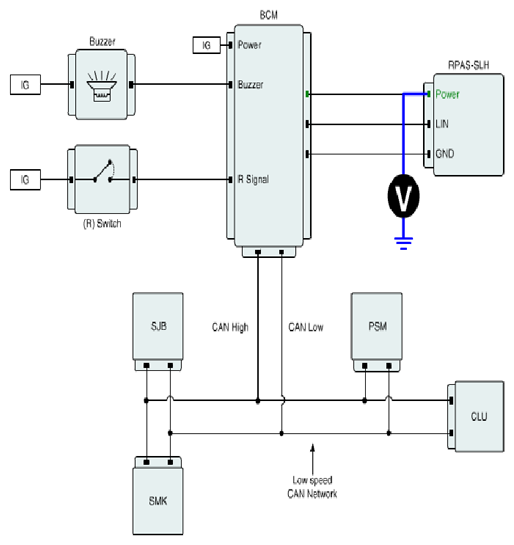

  Fig 1: Measuring Power Voltage Of Rear Left Side Sensor At (Smart Junction Box)
  Courtesy of KIA MOTORS AMERICA, INC.

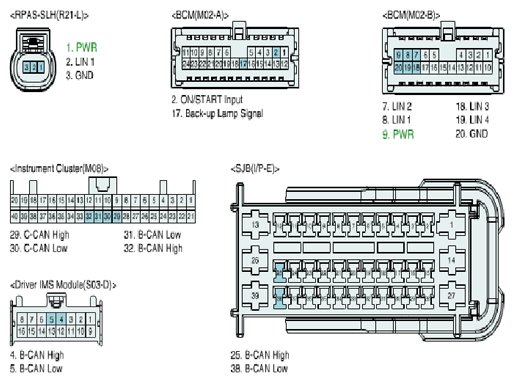

  Fig 2: Identifying BCM Connector Terminals End View
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the signal output normal?
  YES
  - Go to " 2 Ground Inspection" procedure.
  NO
  - Thoroughly check fuses or connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
    If the problem is corrected, replace the component and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Ground Inspection
1. IG "ON" & ENG "OFF".
2. Measure voltage between power voltage of "Rear left side sensor" and ground terminal of "Rear left side sensor" at SJB (Smart Junction Box).
  Specification: Approx. 8.4V

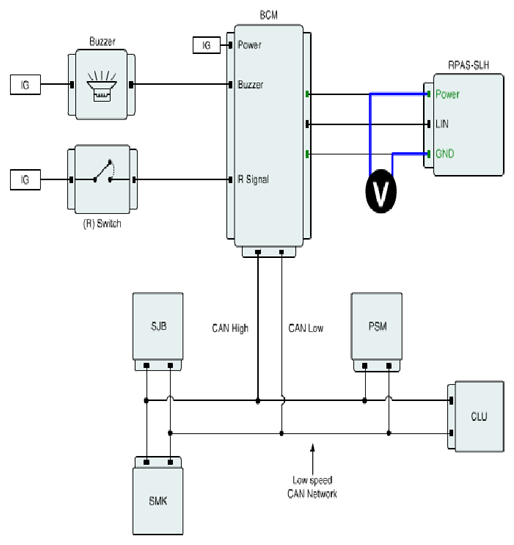

  Fig 3: Measuring Voltage Between Power Voltage Of Rear Left Side Sensor And Ground Terminal Of Rear Left Side Sensor At (Smart Junction Box)
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 4: Identifying BCM Connector Terminals End View
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the signal output normal?
  YES
  - Go to 'INSPECTION OF LIN COMMUNICATION LINE between RPAS-SLH(Rear left side sensor) and BCM [RPAS(Rear Parking Assist Module)]'
  NO
  - Check a circuit between RPAS-SLH(Rear left side sensor) and chassis ground and poor connection. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
