Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

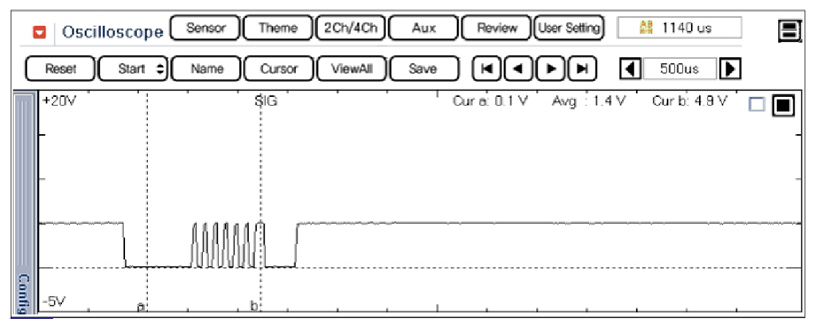

Fig 1: Display - Rear Center Left Sensor Signal Waveform (When Obstacles Detected By Sensor At Shift Lever R After IGN1 ON)
Courtesy of KIA MOTORS AMERICA, INC.

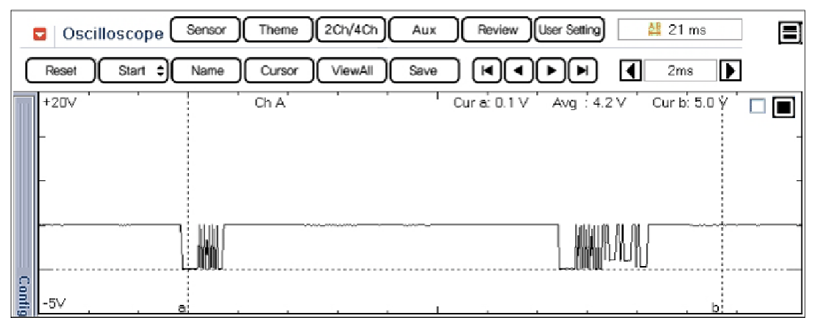

Fig 2: Display - Rear Center Left Sensor Signal Waveform (When Obstacles Detected By Sensor At Shift Lever R After IGN1 ON)
Courtesy of KIA MOTORS AMERICA, INC.
