Signal Waveform & Data

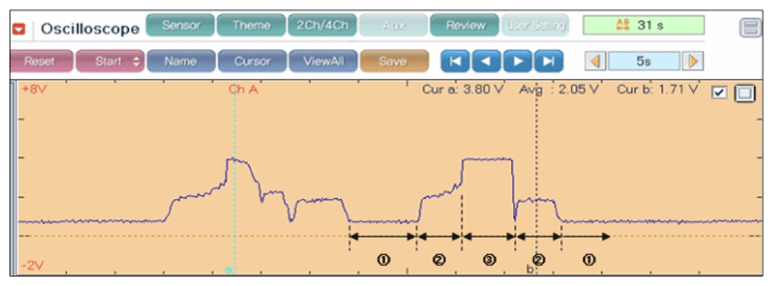

Fig 1: Screen Display - Power Steering Halt Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

INTERVAL (1) : The signal at the Power Steering halt

INTERVAL (2) : The normal performance signal including Most of the range

INTERVAL (3) : The signal at the maximum steering angle.
