Signal Circuit Inspection

Check signal circuit voltage
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector.
3. IG key ON.
4. Measure voltage between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and chassis ground.
  Specification : 4.8V~5.1V

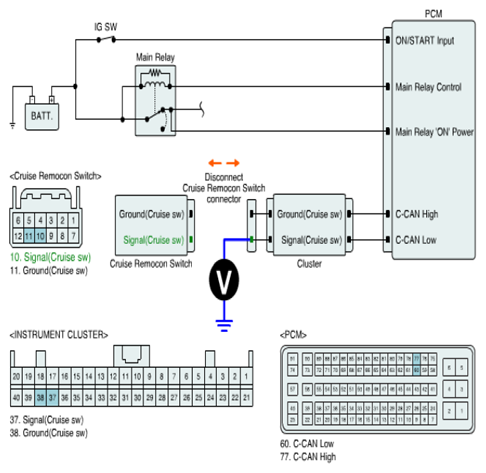

  Fig 1: Measuring Voltage Between Signal Terminal Of Cruise Remocon Switch Harness Connector & Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured value within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Go to "Check short in signal circuit " as follows.
Check short in signal circuit
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector and ECM connector.
3. Check resistance between 'Signal (Cruise sw)' terminal and 'Ground (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector.
  Specification : Infinite

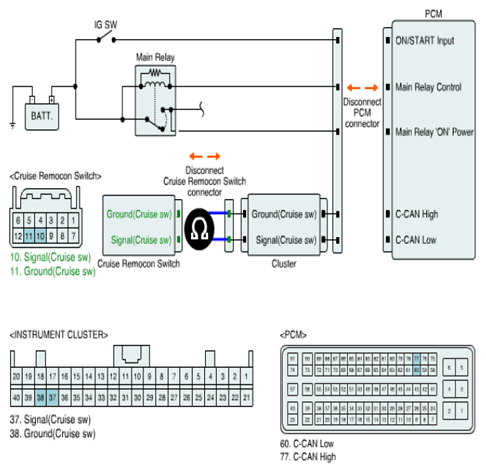

  Fig 2: Measuring Resistance Between Signal Terminal & Ground Terminal Of Cruise Remocon Switch Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured value within specification?
  YES
  - Go to "Check open in signal circuit " as follows.
  NO
  - Repair short in signal circuit, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check open in signal circuit
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector and Cluster connector.
3. Measure resistance between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Signal (Cruise sw)' terminal of PCM connector.
  Specification : Below 1.0Ω

  Fig 3: Measuring Resistance Between Signal Terminal Of Cruise Remocon Switch Harness Connector & Signal Terminal Of PCM Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured value within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair open between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Signal (Cruise sw)' terminal of PCM connector, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
