Multifunction Switch (Audio Remote Control) Connector End View (M01-R)

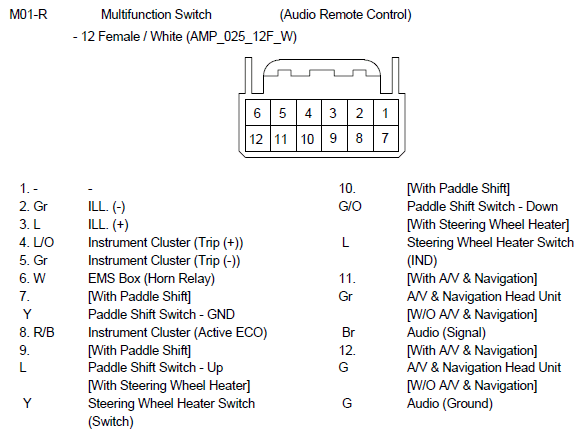

Fig 1: Multifunction Switch (Audio Remote Control) Connector End View (M01-R)
Courtesy of KIA MOTORS AMERICA, INC.
