SRS Control Module Connector End View (M60)

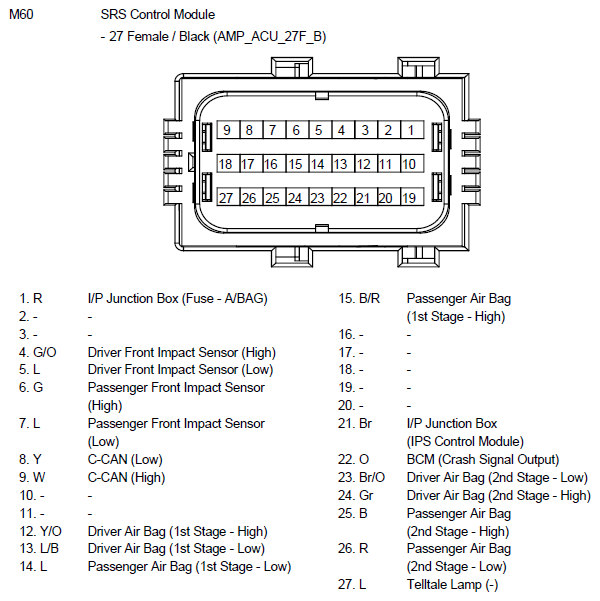

Fig 1: SRS Control Module Connector End View (M60)
Courtesy of KIA MOTORS AMERICA, INC.
