Diagnostic Circuit Diagram

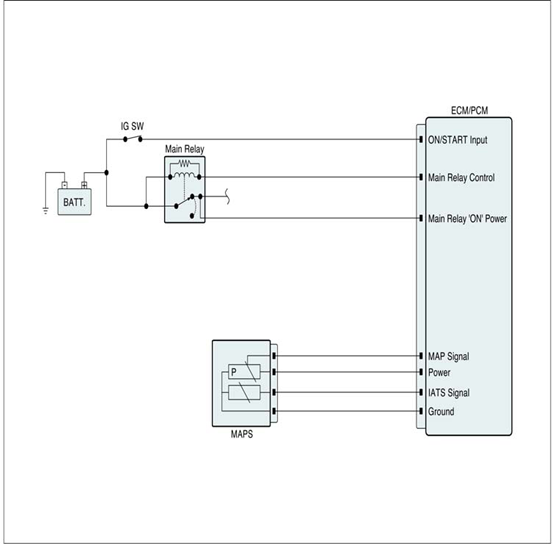

Fig 1: MAPS - Circuit Diagram
G08324506Courtesy of KIA MOTORS AMERICA, INC.

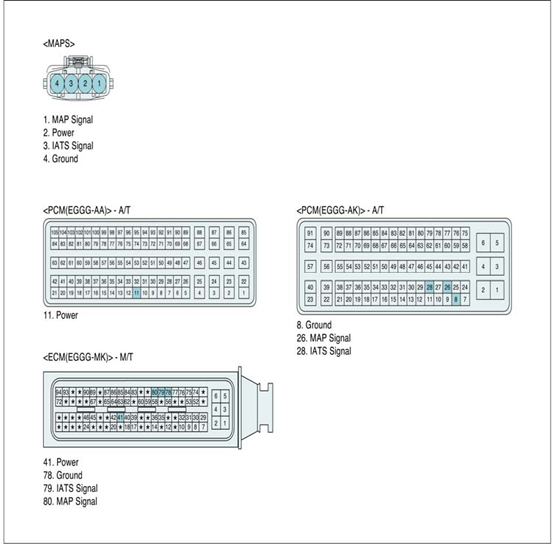

Fig 2: MAPS Connector Terminals
G08324507Courtesy of KIA MOTORS AMERICA, INC.
