Diagnostic Circuit Diagram

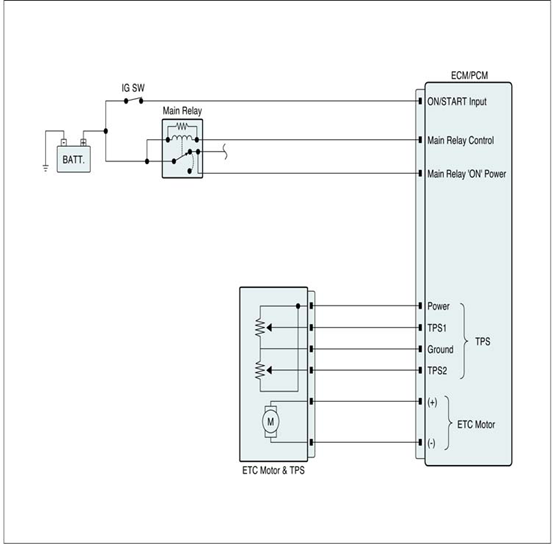

Fig 1: ETC Motor And TPS - Circuit Diagram
G08324567Courtesy of KIA MOTORS AMERICA, INC.

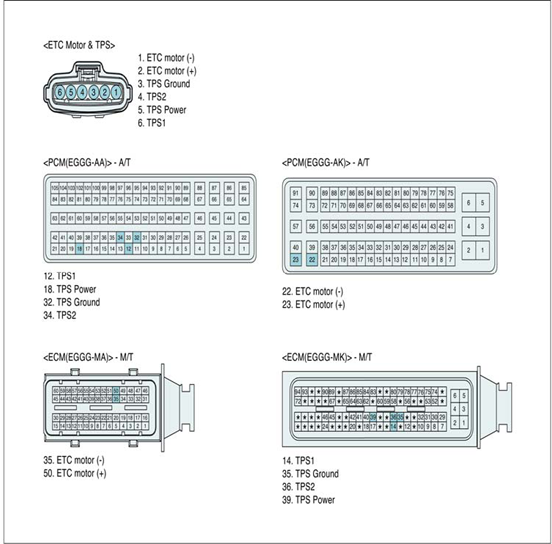

Fig 2: Identifying ETC Motor And TPS Connector Terminals
G08324568Courtesy of KIA MOTORS AMERICA, INC.
