Monitor GDS Data

  1. Connect GDS to DLC(Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Monitor "Barometic pressure" parameter on GDS

    Specification:  Approx. 1 atm is displayed

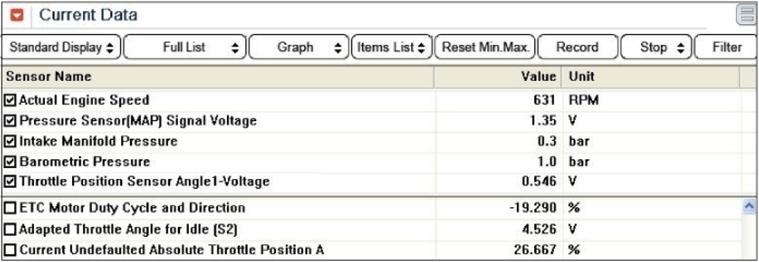

    Fig 1: Display - Monitor Barometic Pressure Parameter On GDS
    G08325213Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "Barometic pressure" parameter displayed correctly?

    YES

    Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
