Repair Procedures: Adjustment

Adjusting method for T/M control cable

1. Set room side lever and T/M side lever to "N" position.
2. Connect room side lever and shift cable.
3. Connect T/M side lever to cable in a following orders.
   1. Push cable (A) lightly to "F" direction shown to eliminate FREE PLAY of cable after mounting the nut (B) lightly.

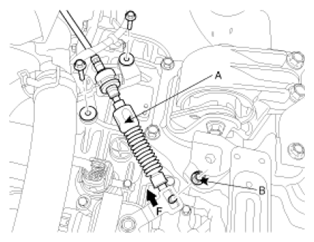

      Fig 1: Locating T/M Control Cable And Nut

      Courtesy of KIA MOTORS AMERICA, INC.
   2. Tighten adjusting nut (B).

      Tightening torque:

      7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

4. After adjusting according to (2)-(4). Check to be sure that this part operates surely at each range of T/M side corresponding to each position of room lever.
