Diagnostic Circuit Diagram

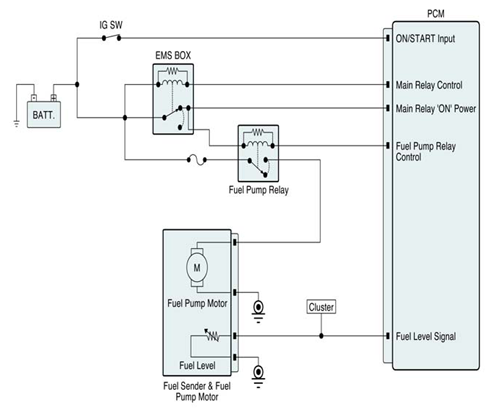

Fig 1: Fuel Pump Motor - Circuit Diagram
G08334421Courtesy of KIA MOTORS AMERICA, INC.

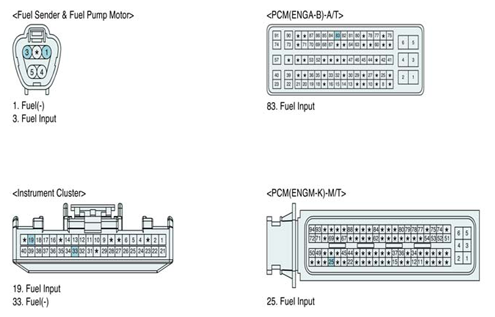

Fig 2: Identifying Fuel Sender And Fuel Pump Motor Connectors
G08334422Courtesy of KIA MOTORS AMERICA, INC.
