Components and Components Location: Components

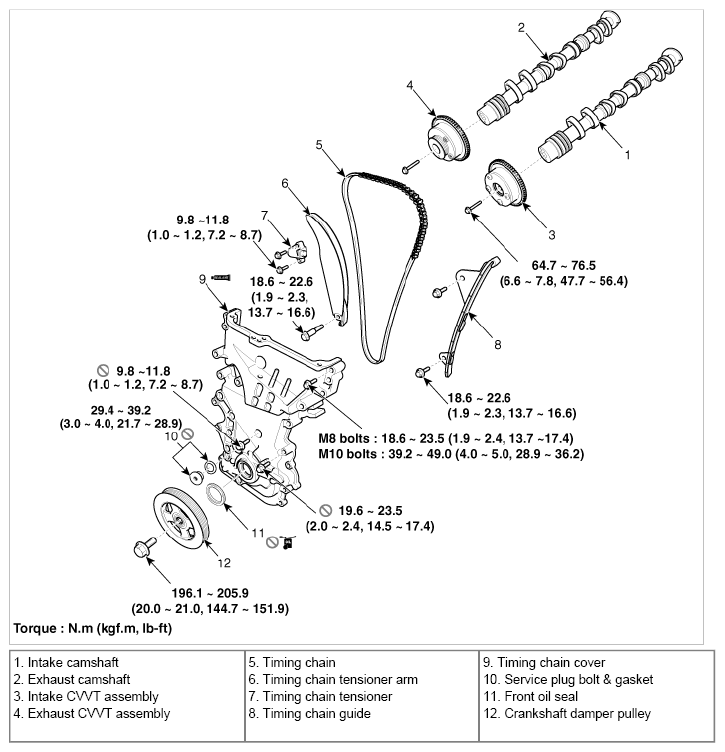

Fig 1: Timing Chain Replacement Components With Torque Specifications
G08329758Courtesy of KIA MOTORS AMERICA, INC.
