Repair procedures: Removal

Remove the shift lever assembly.
(Refer to " "SHIFT LEVER "" in this group)

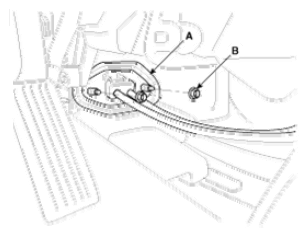

Remove the retainer (A) and nuts (B-2ea).

Fig 1: Identifying Retainer And Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the pin (A) and then remove the shift cable & select cable (B).

Fig 2: Identifying Shift Cable And Select Cable And Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable and select cable at cabin room.
