Signal Waveform & Data

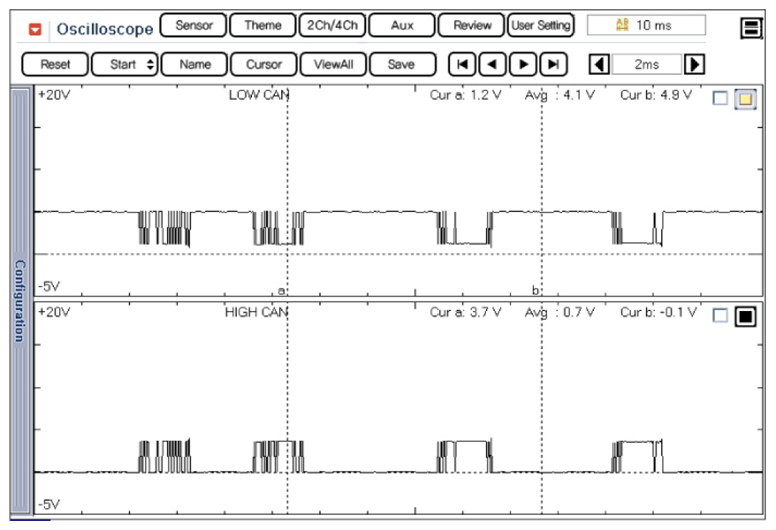

Fig 1: Display - Signal Waveform Of CAN Low And High
G08331957Courtesy of KIA MOTORS AMERICA, INC.

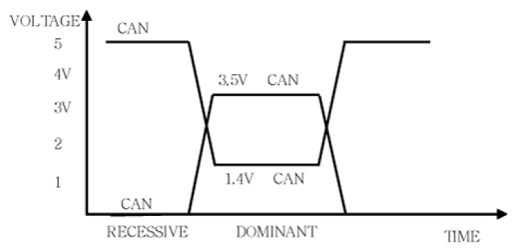

Fig 2: Display - CAN Bus Voltage Level (Low Speed CAN)
G08331958Courtesy of KIA MOTORS AMERICA, INC.
