(CVVT System Model)

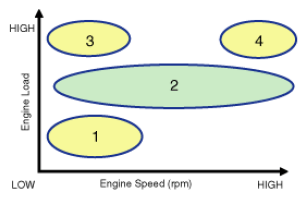

Fig 1: CVVT System Engine Load Versus Speed Graph (1 Of 2)

G08327908

Courtesy of KIA MOTORS AMERICA, INC.

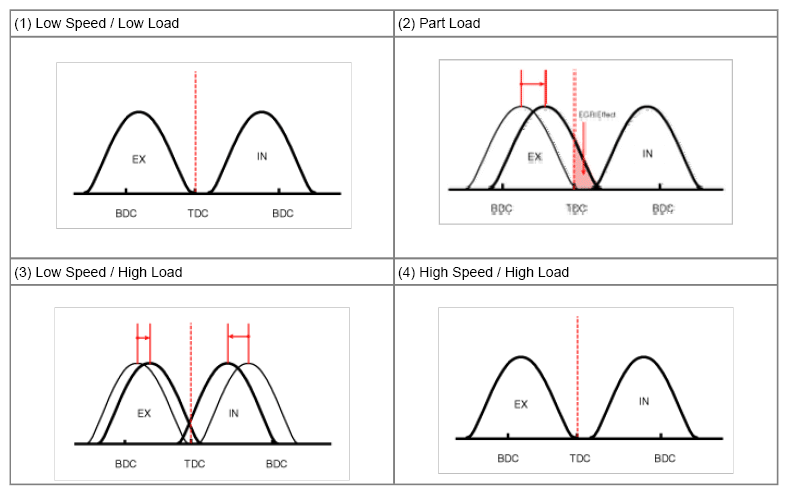

Fig 2: CVVT System Engine Load Versus Speed Graph (2 Of 2)

G08327909

Courtesy of KIA MOTORS AMERICA, INC.

Driving Condition	Exhaust Valve		Intake Valve
Driving Condition	Valve Timing	Effect	Valve Timing	Effect
(1) Low Speed/Low Load	Completely Advance	Valve Under-lap Improvement of combustion stability	Completely Retard	Valve Under-lap Improvement of combustion stability
(2) Part Load	Retard	Increase of expansion work Reduction of pumping loss Reduction of HC	Retard	Reduction of pumping loss
(3) Low Speed/High Load	Retard	Increase of expansion work	Advance	Prevention of intake back flow (Improvement of volumetric efficiency)
(4) High Speed/High Load	Advance	Reduction of pumping loss	Retard	Improvement of volumetric efficiency
