Monitor GDS Data

  1. Connect GDS to Data Link Connector(DLC)
  2. IG KEY "ON" & ENG "OFF".
  3. Monitor the "IATS" parameters on the GDS.

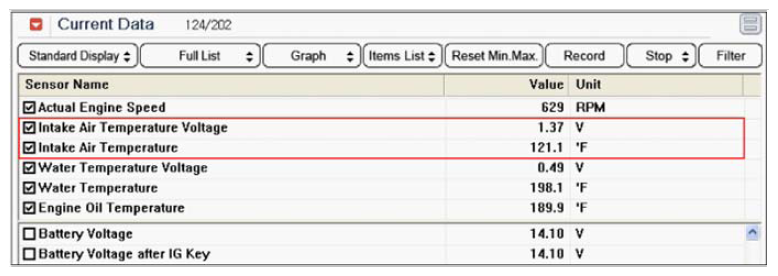

    Fig 1: Display - Monitor IATS Parameters On GDS
    G08332878Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "IATS" parameter displayed correctly?

    YES

    Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
