Monitor GDS Data

  1. Connect GDS to Data Link Connector(DLC)
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "TPS" parameters on the GDS.

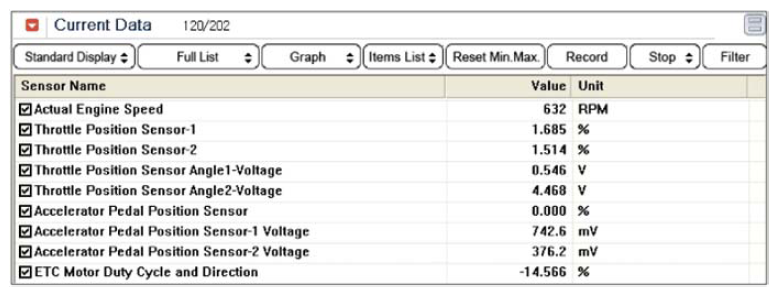

    Fig 1: Display - Monitor TPS Parameters On GDS
    G08332918Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
