Signal Waveform & Data

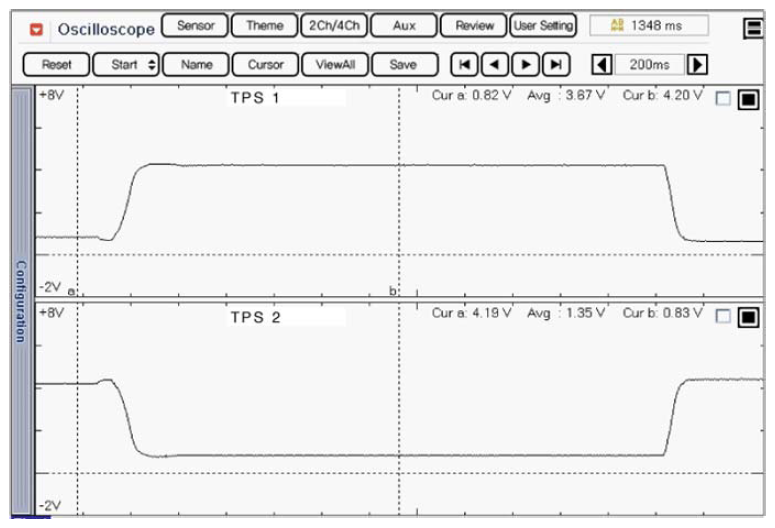

Fig 1: Display - TPS1 And TPS2 Signal Waveform (With No Accel Pedal Depressed Under IG On Condition)
G08332924Courtesy of KIA MOTORS AMERICA, INC.
